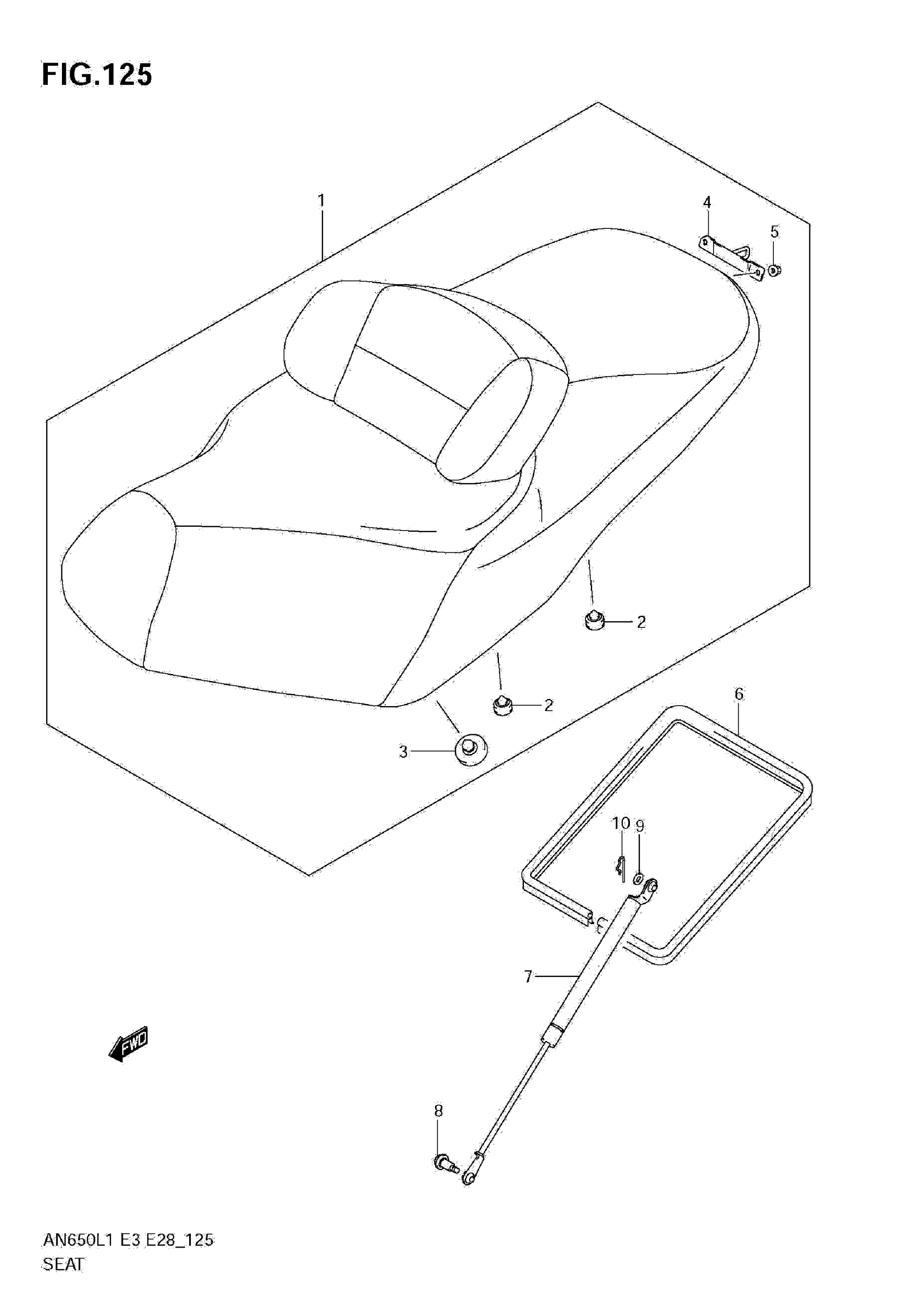

Suzuki AN650AL1 (2011) SEAT (AN650 L1 E3) Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-10G32-FC8.

45100-10G33-FC8

$1,440.42

2

CUSHION

09321-10002

$2.02

3

CUSHION

09321-12001

$6.22

4

STRIKER, SEAT LOCK

45210-10G00

$30.73

5

NUT

09159-06085

Unavailable

6

MOLDING, SEAT

45211-10G10

Unavailable

7

DAMPER ASSY,SEA This part replaces 45270-10G00.

45270-10G01

$98.23

8

BOLT (6X20.6)

09111-06097

Unavailable

9

WASHER

08322-0108B

$2.37

10

PIN

09385-08003

$1.87
