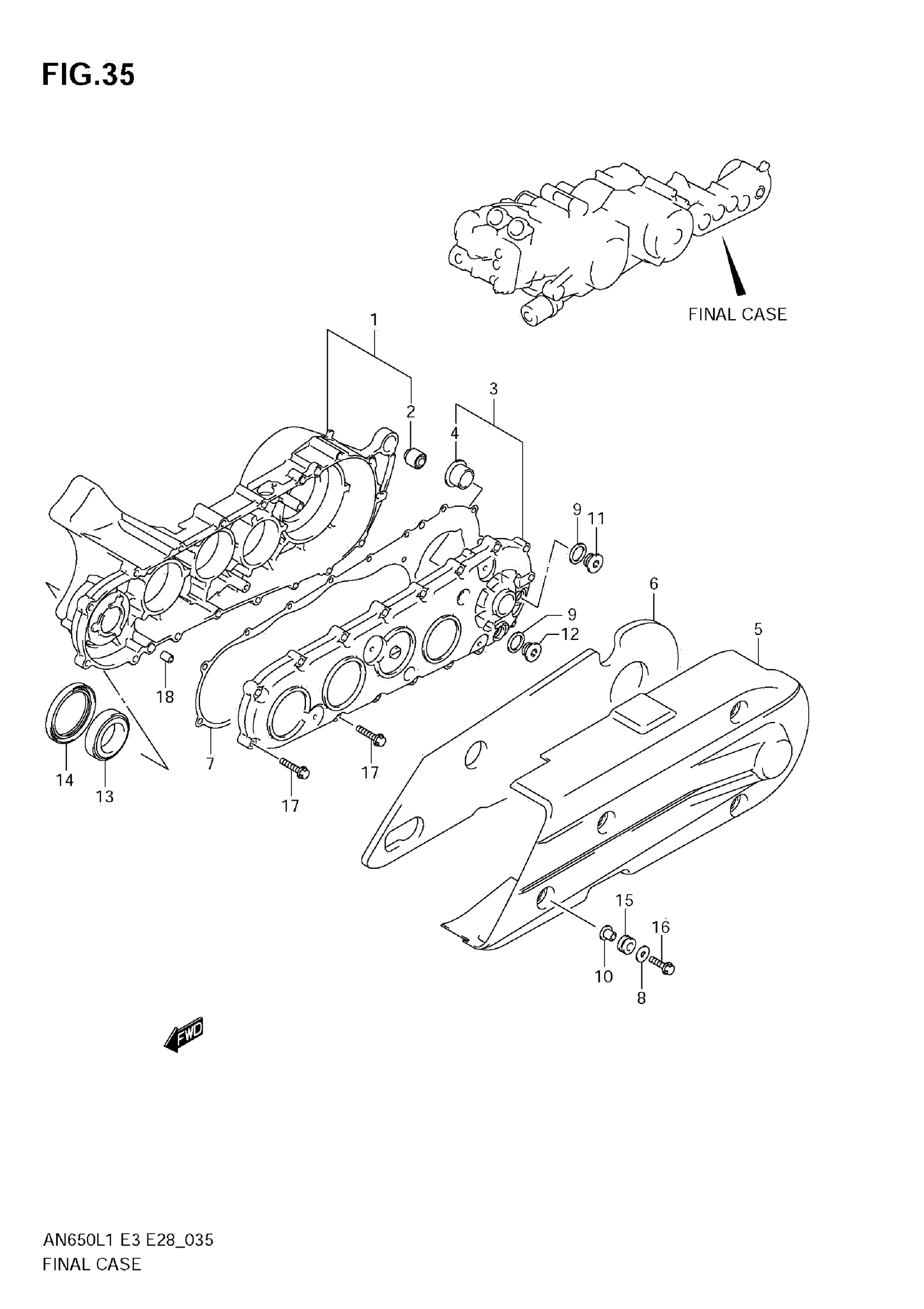

Find the part on the Case Final diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN650AL1 Case Final Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, FINAL GEAR RH

27450-10G00

1
Out of stock

2

BUSH

09319-10032

1
Out of stock

3

CASE, FINAL GEAR LH

27460-10G00

1
Out of stock

4

BUSH

27433-24A00

1
Out of stock

5

COVER, FINAL GEAR CASE

27471-10G00

1
Out of stock

6

CUSHION, FINAL GEAR CASE

27472-10G01

1
Out of stock

7

GASKET, FINAL GEAR CASE

27551-10G00

1
Out of stock

8

WASHER (6.5X18X1.6)

09160-06109

4
Out of stock

9

GASKET (18X24.2X2)

09168-18003

2
Out of stock

10

WASHER

09169-06062

4
Out of stock

11

PLUG

09248-18004

1
Out of stock

12

PLUG

09248-18008

1
Out of stock

13

BEARING (35X55X14) | RH

09265-35012

1
Out of stock

14

OIL SEAL (53X68.2X7) | RH

09283-53001

1
Out of stock

15

CUSHION

09320-09016

4
Out of stock

16

BOLT

01547-0625B

4
Out of stock

17

BOLT

01547-0630B

19
Out of stock

18

PIN

04211-09149

2
Out of stock
