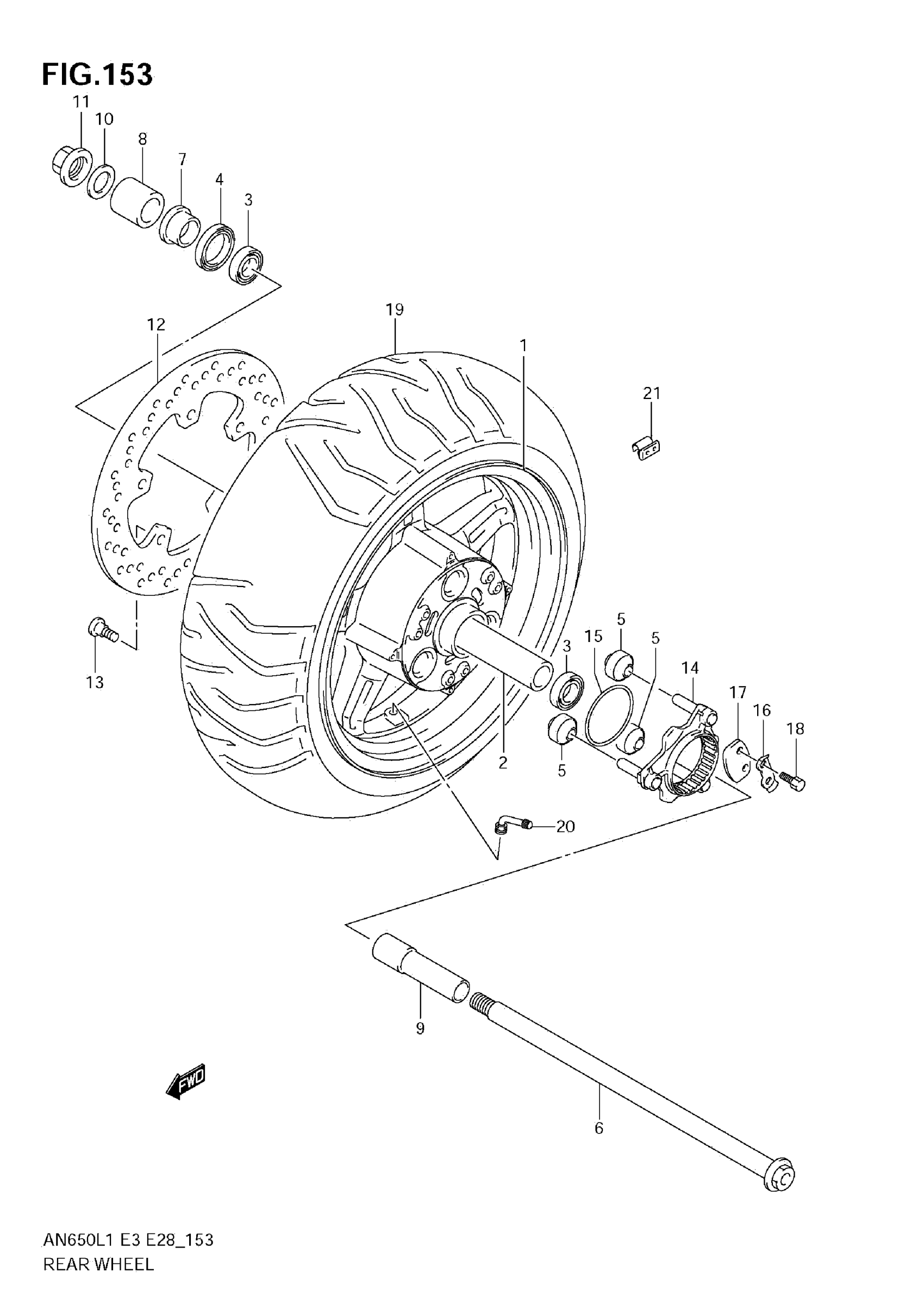

Suzuki AN650AL1 (2011) REAR WHEEL (AN650 L1 E33) Diagram

#

Description
Price

1

WHEEL, REAR (14M/CXMT4.50) (SILVER)

64111-10G10-YD8

$1,063.85

2

SPACER, REAR HUB BEARING

64731-10G00

$46.25

3

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

4

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.27

5

BUSH

09319-12062

$17.38

6

AXLE, REAR

64711-10G00

Unavailable

7

SPACER, RR AXLE RH

64741-10F00

$19.54

8

SPACER, REAR AXLE RH NO.1

64751-10G10

$17.78

9

SPACER, REAR AXLE LH

64772-10G00

Unavailable

10

WASHER

08322-0118B

$2.95

11

NUT

08319-3118A

$26.62

12

DISC, REAR BRAKE

69211-10G10

$315.58

13

BOLT (8X21)

09106-08160

$3.22

14

JOINT ASSY, REAR HUB DRIVEN

64680-10G20

Unavailable

15

O RING (D:2.1,ID:65)

09280-65003

$4.03

16

WASHER

09169-06030

$3.42

17

WASHER, THRUST

64677-10G00

Unavailable

18

BOLT

09119-06049

$1.63

19

TIRE,RR(160/60R | TH01 R RADIAL This part replaces 65110-10G10.

65110-10G11

$313.43

20

VALVE ASSY, WHEEL RIM

43130-39H00

$66.18

21

BALANCER, WHEEL NO.1

43222-73H10

$6.57

21

BALANCER, WHEEL NO.2

43224-73H10

$4.02

21

BALANCER, WHEEL NO.3

43226-73H10

$4.69
