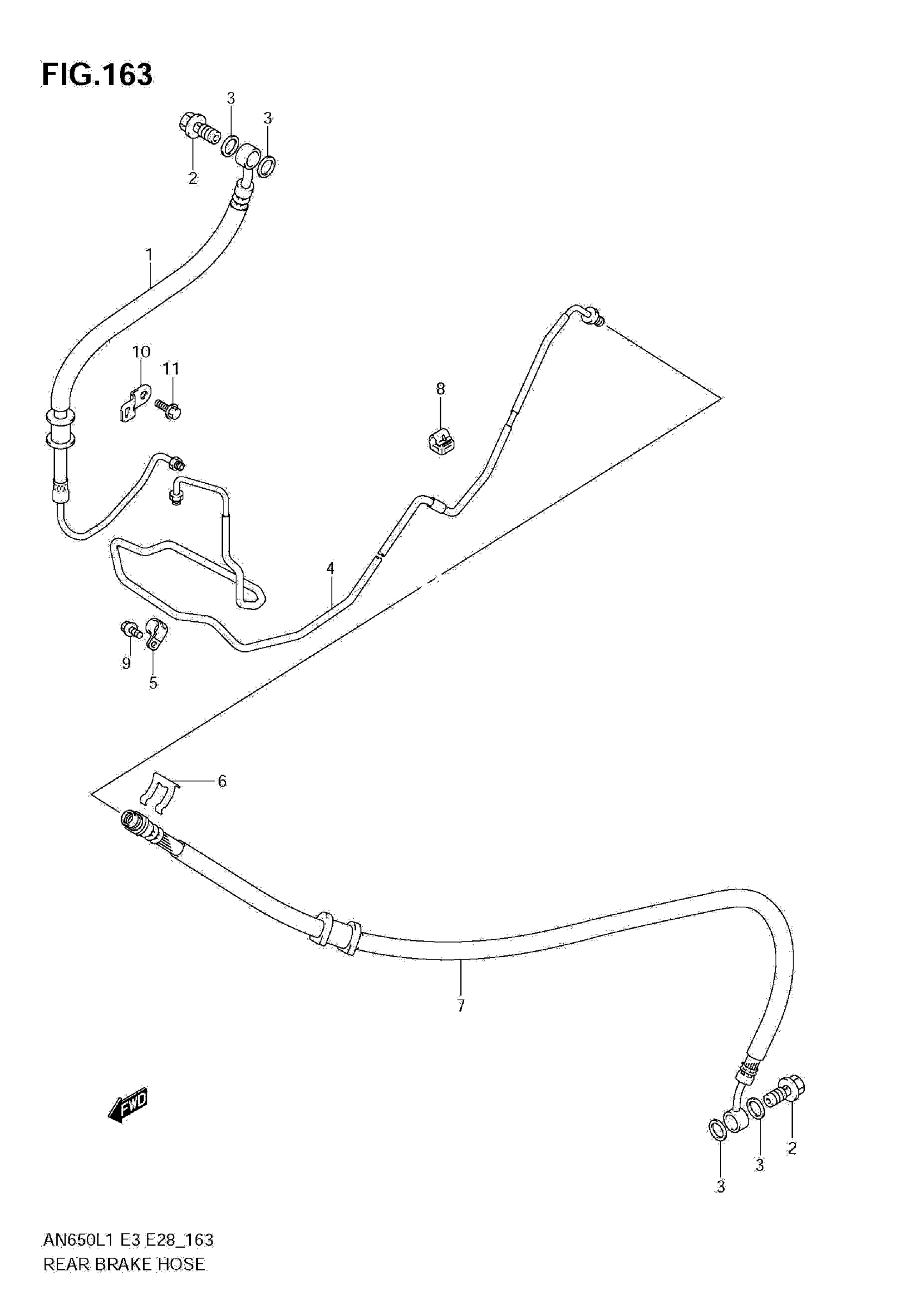

Suzuki AN650AL1 (2011) REAR BRAKE HOSE (AN650A L1 E33) Diagram

#

Description
Price

1

HOSE ASSY, REAR BRAKE NO.1

69200-10G01

Unavailable

2

UNION

09360-10062

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

PIPE, REAR BRAKE

69250-10G10

Unavailable

5

CLAMP

09403-07401

Unavailable

6

E RING This part replaces 09383-13001.

09383-13003

$2.30

7

HOSE, REAR BRAKE NO.2

69480-10G10

Unavailable

8

CLAMP

09403-05406

$2.53

9

BOLT

01547-0612A

$2.03

10

PLATE, BRAKE HOSE CLAMP

59262-10G00

Unavailable

11

BOLT

01547-0612A

$2.03
