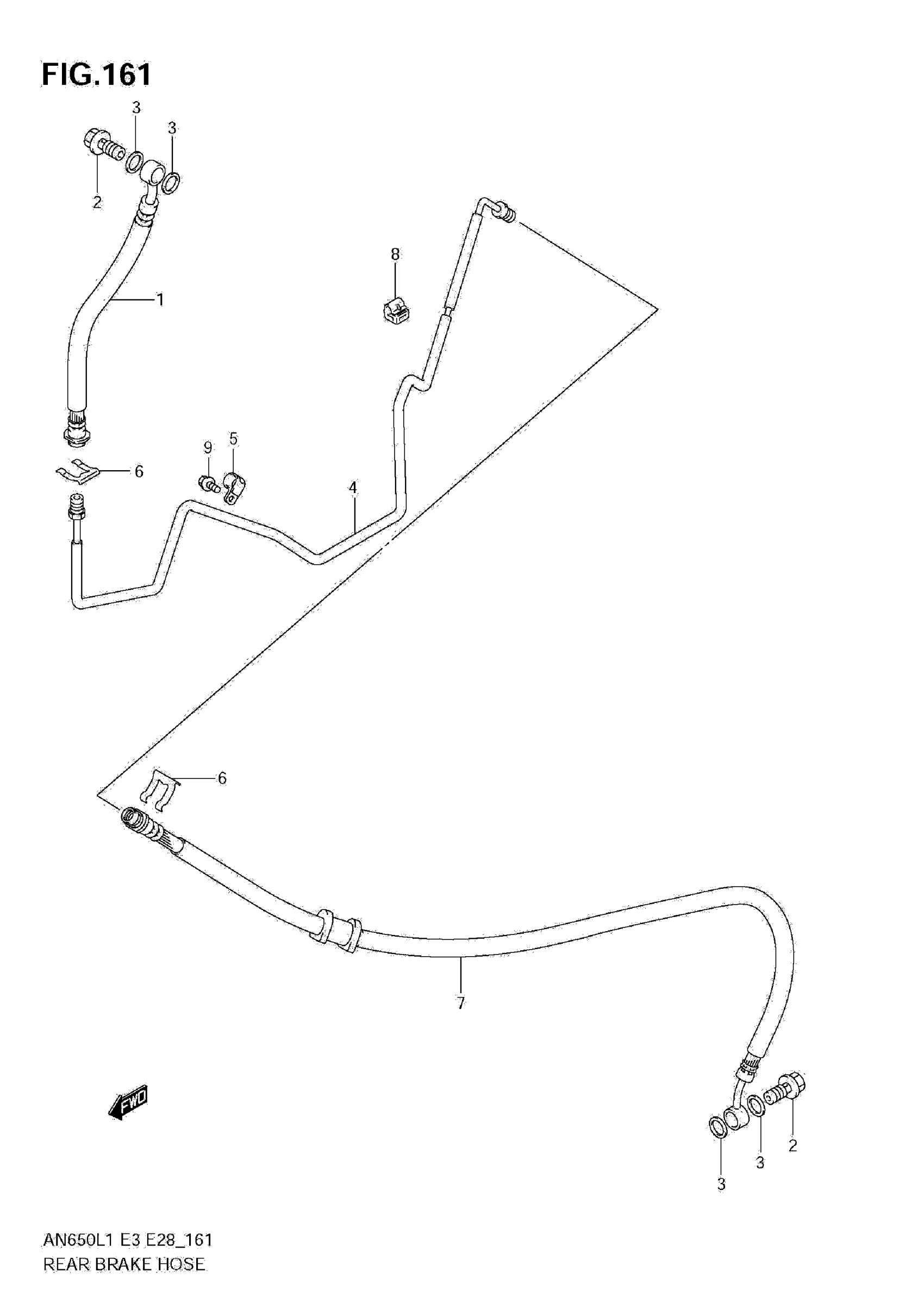

Suzuki AN650AL1 (2011) REAR BRAKE HOSE (AN650 L1 E33) Diagram

#

Description
Price

1

HOSE COMP,RR BR This part replaces 69240-10G11.

69240-10G12

$89.43

2

BOLT (10X1.25X22)

09360-10062

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

PIPE, REAR BRAKE

69250-10G00

$48.78

5

CLAMP

09403-07401

Unavailable

6

E RING This part replaces 09383-13001.

09383-13003

$2.30

7

HOSE, REAR BRAKE NO.2

69480-10G10

Unavailable

8

CLAMP

09403-05406

$2.53

9

BOLT

01547-0612A

$2.03
