Partiron

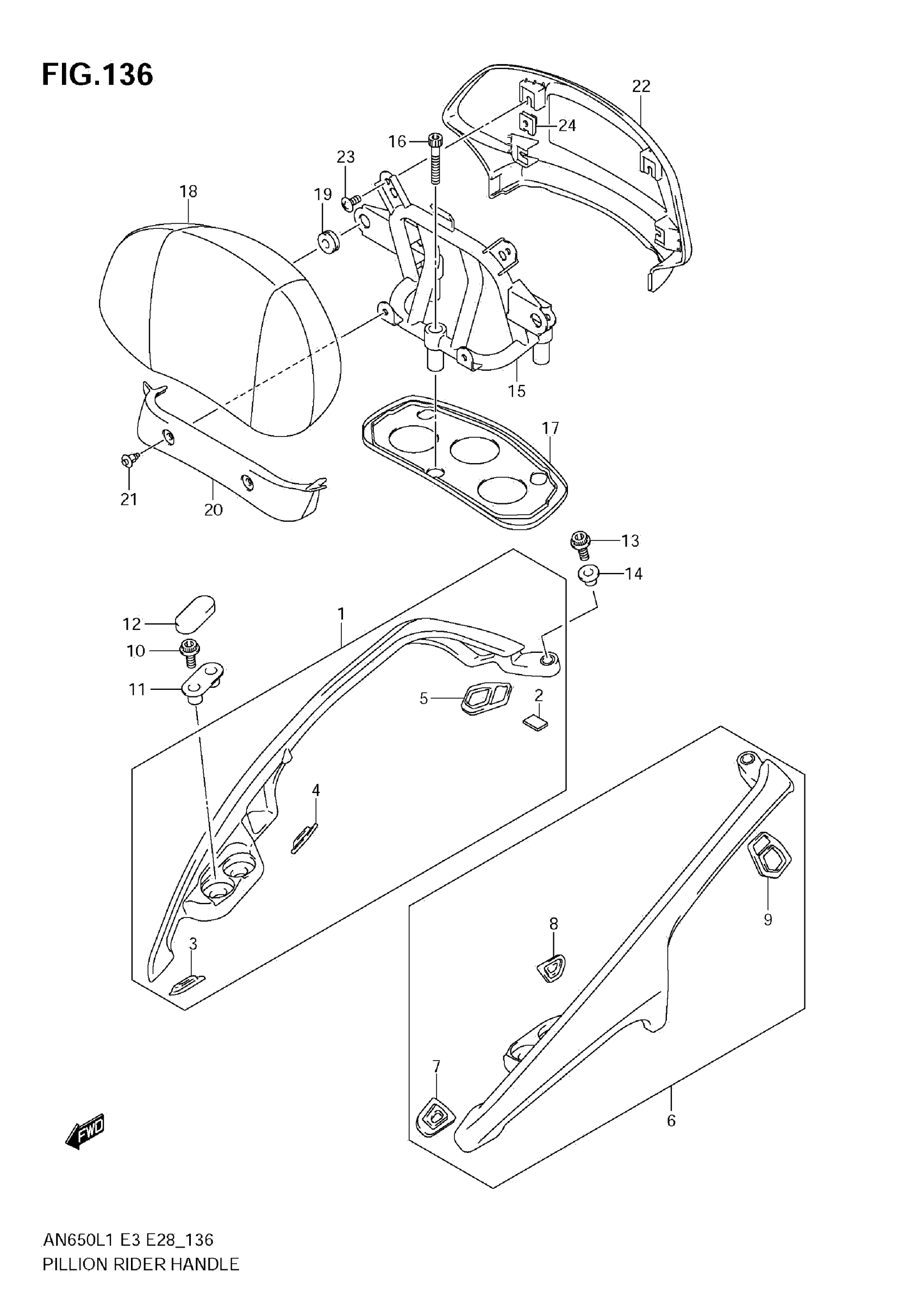

Suzuki AN650AL1 (2011) PILLION RIDER HANDLE (AN650A L1 E33) Diagram

#

Description
Price

1

HANDLE,PILLION This part replaces 46210-10G03-YHG.

46210-10G04-YHG

Unavailable

1

HANDLE, PILLION RIDER, RH (BLACK)

46210-10G03-YVB

Unavailable

1

HANDLE, PILLION RIDER, RH (WHITE) This part replaces 46210-10G03-YPA.

46210-10G04-YPA

$646.93

2

CUSHION, PILLION RIDER HDL

33651-37000

$4.48

3

CUSHION, PILLION HDL FR RH This part replaces 46261-10G00.

46261-10G10

$5.15

4

CUSHION, PILLION HDL CTR RH This part replaces 46271-10G00.

46271-10G10

$7.50

5

CUSHION, PILLION HDL RR RH

46281-10G01

Unavailable

6

HANDLE,PILLION This part replaces 46230-10G02-YHG.

46230-10G03-YHG

Unavailable

6

HANDLE, PILLION RIDER, LH (BLACK)

46230-10G02-YVB

Unavailable

6

HANDLE, PILLION RIDER, LH (WHITE) This part replaces 46230-10G02-YPA.

46230-10G03-YPA

$494.07

7

CUSHION, PILLION HDL FR LH This part replaces 46262-10G00.

46262-10G10

$7.28

8

CUSHION, PILLION HDL CTR LH This part replaces 46272-10G00.

46272-10G10

$6.20

9

CUSHION, PILLION HDL RR LH

46282-10G01

Unavailable

10

BOLT (8X25)

09106-08151

$3.70

11

WASHER, PILLION HDL BOLT

46290-10G01

Unavailable

12

CAP, PILLION HDL BOLT

46251-10G00

Unavailable

13

BOLT (8X25)

09106-08151

$3.70

14

WASHER

09169-08049

$4.11

15

BRACKET, PILLION RIDER HANDLE

46240-10G10

Unavailable

16

BOLT

07130-0845B

$3.99

17

CUSHION, PILLION HANDLE COVER

46252-10G00

Unavailable

18

BACKREST ASSY P This part replaces 46220-10G30-BYA.

46220-10G31-BYA

$264.07

19

CUSHION

09320-08049

$3.26

20

COVER, PILLION HDL FR (GRAY)

46215-10G20-YHG

Unavailable

20

COVER, PILLION HDL FR (BLACK)

46215-10G20-YVB

Unavailable

20

COVER, PILLION HDL FR (WHITE)

46215-10G20-YPA

Unavailable

21

CLIP

09409-06314-5PK

$2.78

22

COVER, PILLION HDL RR (GRAY)

46216-10G20-YHG

Unavailable

22

COVER, PILLION HDL RR (BLACK)

46216-10G20-YVB

Unavailable

22

COVER, PILLION HDL RR (WHITE)

46216-10G20-YPA

Unavailable

23

SCREW

02142-0612B

$2.05

24

NUT

09148-06018

$3.16
