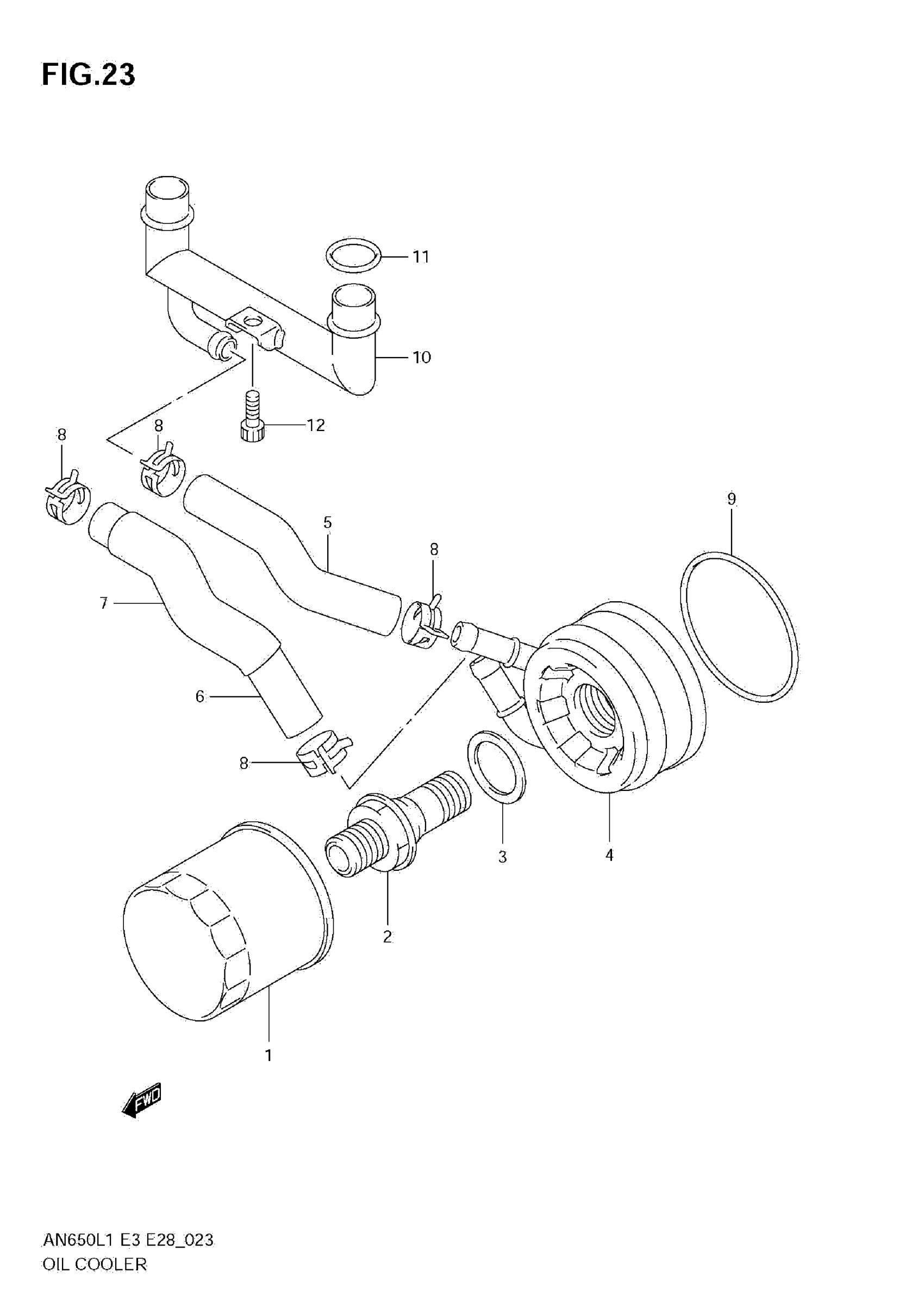

Suzuki AN650AL1 (2011) OIL COOLER Diagram

#

Description
Price

1

FILTER, ENGINE OIL

16510-07J00

$11.99

2

BOLT,OIL COOLER UNION

16591-02F00

$56.53

3

SHIM (25X34X0.7)

09181-25160

$3.03

4

COOLER ASSY, OIL

16600-10G00

Unavailable

5

HOSE, OIL COOLER IN

16461-10G00

$22.08

6

HOSE, OIL COOLER OUT

16471-10G00

$23.17

7

PROTECTOR, HOSE HEAT

16479-10G00

Unavailable

8

CLIP

09401-16407

$2.53

9

O RING (D:3.1,ID:63.9)

09280-64003

$5.09

10

PIPE, WATER

17880-10G00

$74.40

11

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.26

12

BOLT (6X12)

09106-06075

$2.50
