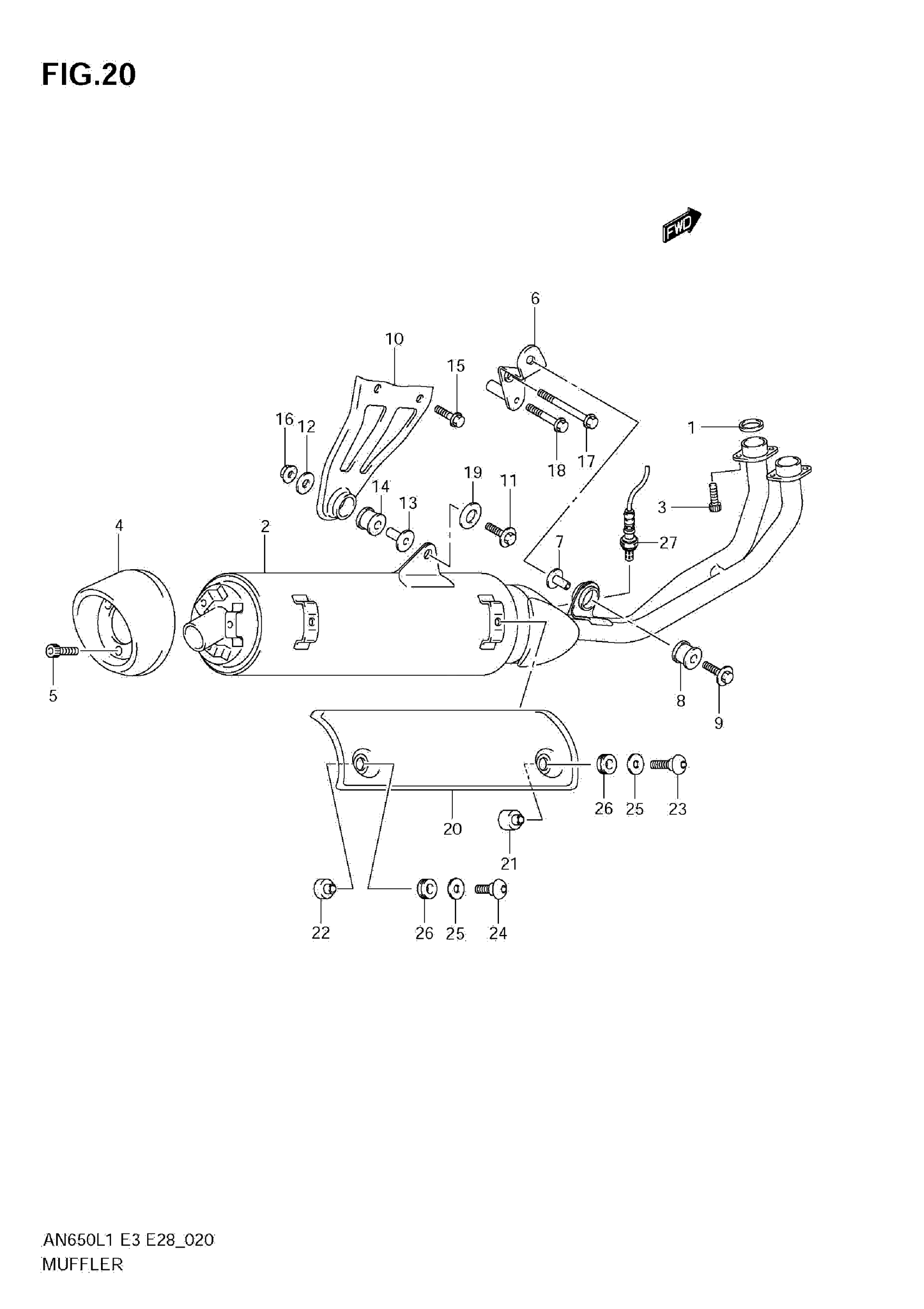

Find the part on the Muffler diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN650AL1 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.GASKET,EXHAUST PIPE

14181-22D01

2
Out of stock

2

MUFFLER

14305-10GG0

1
Out of stock

3

BOLT (8X25)

09106-08165

4
Out of stock

4

COVER, MUFFLER REAR

14791-10G10

1
Out of stock

5

BOLT (6X15)

09106-06078

3
Out of stock

6

BRACKET, FRONT

14410-10G00

1
Out of stock

7

SPACER (8.6X12X27.1)

09180-08156

1
Out of stock

8

CUSHION

09320-12049

1

$10.34

In stock

9

BOLT (8X45)

09116-08106

1
Out of stock

10

BRACKET, REAR

14470-10G10

1
Out of stock

11

BOLT (8X45)

09106-08164

1
Out of stock

12

WASHER (8.5X33X1.5)

09160-08146

1

$2.80

In stock

13

SPACER (8.6X12X27.1)

09180-08156

1
Out of stock

14

CUSHION

09320-12049

1

$10.34

In stock

15

BOLT

01550-0820B

2
Out of stock

16

NUT

08361-2508A

1

$2.10

In stock

17

BOLT (10X115)

09103-10063

1
Out of stock

18

BOLT

01550-0880B

1
Out of stock

19

WASHER (8.5X28X1.5)

09160-08142

1
Out of stock

20

COVER, MUFFLER

14781-10G11

1
Out of stock

21

SPACER, MUFFLER COVER FRONT

14788-10G10

1
Out of stock

22

SPACER, MUFFLER COVER REAR

14789-10G10

1
Out of stock

23

SCREW (6X25)

09139-06029

1
Out of stock

24

SCREW (6X20)

09139-06028

1

$3.58

In stock

25

WASHER (6.5X18X1.5)

09160-06036

2
Out of stock

26

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

27

SENSOR, OXYGEN

18213-10G11

1
Out of stock
