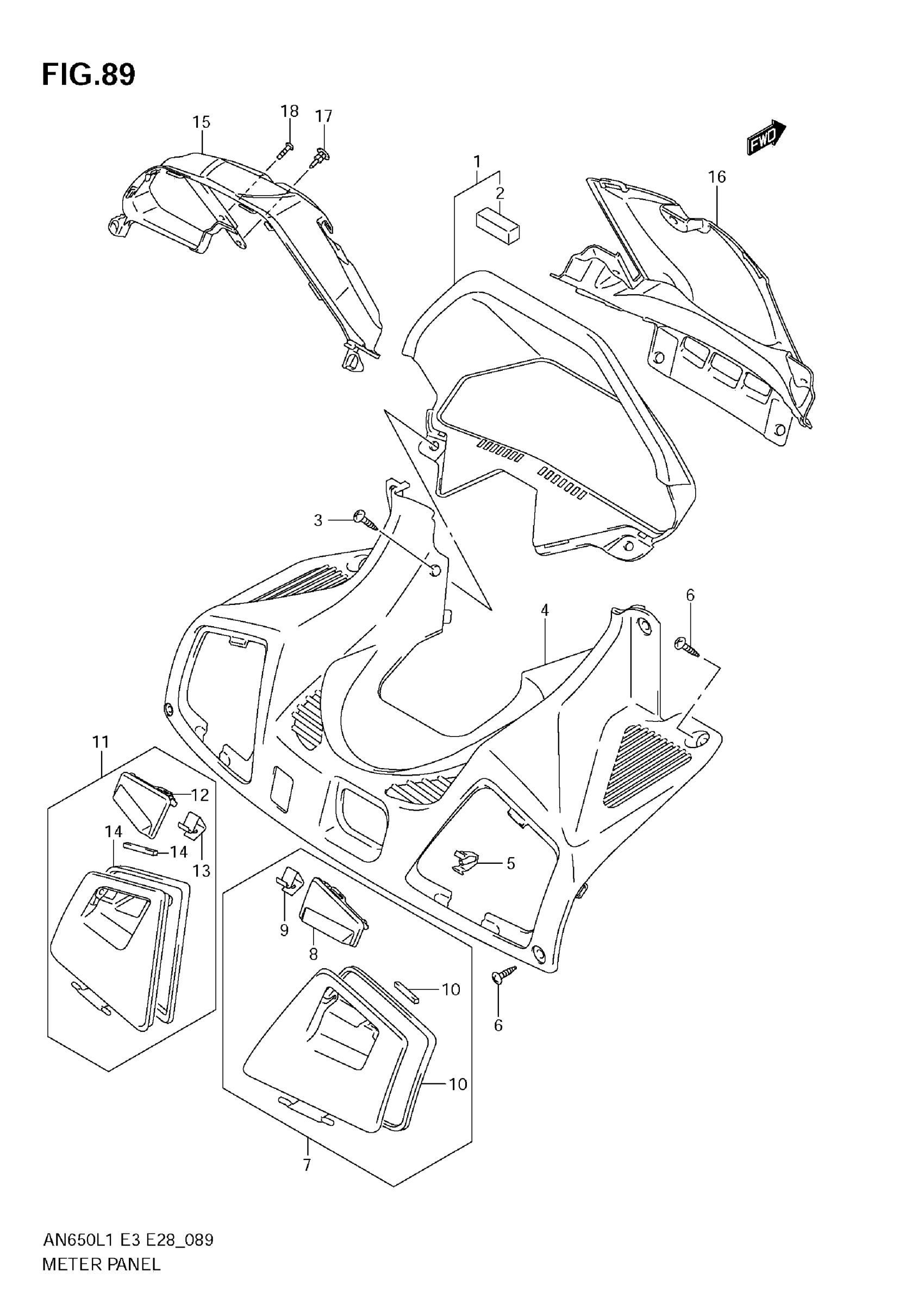

Suzuki AN650AL1 (2011) METER PANEL (AN650A L1 E28) Diagram

#

Description
Price

1

PANEL, METER REAR (GRAY)

94420-10G00-Y0J

$68.08

2

CUSHION

94423-10G00

$8.43

3

SCREW (6X16)

09122-66006

$3.08

4

PANEL, FRONT LOWER (GRAY)

94671-10G20-Y0J

Unavailable

5

CLIP

09409-08326

$2.48

6

SCREW (5X16)

09132-05053

$2.28

7

LID, FRONT PANEL RH (GRAY)

92140-10G10-Y0J

$48.30

8

LOCK, PANEL RH (GRAY)

92143-10G10-Y0J

$12.82

9

SPRING, LID

92144-10G10

$7.87

10

CUSHION

92145-10G00

$7.05

11

LID, FRONT PANEL LH (GRAY)

92150-10G10-Y0J

$47.40

12

LOCK, PANEL LH (GRAY)

92153-10G10-Y0J

$12.35

13

SPRING, LID

92144-10G10

$7.87

14

CUSHION

92145-10G00

$7.05

15

PANEL, METER FRONT UPPER

94421-10GA0-Y0J

Unavailable

16

PANEL, METER FRONT LOWER

94424-10GA0-Y0J

Unavailable

17

CLIP (BLACK)

09409-08308-5ES

$1.97

18

SCREW

02142-0512B

$2.05
