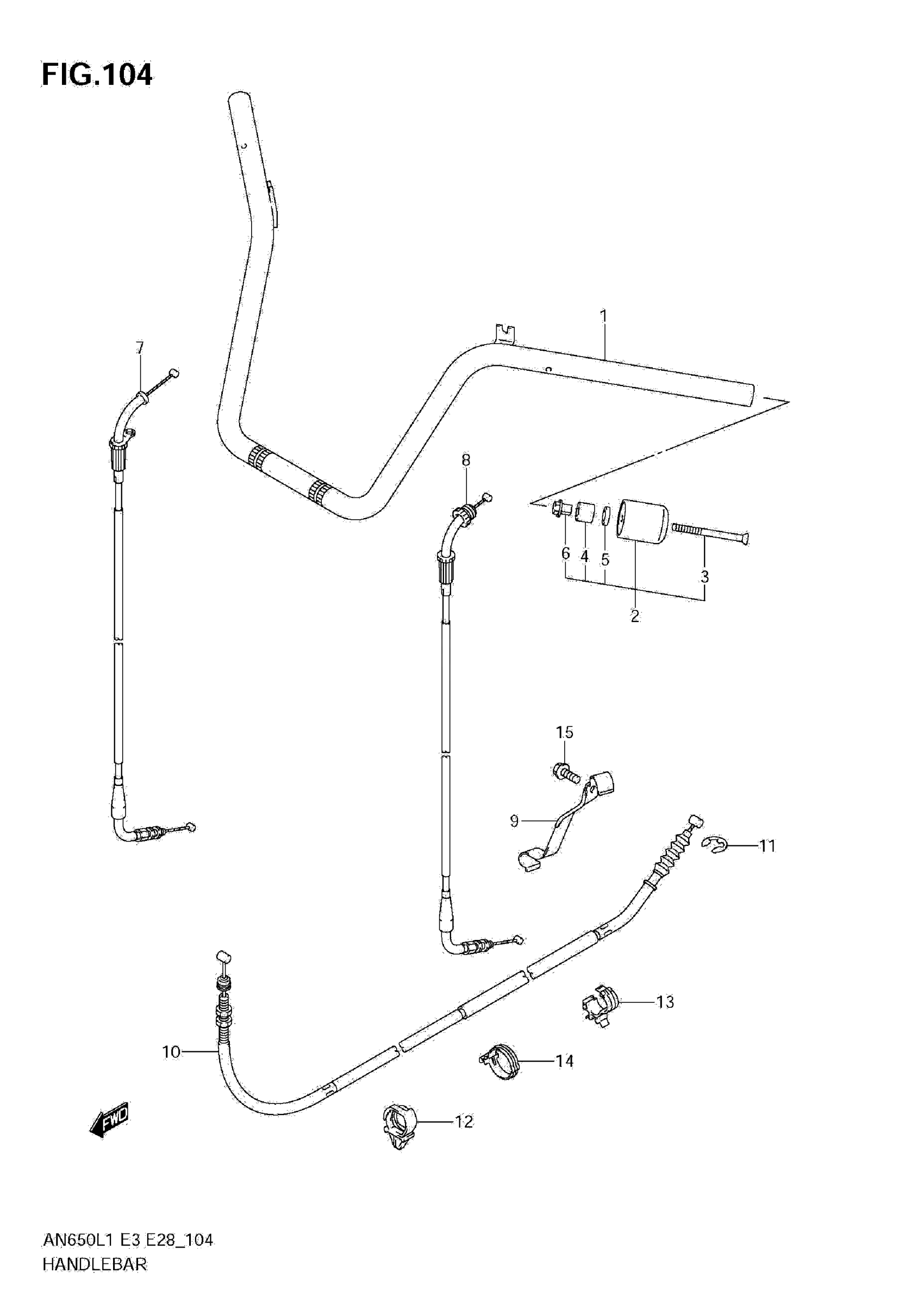

Suzuki AN650AL1 (2011) HANDLEBAR (AN650 L1 E3) Diagram

#

Description
Price

1

HANDLEBAR

56110-10G40

$233.10

2

BALANCER SET,HN This part replaces 56200-10872.

56200-10873

$55.65

3

SCREW

02122-0670B

$3.72

4

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

5

WASHER (6.5X16X4)

09160-06131

$2.50

6

NUT

56273-10G10

$8.65

7

CABLE ASSY,THRO This part replaces 58300-10G00.

58300-10G01

$24.82

8

CABLE ASSY,THRO This part replaces 58300-10G10.

58300-10G11

$25.95

9

GUIDE, BRAKE LOCK CABLE

58621-10G00

Unavailable

10

CABLE BRAKE LOCK

58810-10G10

$122.98

11

STOPPER,BRAKE LOCK CABLE

58822-10G00

Unavailable

12

CLAMP

09403-14307

Unavailable

13

CLAMP

09403-15405

$2.72

14

CLAMP

09403-17402

Unavailable

15

BOLT

01547-0612A

$2.03
