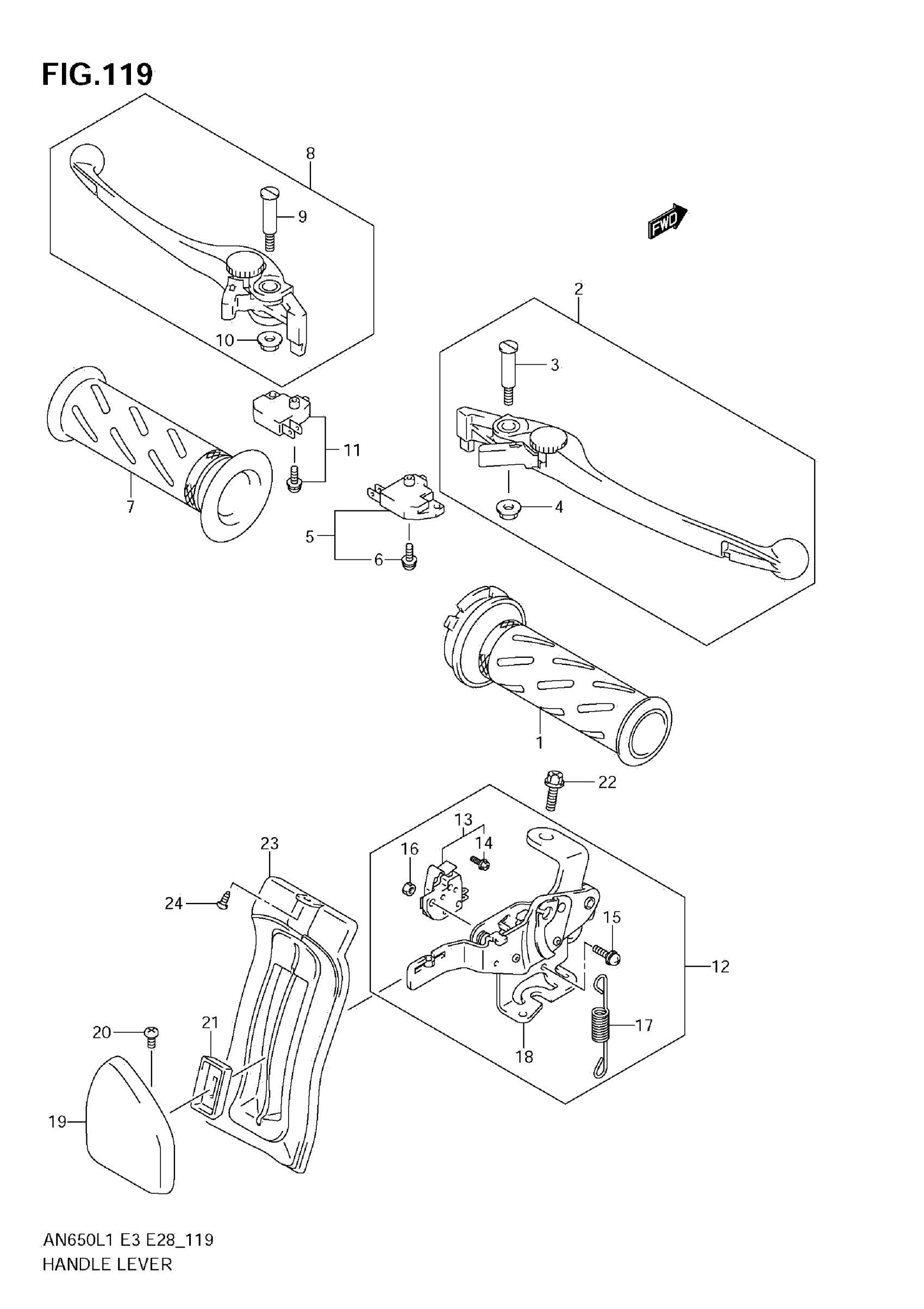

Suzuki AN650AL1 (2011) HANDLE LEVER (AN650A L1 E33) Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$26.60

2

LEVER ASSY, FRONT BRAKE This part replaces 57300-10G31.

57300-10G32

$39.24

3

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

$6.72

4

NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

$13.32

8

LEVER ASSY, REAR BRAKE This part replaces 57500-10G31.

57500-10G32

$85.35

9

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

$6.72

10

NUT

08319-2106A

$1.89

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14F11.

57560-14J02

$36.39

12

LEVER ASSY, BRAKE LOCK

57800-10G01

Unavailable

13

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$35.21

14

SCREW

57465-17C00

$2.37

15

SCREW

57852-10G00

Unavailable

16

NUT

57853-10G00

Unavailable

17

SPRING, RETURN

57804-10G00

Unavailable

18

LEVER, BRAKE LOCK

57810-10G00

Unavailable

19

KNOB, BRAKE LOCK

57820-10G00

$47.27

20

SCREW

02112-0408B

$2.05

21

COVER, KNOB

57831-10G00

Unavailable

22

BOLT

01550-0612B

$2.38

23

PLATE, LEVER SEAL

57950-10G00

Unavailable

24

SCREW

03511-0512A

$1.68
