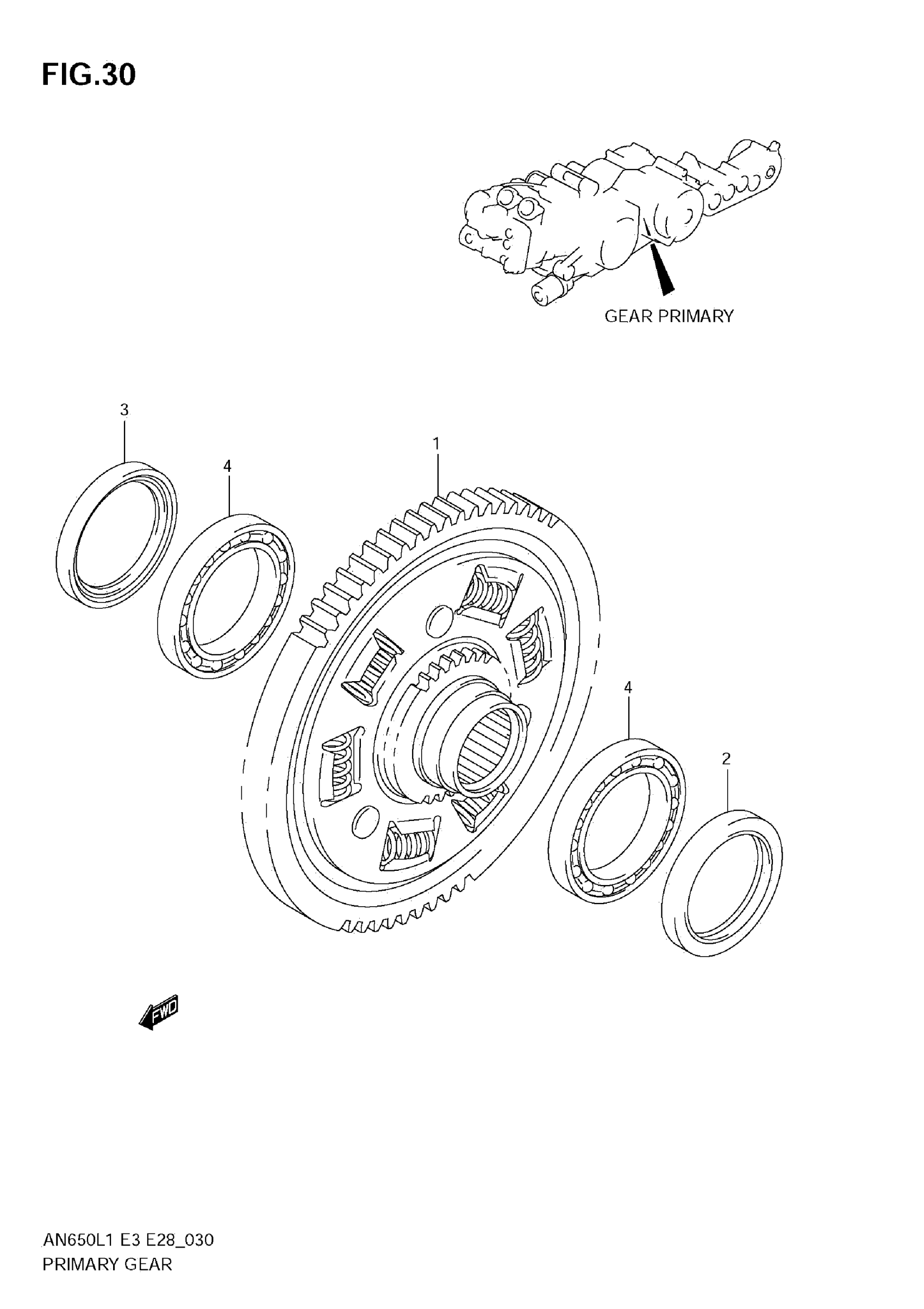

Suzuki AN650AL1 (2011) GEAR PRIMARY Diagram

#

Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:88/34/24

21200-10G20

Unavailable

2

OIL SEAL (44X62X7) | LH This part replaces 09283-44012.

09283-44018

$16.95

3

OIL SEAL (44X62X7) | RH

09283-44013

$18.18

4

BEARING (45X68X9.5)

09262-45015

$96.12
