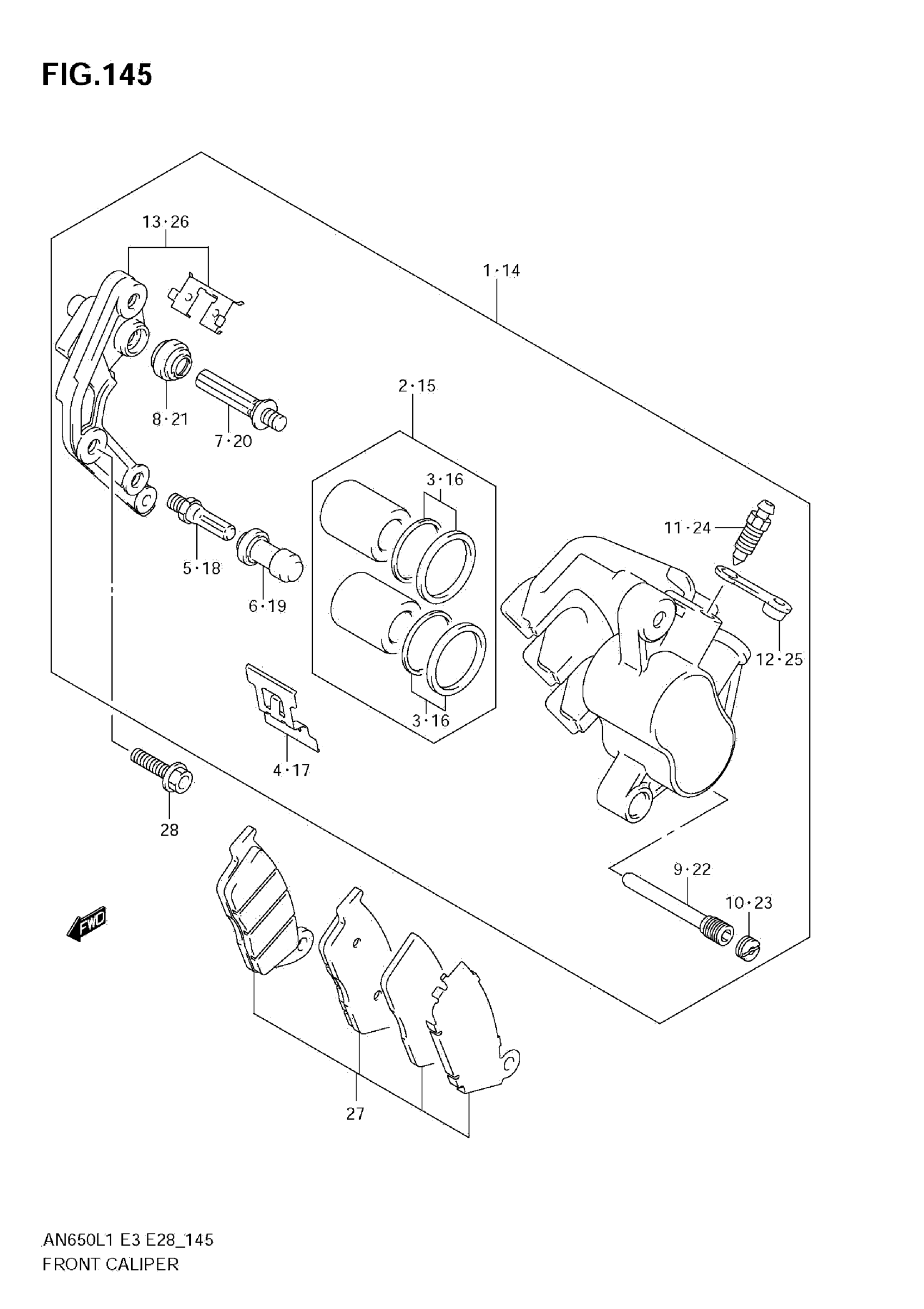

Suzuki AN650AL1 (2011) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-21E60-999

$375.72

2

PISTON SET

59300-21810

$66.25

3

SEAL SET, PISTON

59300-21860

$20.15

4

SPRING, PAD

59115-21E10

$14.72

5

BOLT

59382-27C30

$9.07

6

BOOT

59386-13A00

$7.95

7

PIN

59187-21E10

$26.73

8

BOOT

59303-14500

$5.52

9

PIN, HANGER

59145-21E10

$21.57

10

PLUG, PIN

59146-21E10

$6.15

11

BLEEDER

59121-10G00

$14.47

12

CAP

59122-01A00

$4.34

13

BRACKET, R

59151-21E10

$120.05

14

CALIPER ASSY, FRONT LH

59300-21E60-999

$375.72

15

PISTON SET

59300-21810

$66.25

16

SEAL SET, PISTON

59300-21860

$20.15

17

SPRING, PAD

59115-21E10

$14.72

18

PIN

59382-27C30

$9.07

19

BOOT

59386-13A00

$7.95

20

BOLT

59187-21E10

$26.73

21

BOOT

59303-14500

$5.52

22

PIN, HANGER

59145-21E10

$21.57

23

PLUG, PIN

59146-21E10

$6.15

24

BLEEDER

59121-10G00

$14.47

25

CAP

59122-01A00

$4.34

26

BRACKET, L

59351-21E10

Unavailable

27

PAD & SHIM SET, R

59100-21860

$61.67

27

PAD & SHIM SET, L

59100-21870

$61.67

28

BOLT (8X28)

09103-08359

$3.76
