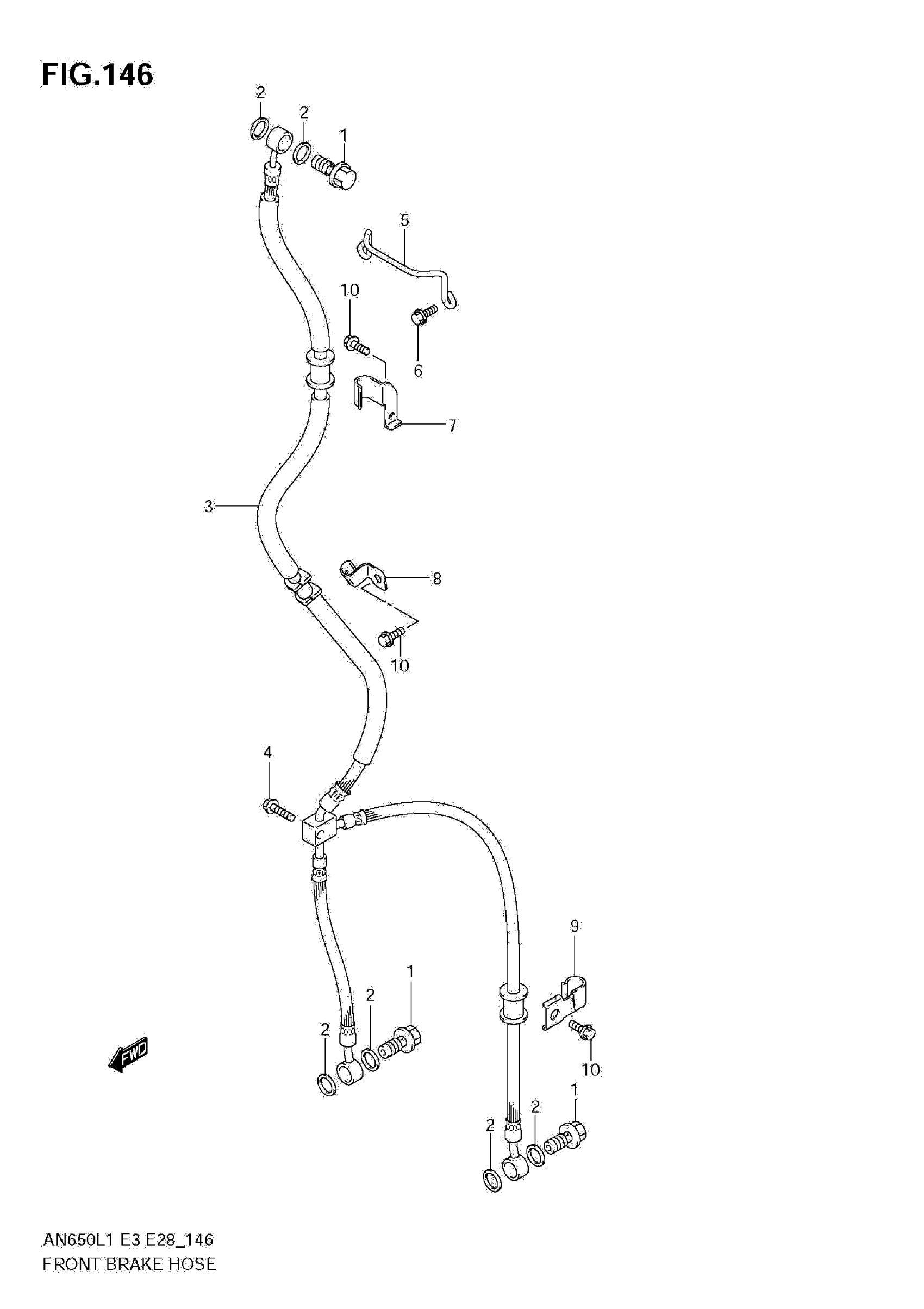

Suzuki AN650AL1 (2011) FRONT BRAKE HOSE (AN650 L1 E3) Diagram

#

Description
Price

1

UNION

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE COMP,FRT B This part replaces 59480-10G01.

59480-10G02

$186.82

4

BOLT

01547-0625A

$2.01

5

GUIDE, BRAKE HOSE

59541-10G00

Unavailable

6

BOLT

01550-0612A

$1.97

7

CLAMP, FR BRAKE HOSE NO.1

59261-10G00

Unavailable

8

CLAMP, FR BRAKE HOSE NO.2

59266-35F10

Unavailable

9

CLAMP, FRONT BRAKE HOSE LH

59268-10G00

Unavailable

10

BOLT

01547-0612A

$2.03
