2011 Suzuki AN650AL1 Front BOX Diagram

← All diagrams

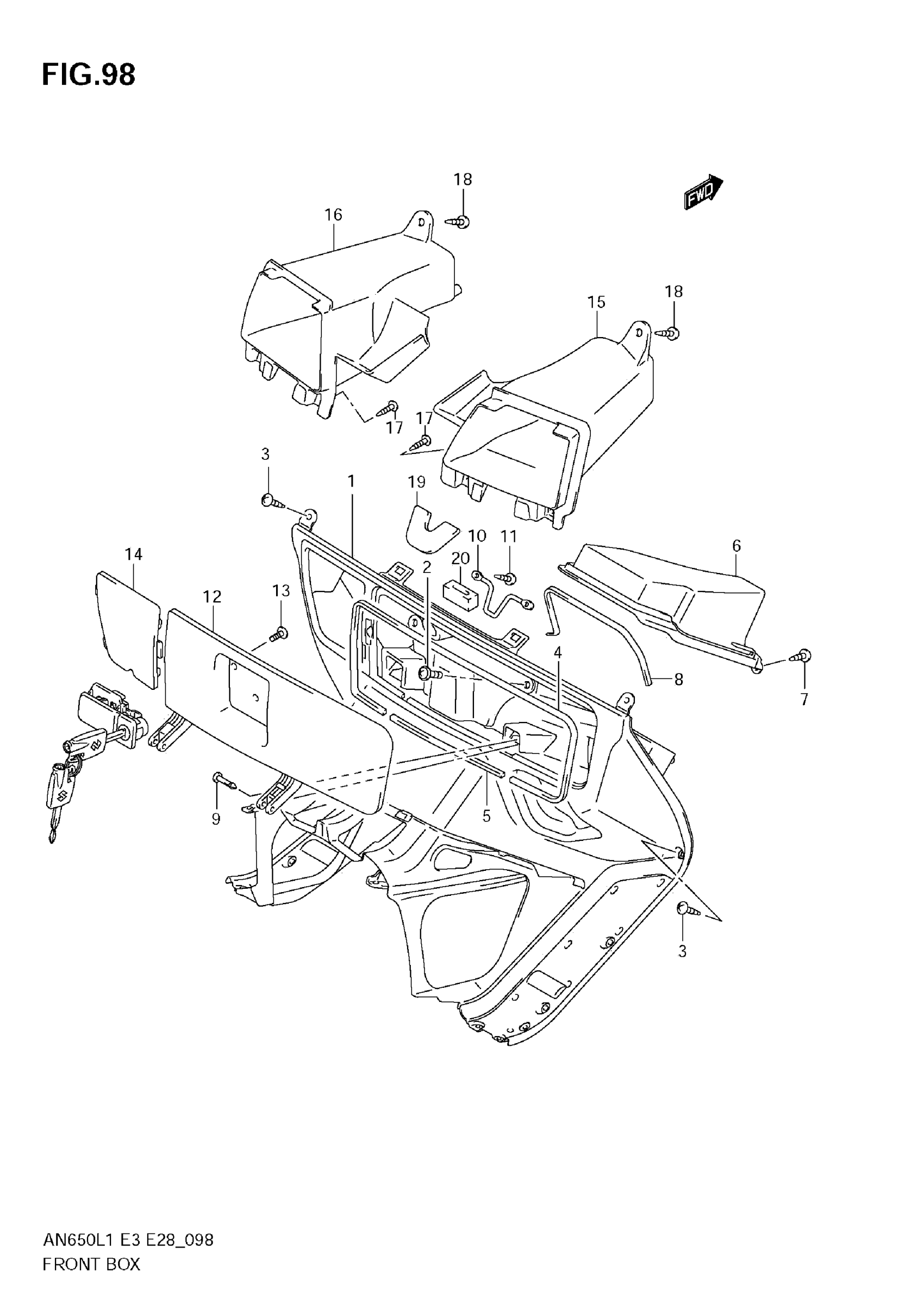

Find the part on the Front BOX diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN650AL1 Front BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX, FRONT (GRAY)

92110-10GB0-Y0J

1

$444.97

In stock

2

SCREW (6X16)

09139-06120

2

$2.92

In stock

3

SCREW (5X16)

09132-05053

14

$2.44

In stock

4

CUSHION, FONT BOX NO.1

92114-14F01

1
Out of stock

5

CUSHION, FONT BOX NO.2

92114-14F01

1
Out of stock

6

COVER, BOX INNER

92112-10G00

1
Out of stock

7

SCREW

03541-0516A

2
Out of stock

8

CUSHION

92116-05H00

1
Out of stock

9

PIN, FRONT BOX

73423-50G00

2

$5.75

In stock

10

STRIKER, FRONT BOX

92171-10G01

1

$12.35

In stock

11

SCREW

03541-0516A

2
Out of stock

12

LID, FRONT BOX (GRAY)

92120-10G00-Y0J

1

$98.98

In stock

13

SCREW

02142-0512B

2
Out of stock

14

LID, MAINTENANCE (GRAY)

92161-10G00-Y0J

1

$22.22

In stock

15

BOX, FRONT PANEL RH

92141-10G00

1

$49.73

In stock

16

BOX, FRONT PANEL LH

92151-10G00

1

$49.73

In stock

17

SCREW

03541-0516A

4
Out of stock

18

SCREW

03541-0616B

2
Out of stock

19

CUSHION, NO.3

92116-10G00

1

$9.08

In stock

20

CUSHION, NO.4

92117-10G00

1
Out of stock
