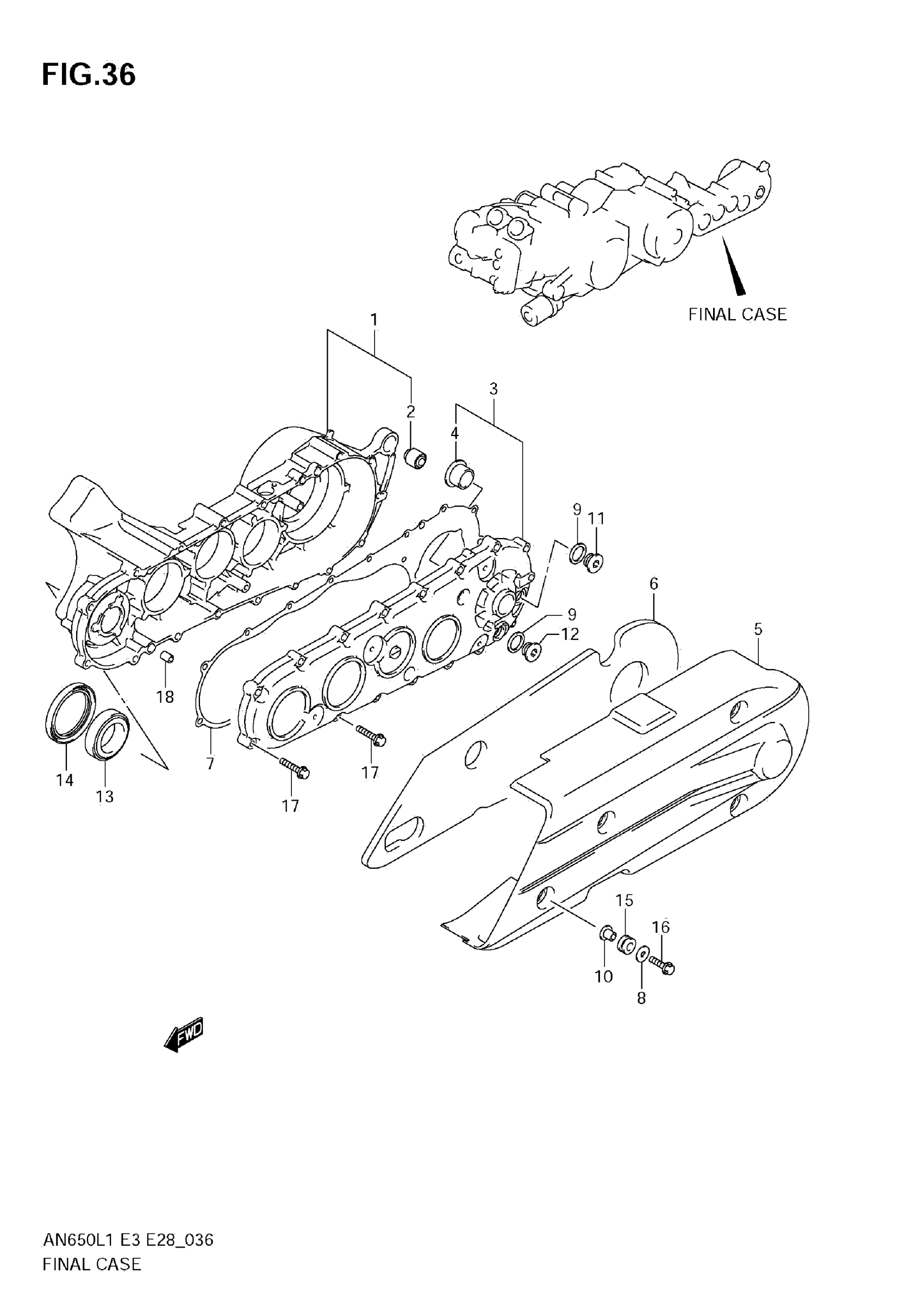

Suzuki AN650AL1 (2011) CASE FINAL (AN650A L1 E28) Diagram

#

Description
Price

1

CASE, FINAL GEAR RH

27450-10G10

Unavailable

2

BUSH

09319-10032

$9.27

3

CASE, FINAL GEAR LH

27460-10G00

Unavailable

4

BUSH

27433-24A00

Unavailable

5

COVER, FINAL GEAR CASE

27471-10G00

$125.61

6

CUSHION, FINAL GEAR CASE

27472-10G01

Unavailable

7

GASKET, FINAL GEAR CASE

27551-10G00

$24.03

8

WASHER (6.5X18X1.6)

09160-06109

$1.49

9

GASKET (18X24.2X2)

09168-18003

$1.49

10

WASHER

09169-06062

$2.50

11

PLUG

09248-18004

$15.42

12

PLUG

09248-18008

$26.30

13

BEARING (35X55X14) | RH

09265-35012

Unavailable

14

OIL SEAL (53X68.2X7) | RH

09283-53001

$16.00

15

CUSHION

09320-09016

$1.97

16

BOLT

01547-0625B

$2.45

17

BOLT

01547-0630B

$2.73

18

PIN

04211-09149

$1.65
