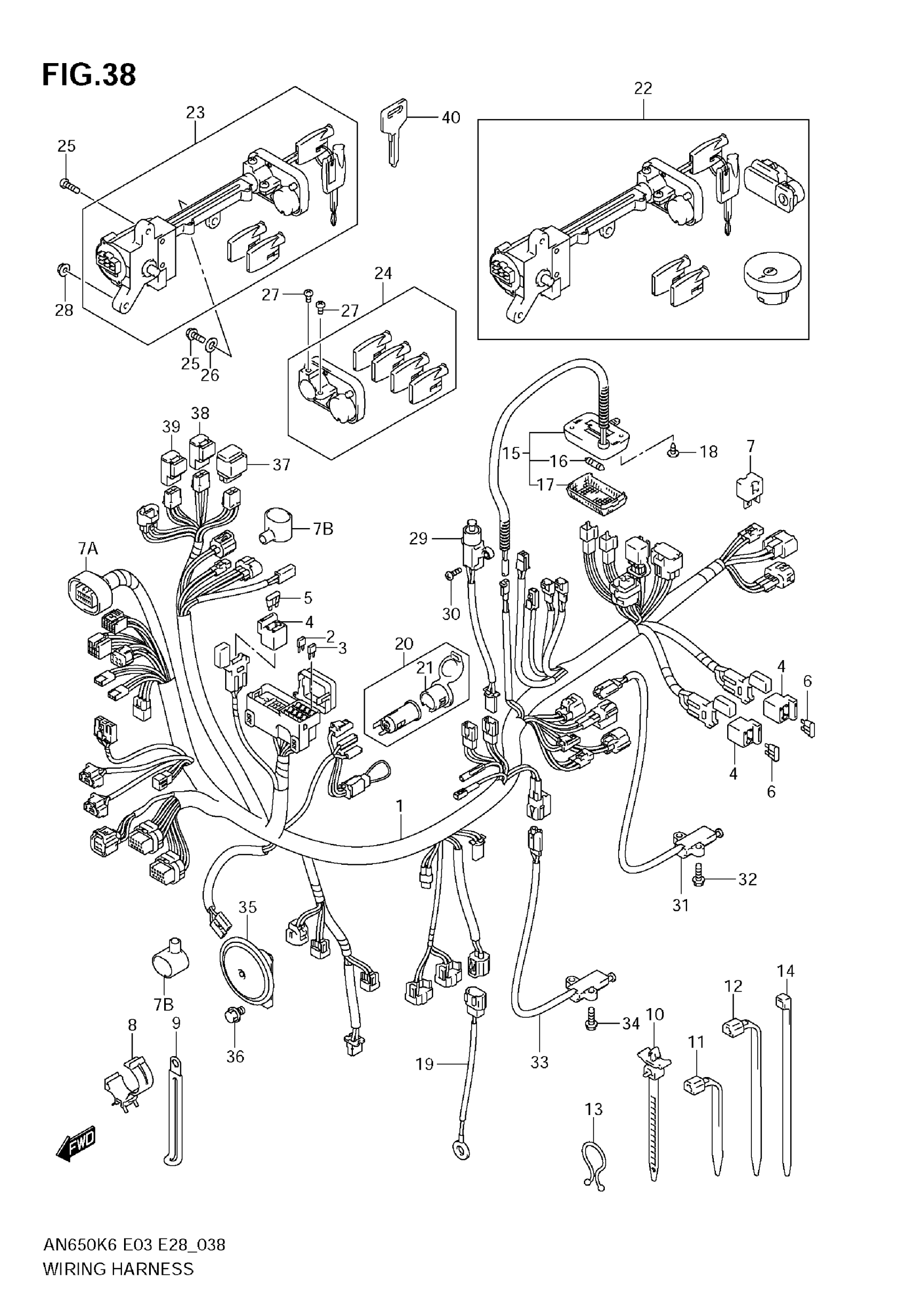

Suzuki AN650 (2009) WIRING HARNESS (AN650K6/K7/K8/K9) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K6

36610-10G91

Unavailable

1

HARNESS,WIRING | MODEL K7/K8 E3,E28 MODEL K9 E3 This part replaces 36610-19H31.

36610-19H32

Unavailable

1

HARNESS, WIRING | MODEL K7/K8/K9 E33; Includes Item(s) 2 - 7B

36610-19HA1

Unavailable

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

HOLDER

36742-39D00

$21.62

5

FUSE (10A)

09481-10101

$0.68

6

FUSE (40A)

09481-40101

$10.15

7

DIODE

32800-16A00

$21.12

7A

COVER

36618-21E00

Unavailable

7B

BOOT

36717-19H00

Unavailable

8

CLAMP

09403-20403

$4.00

8

CLAMP

09403-25401

Unavailable

8

CLAMP

09403-30403

Unavailable

9

CLAMP (L:45)

09404-06429

$1.82

10

CLAMP (L:90)

09407-11402

$1.81

10

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

11

CLAMP

09407-19401

$3.32

12

CLAMP (L:95)

09407-11401

$2.87

12

CLAMP (L:125)

09407-14403

$2.24

12

CLAMP (L:165)

09407-18402

$2.21

12

CLAMP (L:235)

09407-25401

$4.21

13

CLIP

09408-00012

$2.68

14

CLAMP (L:100)

09407-10404

$2.71

15

LAMP ASSY, TRUNK BOX | Includes Item(s) 16 - 17

36210-10G00

Unavailable

16

BULB (12V,5W)

09471-12073

$3.30

17

LENS

36212-79001

Unavailable

18

SCREW, TRUNK BOX

03541-0412B

$1.55

19

WIRE, OIL PRESSURE SWITCH LEAD

36851-10G00

Unavailable

20

SOCKET ASSY (GRAY) | 12V,120W; Includes Item(s) 21

39410-76F00-P4Z

Unavailable

21

COVER (GRAY)

39441-76F00-P4Z

$16.67

22

LOCK SET This part replaces 37103-10831.

37103-10836

$514.73

23

LOCK ASSY,STEER This part replaces 37120-10851.

37120-10855

$365.53

24

SHUTTER, STEERING LOCK

37155-10G01

Unavailable

25

BOLT, STEERING LOCK

09139-06048

$1.29

26

WASHER, 6.5X18X1.6

09160-06109

$1.15

27

TORX BOLT (5X10)

37159-14G00

Unavailable

28

NUT, STEERING LOCK

08316-1006B

$2.50

29

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

30

SCREW, TRUNK BOX

02112-0516B

$1.95

31

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$90.63

32

BOLT, CENTER STAND

01550-0620B

$2.38

33

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$93.18

34

BOLT, SIDE STAND

01550-0620B

$2.38

35

HORN ASSY

38500-10G00

Unavailable

36

BOLT, HORN

01550-0812B

$2.73

37

RELAY ASSY, FAN MOTOR

38740-38B00

$71.43

38

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

39

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

40

KEY, BLANK | OPT

37146-10G00

$43.05
