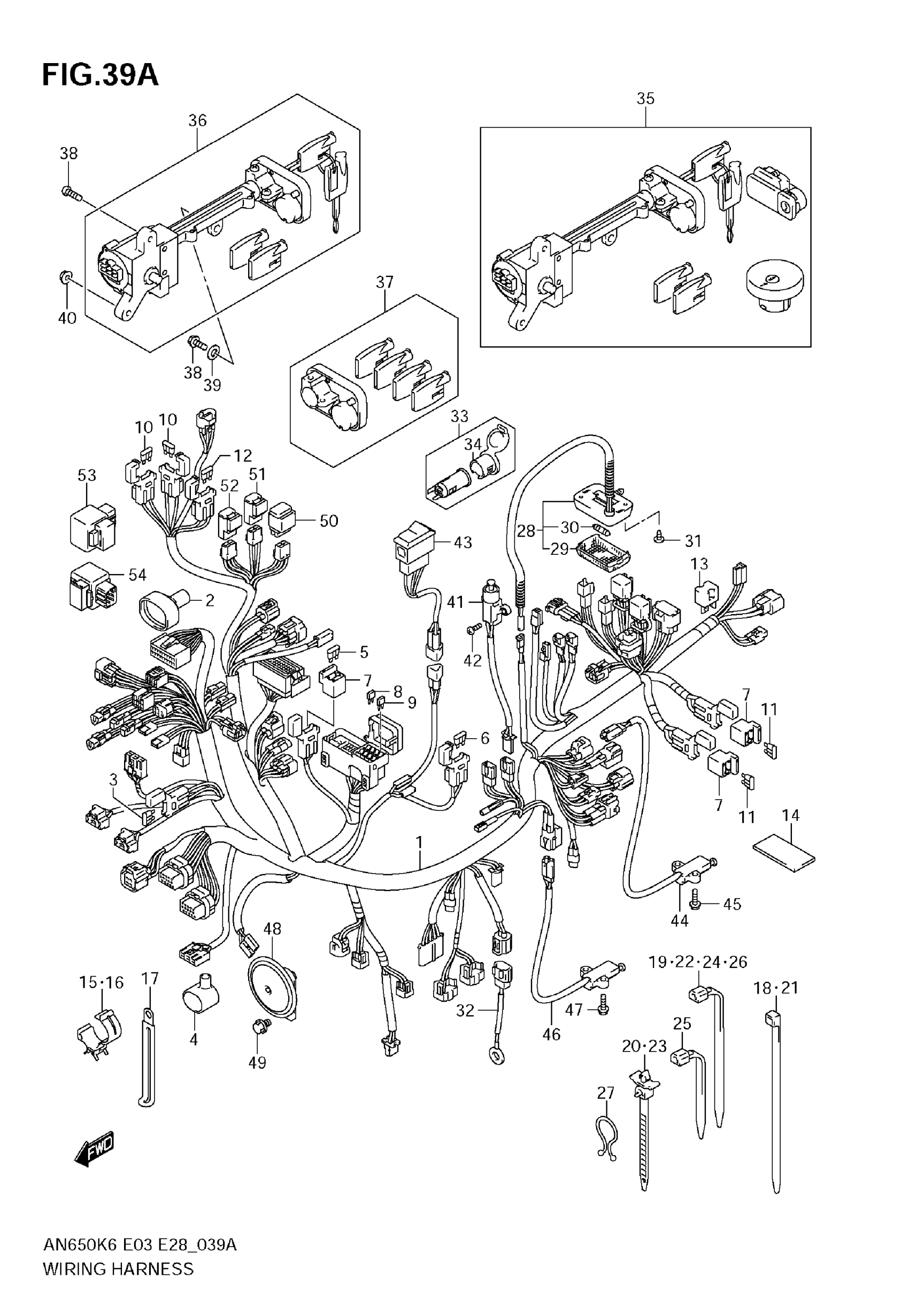

Suzuki AN650 (2009) WIRING HARNESS (AN650AK9) Diagram

#

Description
Price

1

HARNESS, WIRING | E3

36610-19HG0

Unavailable

1

HARNESS, WIRING | E28

36610-19HE0

Unavailable

1

HARNESS, WIRING | E33; Includes Item(s) 2 - 13

36610-19HJ0

Unavailable

2

COVER

36618-21E00

Unavailable

3

FUSE (3A)

09481-03101

Unavailable

4

BOOT

36717-19H00

Unavailable

5

FUSE (10A) | E3,E33

09481-10101

$2.07

6

FUSE (5A) | E28

09481-05101

$1.94

7

HOLDER, FUSE

36742-39D00

$19.15

8

FUSE (10A)

09481-10501

$2.06

9

FUSE (15A)

09481-15501

$2.02

10

FUSE (15A)

09481-15101

$2.53

11

FUSE (40A) | E3,E28

09481-40101

$9.35

12

FUSE (20A) | E33

09481-20101

$2.12

13

DIODE

32800-16A00

$23.07

14

PROTECTOR

36920-08D00

Unavailable

15

CLAMP

09403-25401

Unavailable

16

CLAMP

09403-30403

Unavailable

17

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

18

CLAMP (L:100)

09407-10404

$2.90

19

CLAMP (L:95)

09407-11401

$2.63

20

CLAMP (L:90) | E3,E33

09407-11402

$1.80

21

CLAMP (L:145) | E28

09407-14407

$3.57

22

CLAMP (L:125)

09407-14403

$2.26

23

CLAMP | E3,E33 This part replaces 09407-14408.

09407-17402

$3.93

23

CLAMP | E28 This part replaces 09407-14408.

09407-17402

$3.93

24

CLAMP (L:165)

09407-18402

$2.19

25

CLAMP (L:190)

09407-19401

$3.05

26

CLAMP (L:235)

09407-25401

$4.66

27

CLAMP (ID:11.5)

09408-00012

$2.13

28

LAMP ASSY, TRUNK BOX

36210-10G00

Unavailable

29

LENS

36212-79001

Unavailable

30

BULB (12V,5W)

09471-12073

$3.03

31

SCREW, TRUNK BOX

03541-0412B

$1.49

32

WIRE, OIL PRESSURE SWITCH LEAD

36851-10G00

Unavailable

33

SOCKET ASSY (GRAY) | Includes Item(s) 34

39410-76F00-P4Z

Unavailable

34

COVER (GRAY)

39441-76F00-P4Z

$14.77

35

LOCK SET This part replaces 37103-10841.

37103-10846

$471.45

36

LOCK ASSY,STEER This part replaces 37120-10861.

37120-10865

$328.92

37

SHUTTER, STEERING LOCK

37155-10G01

Unavailable

38

BOLT

09139-06048

$2.14

39

WASHER

09160-06084

$1.78

40

NUT

08316-1006B

$2.50

41

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

42

SCREW

02112-0516B

$1.93

43

SWITCH ASSY, SEAT HEATER | E33

37320-19H00

$124.07

44

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$80.70

45

BOLT

01550-0620B

$2.39

46

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$70.52

47

BOLT

01550-0620B

$2.39

48

HORN ASSY

38500-10G00

Unavailable

49

BOLT, HORN

01550-0812B

$2.73

50

RELAY ASSY, FAN MOTOR

38740-38B00

$63.30

51

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

52

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

53

RELAY ASSY, DRIVE

38750-03G00

$145.53

54

RELAY ASSY, SCREEN

38750-10G00

Unavailable
