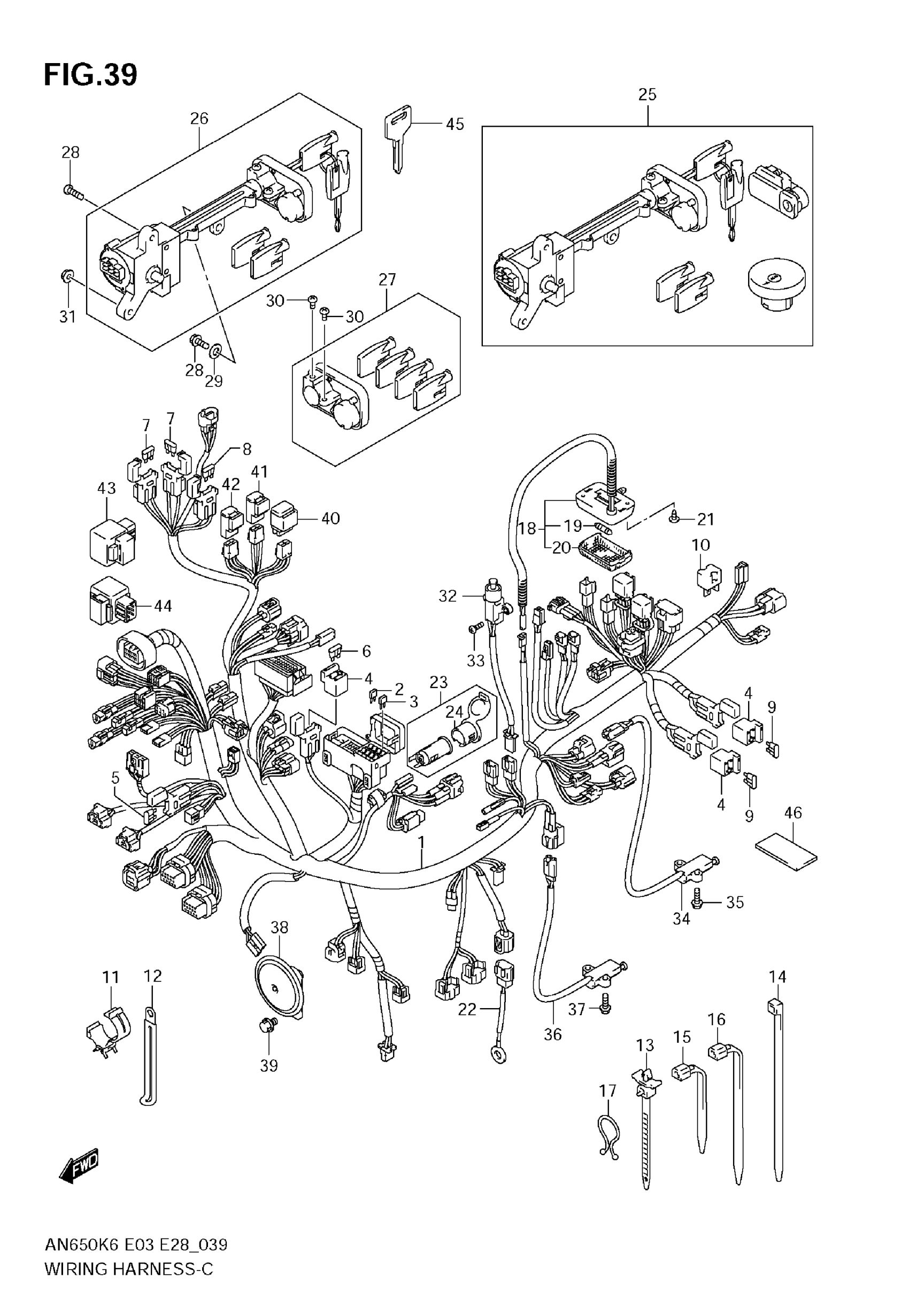

Suzuki AN650 (2009) WIRING HARNESS (AN650AK6/AK7/AK8) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K6

36610-10GM1

Unavailable

1

HARNESS, WIRING | MODEL K7/K8 E3,E28

36610-19H81

Unavailable

1

HARNESS, WIRING | MODEL K7/K8 E33; Includes Item(s) 2 - 10

36610-19HB1

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

HOLDER

36742-39D00

$19.15

5

FUSE (3A)

09481-03101

Unavailable

6

FUSE (10A)

09481-10101

$2.07

7

FUSE (15A)

09481-15101

$2.53

8

FUSE (20A)

09481-20101

$2.12

9

FUSE (40A)

09481-40101

$9.35

10

DIODE

32800-16A00

$23.07

11

CLAMP

09403-25401

Unavailable

11

CLAMP

09403-30403

Unavailable

12

CLAMP (L:45)

09404-06429

$1.83

13

CLAMP (L:90)

09407-11402

$1.80

13

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

14

CLAMP (L:100)

09407-10404

$2.90

15

CLAMP

09407-19401

$3.05

16

CLAMP (L:95)

09407-11401

$2.63

16

CLAMP (L:125)

09407-14403

$2.26

16

CLAMP (L:165)

09407-18402

$2.19

16

CLAMP (L:235)

09407-25401

$4.66

17

CLIP

09408-00012

$2.13

18

LAMP ASSY, TRUNK BOX | Includes Item(s) 19 - 20

36210-10G00

Unavailable

19

BULB (12V,5W)

09471-12073

$3.03

20

LENS

36212-79001

Unavailable

21

SCREW, TRUNK BOX

03541-0412B

$1.49

22

WIRE, OIL PRESSURE SWITCH LEAD

36851-10G00

Unavailable

23

SOCKET ASSY (GRAY) | 12V,120W; Includes Item(s) 24

39410-76F00-P4Z

Unavailable

24

COVER (GRAY)

39441-76F00-P4Z

$14.77

25

LOCK SET This part replaces 37103-10841.

37103-10846

$471.45

26

LOCK ASSY,STEER This part replaces 37120-10861.

37120-10865

$328.92

27

SHUTTER, STEERING LOCK

37155-10G01

Unavailable

28

BOLT, STEERING LOCK

09139-06048

$2.14

29

WASHER, 6.5X18X1.6

09160-06084

$1.78

30

TORX BOLT (5X10)

37159-14G00

Unavailable

31

NUT, STEERING LOCK

08316-1006B

$2.50

32

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

33

SCREW, TRUNK BOX

02112-0516B

$1.93

34

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$80.70

35

BOLT, CENTER STAND

01550-0620B

$2.39

36

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$70.52

37

BOLT, SIDE STAND

01550-0620B

$2.39

38

HORN ASSY

38500-10G00

Unavailable

39

BOLT, HORN

01550-0812B

$2.73

40

RELAY ASSY, FAN MOTOR

38740-38B00

$63.30

41

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

42

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

43

RELAY ASSY, DRIVE

38750-03G00

$145.53

44

RELAY ASSY, SCREEN

38750-10G00

Unavailable

45

KEY, BLANK | OPT

37146-10G00

$38.13

46

PROTECTOR (30X60X3)

36920-08D00

Unavailable
