Description

Price

1

WINDSCREEN

94611-10GA2

$818.28

2

SCREW

02142-0516B

$1.93

3

WASHER

09161-05017

$3.18

4

NUT

09159-05048

$7.22

5

COVER, WINDSCREEN | Includes Item(s) 6 - 8

94640-10G10

$164.72

6

CUSHION, COVER

94642-10GA0

$4.03

7

CUSHION, COVER NO.2

94643-10G01

$4.88

8

EMBLEM, "S"

68641-14G00

$40.35

9

SCREW, COVER

09132-05053

$2.28

10

REGULATOR ASSY, | Includes Item(s) 11 - 14 This part replaces 94600-10GA1.

94600-10GA2

$907.53

11

COVER, RH

94651-10GA1

Unavailable

12

COVER, LH

94661-10GA1

Unavailable

13

NUT

09148-03011

$1.96

14

CUSHION

94652-10GA0

Unavailable

15

SCREW, REGULATOR

07120-0612B

$3.04

16

BOLT, MOTOR

09100-06157

$2.72

17

NUT, MOTOR

08316-1006B

$2.50

18

CLAMP This part replaces 09407-14301.

09407-18302

$2.28

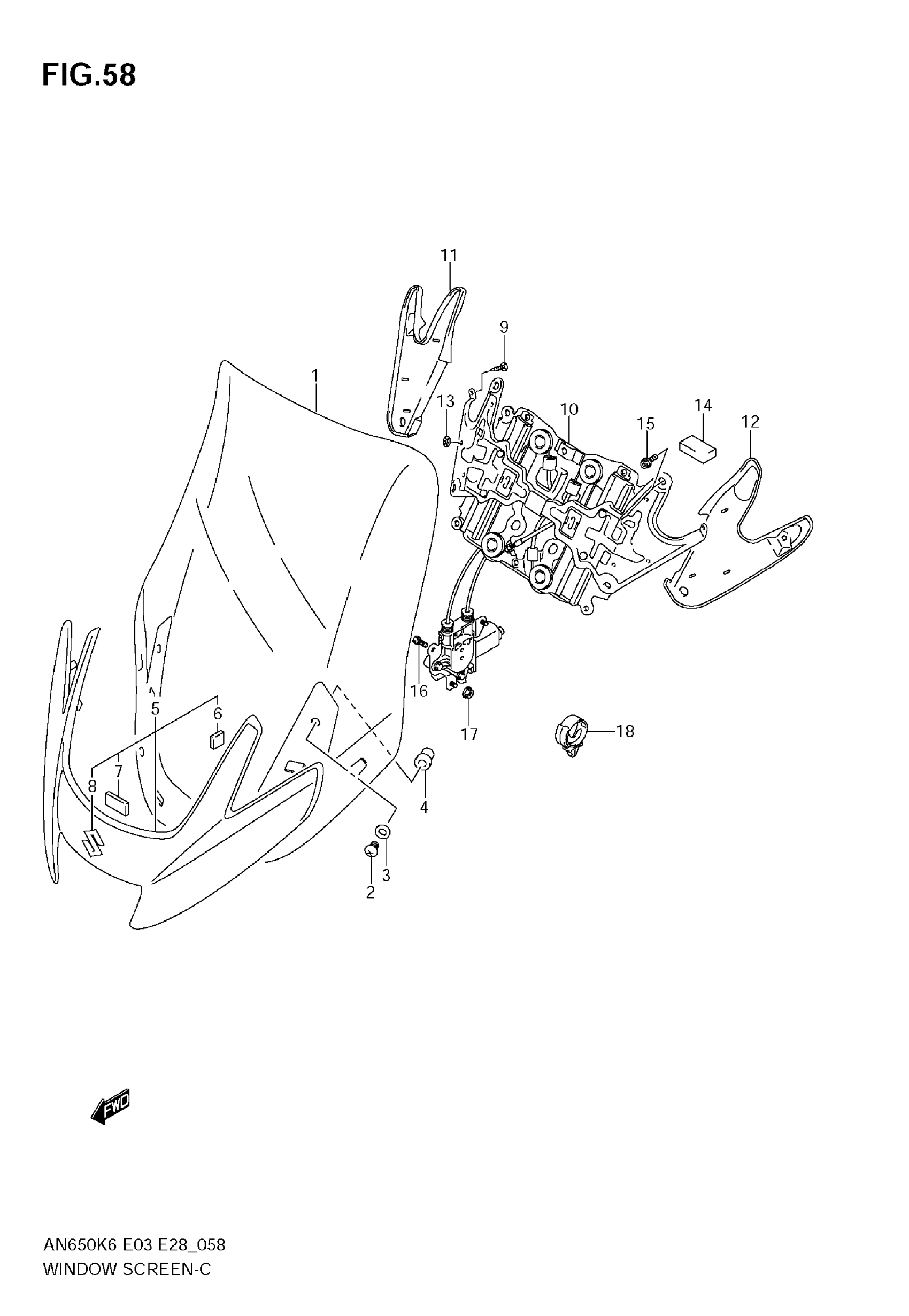

Suzuki AN650 (2009) WIND SCREEN (AN650A) Diagram

WINDSCREEN

SCREW

WASHER

NUT

COVER, WINDSCREEN | Includes Item(s) 6 - 8

CUSHION, COVER

CUSHION, COVER NO.2

EMBLEM, "S"

SCREW, COVER

REGULATOR ASSY, | Includes Item(s) 11 - 14 This part replaces 94600-10GA1.

COVER, RH

COVER, LH

NUT

CUSHION

SCREW, REGULATOR

BOLT, MOTOR

NUT, MOTOR

CLAMP This part replaces 09407-14301.
