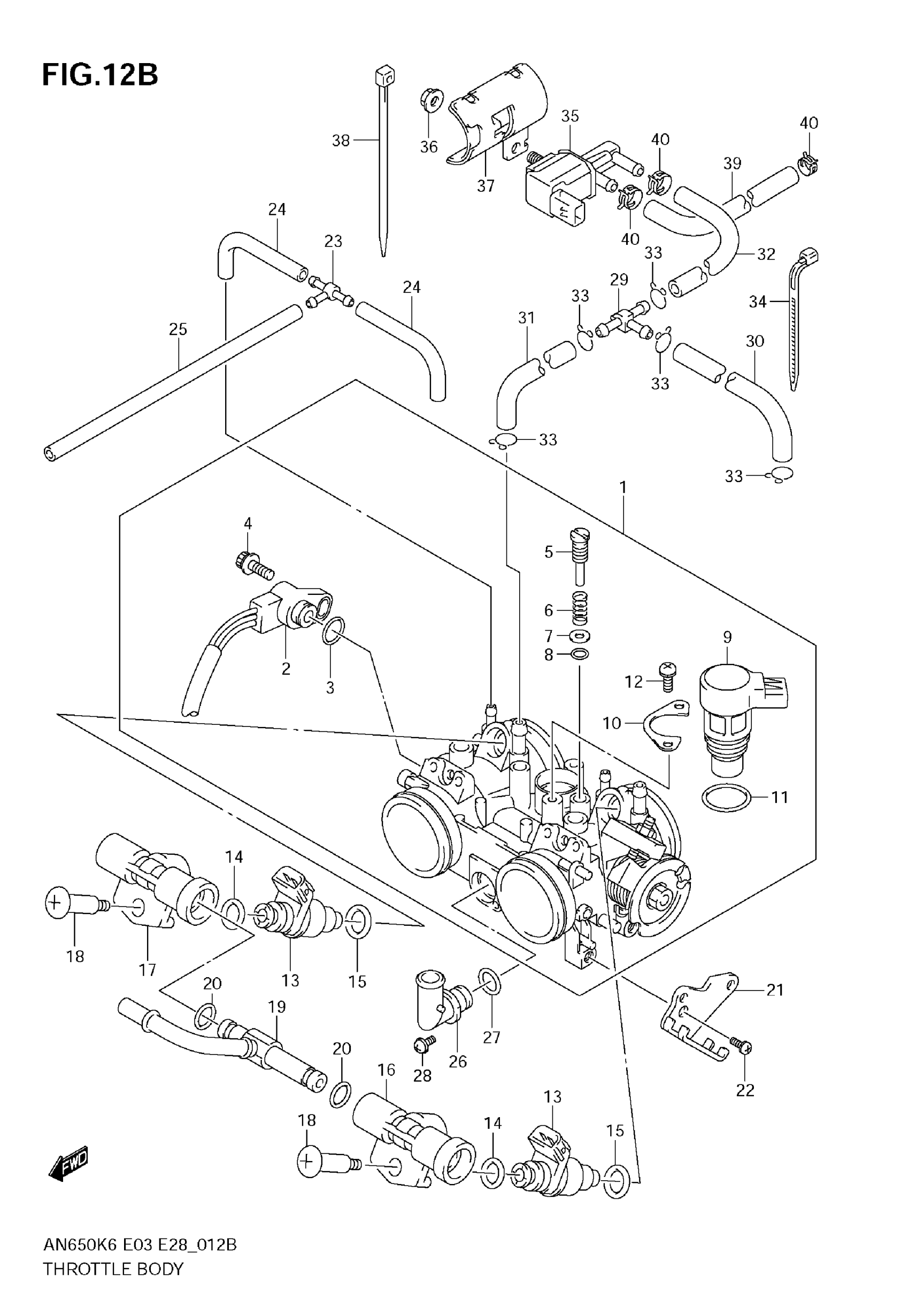

Suzuki AN650 (2009) THROTTLE BODY (MODEL K8/K9) Diagram

#

Description
Price

1

THROTTLE BODY | E3,E28

13406-10G22

Unavailable

1

THROTTLE BODY | E33; Includes Item(s) 2 - 12

13406-10G33

Unavailable

2

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

$249.45

3

O RING

13575-40F00

$4.09

4

BOLT

13613-10G00

Unavailable

5

ADJUST SCREW

13269-18G00

$11.83

6

SPRING

13271-43E00

Unavailable

7

WASHER

13291-26E00

$2.93

8

O RING

13295-26E00

$4.34

9

.VALVE ASSY, ISC This part replaces 18117-15H10.

18117-15H12

$362.80

10

PLATE, ISC VALVE

13428-15H00

Unavailable

11

O RING

18119-05H00

$3.95

12

SCREW

13605-15H00

$7.12

13

INJECTOR ASSY

15710-10G00

$321.43

14

O-RING

15721-10G00

$9.09

15

O RING

15722-10G00

$11.25

16

JOINT

13471-10G00

Unavailable

17

JOINT

13471-10G10

Unavailable

18

SCREW

13601-35F00

$7.50

19

FUEL PIPE

13473-10G00

Unavailable

20

.O-RING

15721-24F00

$9.09

21

PLATE

13565-10G20

Unavailable

22

SCREW

13601-10G00

Unavailable

23

JOINT

13471-24F30

$16.48

24

HOSE (3X7X65)

13683-10G00

Unavailable

25

HOSE (3X7X220)

13683-10G10

Unavailable

26

JOINT

13455-10G00

Unavailable

27

O RING

13278-10G10

Unavailable

28

SCREW

13602-10G00

Unavailable

29

JOINT | E33

13685-36E50

Unavailable

30

HOSE | E33

13698-10G00

Unavailable

31

HOSE | E33

13698-10G10

Unavailable

32

HOSE | E33

13698-10G30

Unavailable

33

CLIP | E33

13693-24F00

$3.22

34

CLAMP | E33

09407-18402

$2.19

35

VALVE ASSY, CANISTER PURGE | E33

18117-52G00

$149.32

36

NUT | E33

08316-1006A

$2.19

37

BRACKET | E33

18119-10G00

Unavailable

38

CLAMP | E33

09407-14407

$3.57

39

HOSE | E33

13680-10G10

Unavailable

40

CLIP (ID:10.5,H:8) | E33

09401-10409

$2.26
