Partiron

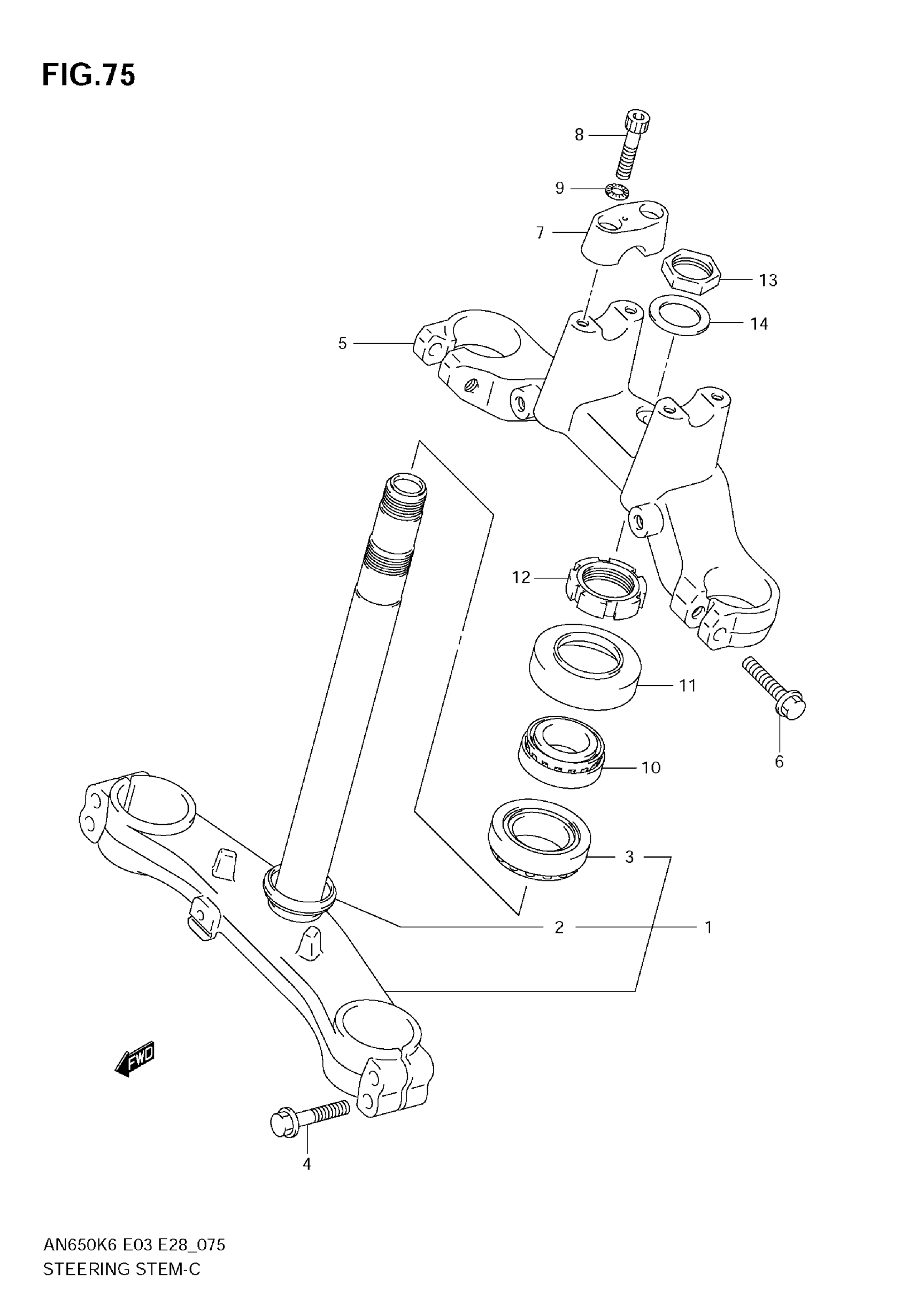

Suzuki AN650 (2009) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-10G70

Unavailable

2

SEAL, LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09265-30020

$44.41

4

BOLT

51451-10G00

$5.11

5

HEAD, STEERING STEM

51311-10G00

Unavailable

6

BOLT

51352-10G00

$6.63

7

HOLDER, HANDLEBAR

56211-10G00

Unavailable

8

BOLT

07130-08307

$3.89

9

LOCK WASHER

09164-08015

$3.21

10

BEARING (25X47X15)

09265-25038

$45.57

11

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

12

NUT, STEM

51631-31F00

$19.87

13

NUT

51353-10G00

Unavailable

14

WASHER

51356-10D03

$7.50
