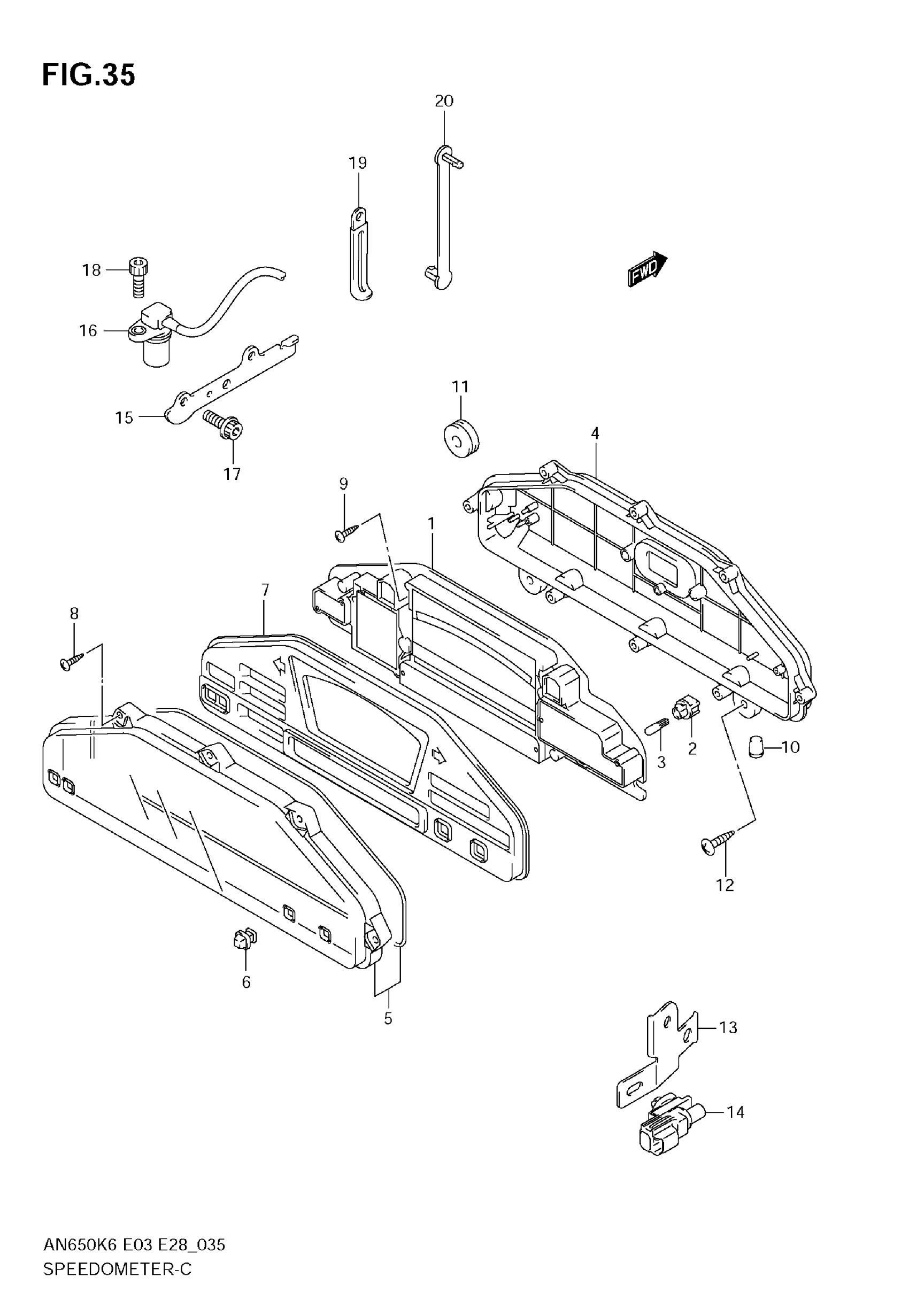

Suzuki AN650 (2009) SPEEDOMETER (AN650AK6) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-10GK0

Unavailable

1

SPEEDOMETER (KILO) | E28

34120-10GL0

Unavailable

2

SOCKET

34175-78900

Unavailable

3

BULB (12V,1.4W)

09471-12055

$5.60

4

LOWER CASE

34111-10GF0

Unavailable

5

GLASS ASSY

34150-10GF0

$147.77

6

RUBBER, SWITCH

34124-32F00

$5.75

7

REFLECTOR ASSY

34125-10G00

Unavailable

8

SCREW (3X16)

34383-35F00

$3.23

9

SCREW (4X12)

34149-10G00

Unavailable

10

CUSHION,SPEEDOM This part replaces 34955-10G00.

34955-10G01

$3.03

11

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

12

SCREW

03541-0520A

$1.80

13

BRACKET, SNSR AMBIENT AIR TEMP

34898-10G00

Unavailable

14

SENSOR, AMBIENT AIR TEMP

95643-58J00

$50.50

15

GUIDE, SENSOR LEAD

34938-10G00

Unavailable

16

SENSOR,SPEED This part replaces 34990-10G30.

34990-10G31

$135.48

17

BOLT, SENSOR GUIDE

07120-0612A

$2.50

18

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

19

CLAMP, SENSOR (L:80)

09404-0643A

Unavailable

20

CLAMP (L:63)

36651-48E00

$3.25
