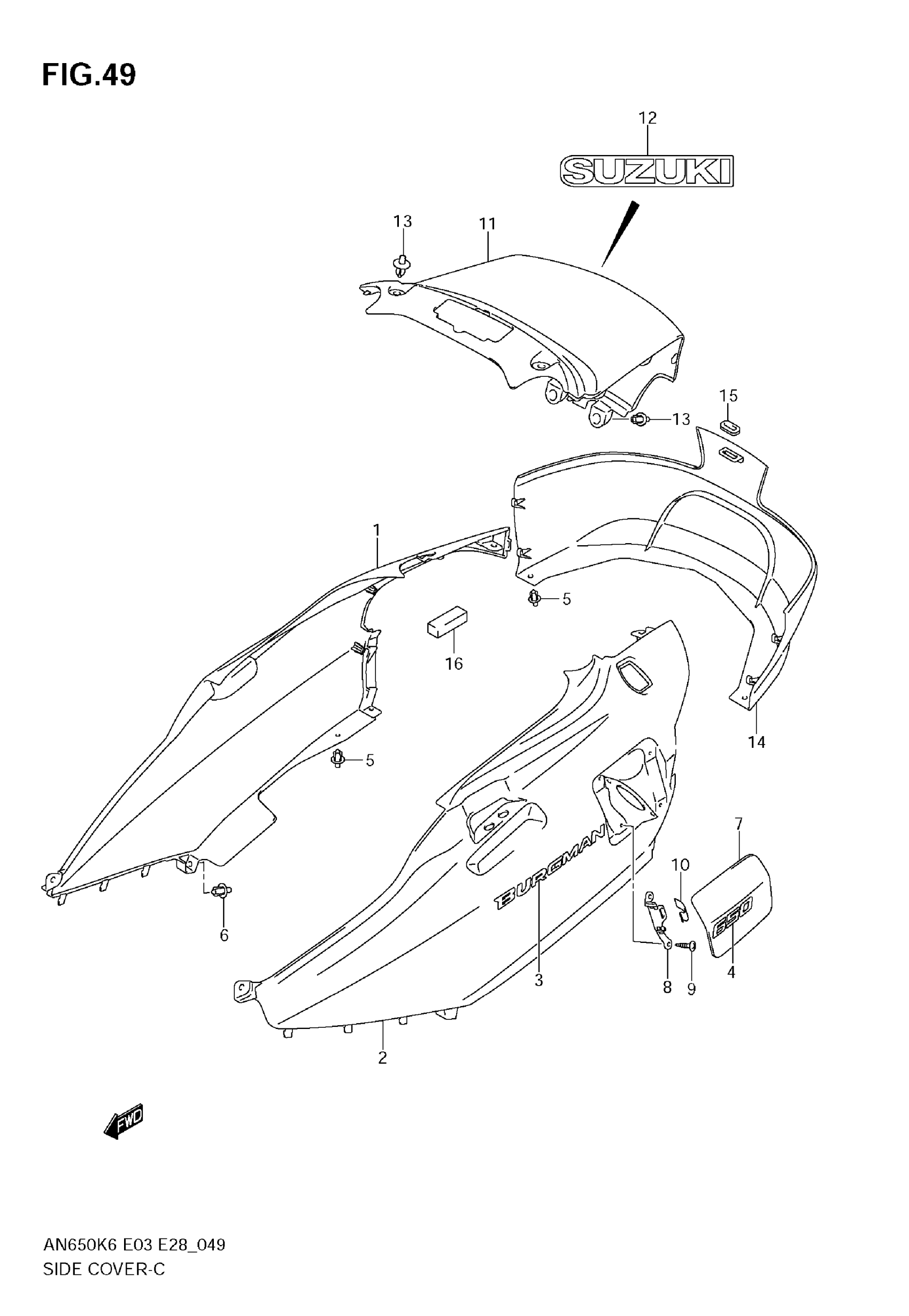

Suzuki AN650 (2009) SIDE COVER (AN650K6/K7) Diagram

#

Description
Price

1

COVER,SIDE,R(NO | MODEL K6 This part replaces 47111-10G11-YC3.

47111-10G20

Unavailable

1

COVER, SIDE RH (GRAY) | MODEL K6 This part replaces 47111-10G11-YHG.

47111-10G20-YHG

Unavailable

1

COVER,SIDE,R(NO | MODEL K7 This part replaces 47111-10G20-YC3.

47111-10G20

Unavailable

1

COVER, SIDE RH (GRAY) | MODEL K7

47111-10G20-YHF

Unavailable

2

COVER,SIDE,L This part replaces 47211-10G31-YC3.

47211-10G32-YC3

Unavailable

2

COVER, SIDE LH (GRAY) | MODEL K6

47211-10G31-YHG

Unavailable

2

COVER, SIDE LH (GRAY) | MODEL K7

47211-10G31-YHF

Unavailable

3

EMBLEM, SIDE COVER

68131-10G10

$69.90

4

EMBLEM, "650"

68131-10GA0

$31.02

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

CLIP (BLACK)

09409-08308-5ES

$1.97

7

LID, FUEL (WHITE)

47381-10G11-YC3

$52.15

7

LID, FUEL (GRAY) | MODEL K6

47381-10G11-YHG

$51.20

7

LID, FUEL (GRAY) | MODEL K7

47381-10G11-YHF

$53.13

8

HINGE

47382-10G10

$7.92

9

SCREW | MODEL K6 This part replaces 03541-05123.

03541-0512A

$1.37

9

SCREW | MODEL K7

03541-0512B

$1.77

10

SPRING, LID This part replaces 47388-10G00.

47388-10G01

$4.67

11

CVR,FRAME CTR(N This part replaces 47311-10G01-YC3.

47311-10G01

Unavailable

11

COVER, FRAME CENTER (GRAY) | MODEL K6

47311-10G01-YHG

Unavailable

11

CVR,FRAME CTR(N | MODEL K7 This part replaces 47311-10G01-YHF.

47311-10G01

Unavailable

12

EMBLEM,"SUZUKI" | FOR YC3 This part replaces 68271-34A00-YJH.

68271-34A01-YJH

Unavailable

12

.EMBLEM,"SUZUKI" (SILVER) | FOR YHG,YHF This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

13

CLIP (BLACK)

09409-08308-5ES

$1.97

14

COVER, FRAME LOWER (WHITE)

47321-10G00-YC3

$156.80

14

COVER, FRAME LOWER (GRAY) | MODEL K6

47321-10G00-YHG

$153.92

14

COVER, FRAME LOWER (GRAY) | MODEL K7

47321-10G00-YHF

$156.80

15

CUSHION This part replaces 09320-04008.

09320-04012

$2.80

16

CUSHION, FRAME COVER

47115-10G00

$4.82
