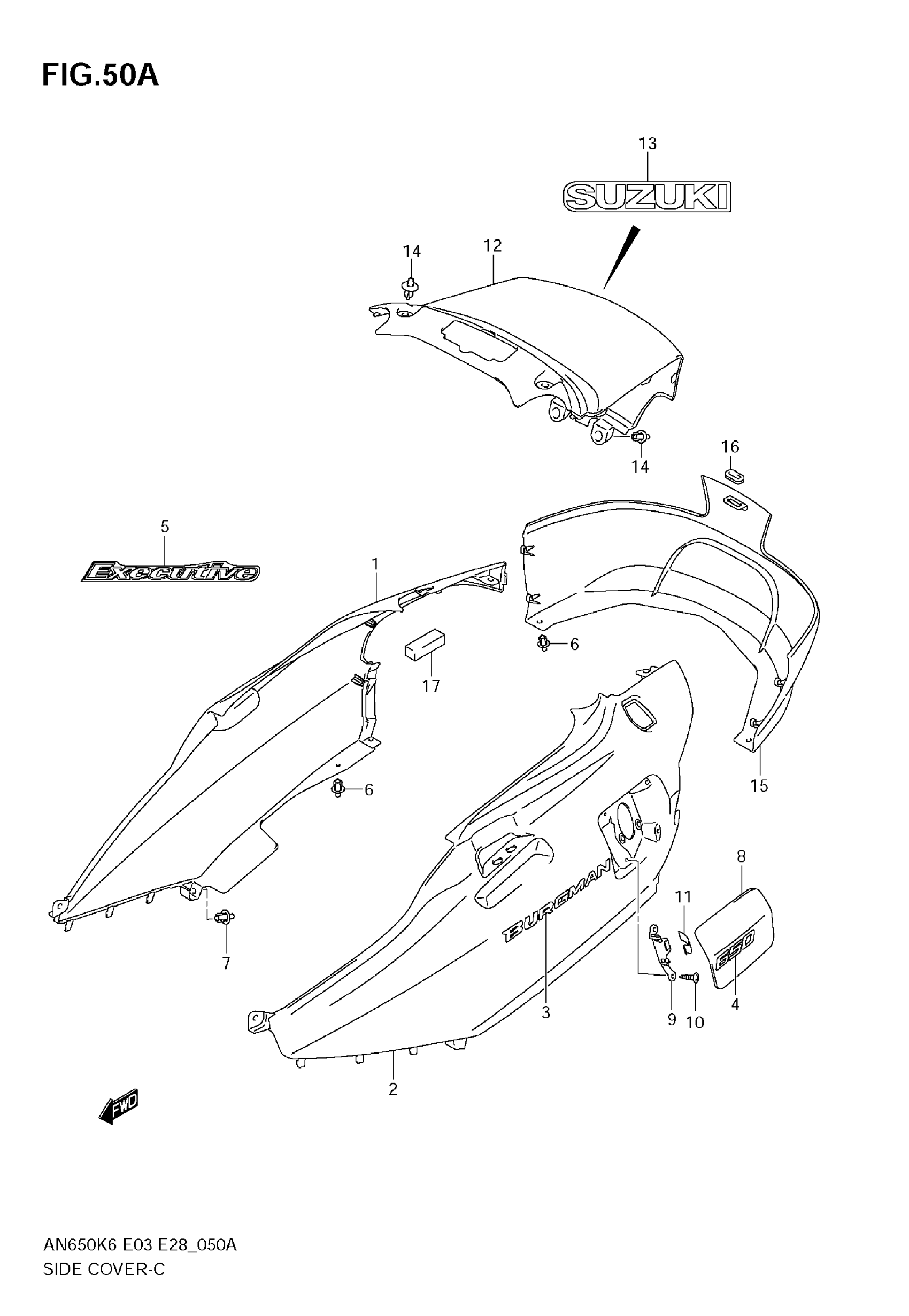

Suzuki AN650 (2009) SIDE COVER (AN650AK8) Diagram

#

Description
Price

1

COVER, SIDE RH (GRAY)

47111-10G20-YHG

Unavailable

1

COVER, SIDE RH (BLACK)

47111-10G20-YAY

$474.05

1

COVER, SIDE RH (BLUE)

47111-10G20-YBA

Unavailable

2

COVER, SIDE LH (GRAY)

47211-10G31-YHG

Unavailable

2

COVER, SIDE LH (BLACK)

47211-10G31-YAY

Unavailable

2

COVER, SIDE LH (BLUE)

47211-10G31-YBA

Unavailable

3

EMBLEM, SIDE COVER

68131-10G10

$69.90

4

EMBLEM, "650"

68131-10GA0

$31.02

5

EMBLEM, "EXECUTIVE" | FOR YHG

68165-10GB0-DAZ

$16.67

5

EMBLEM, "EXECUTIVE" | FOR YAY

68165-10GB0-BVY

Unavailable

5

EMBLEM, "EXECUTIVE" | FOR YBA

68165-10GB0-BVZ

Unavailable

6

CLIP (BLACK)

09409-06314-5PK

$2.80

7

CLIP (BLACK)

09409-08308-5ES

$1.97

8

LID, FUEL (GRAY)

47381-10G11-YHG

$51.20

8

LID, FUEL (BLACK)

47381-10G11-YAY

$49.52

8

LID, FUEL (BLUE)

47381-10G11-YBA

$36.99

9

HINGE

47382-10G10

$7.92

10

SCREW

03541-0512B

$1.77

11

SPRING, LID

47388-10G01

$4.67

12

COVER, FRAME CENTER (GRAY)

47311-10G11-YHG

$107.15

12

COVER, FRAME CENTER (BLACK)

47311-10G11-YAY

$107.15

12

COVER, FRAME CENTER (BLUE)

47311-10G11-YBA

Unavailable

13

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

14

CLIP (BLACK)

09409-08308-5ES

$1.97

15

COVER, FRAME LOWER (GRAY)

47321-10G00-YHG

$153.92

15

COVER, FRAME LOWER (BLACK)

47321-10G00-YAY

$151.03

15

COVER, FRAME LOWER (BLUE)

47321-10G00-YBA

Unavailable

16

CUSHION This part replaces 09320-04008.

09320-04012

$2.80

17

CUSHION, FRAME COVER

47115-10G00

$4.82
