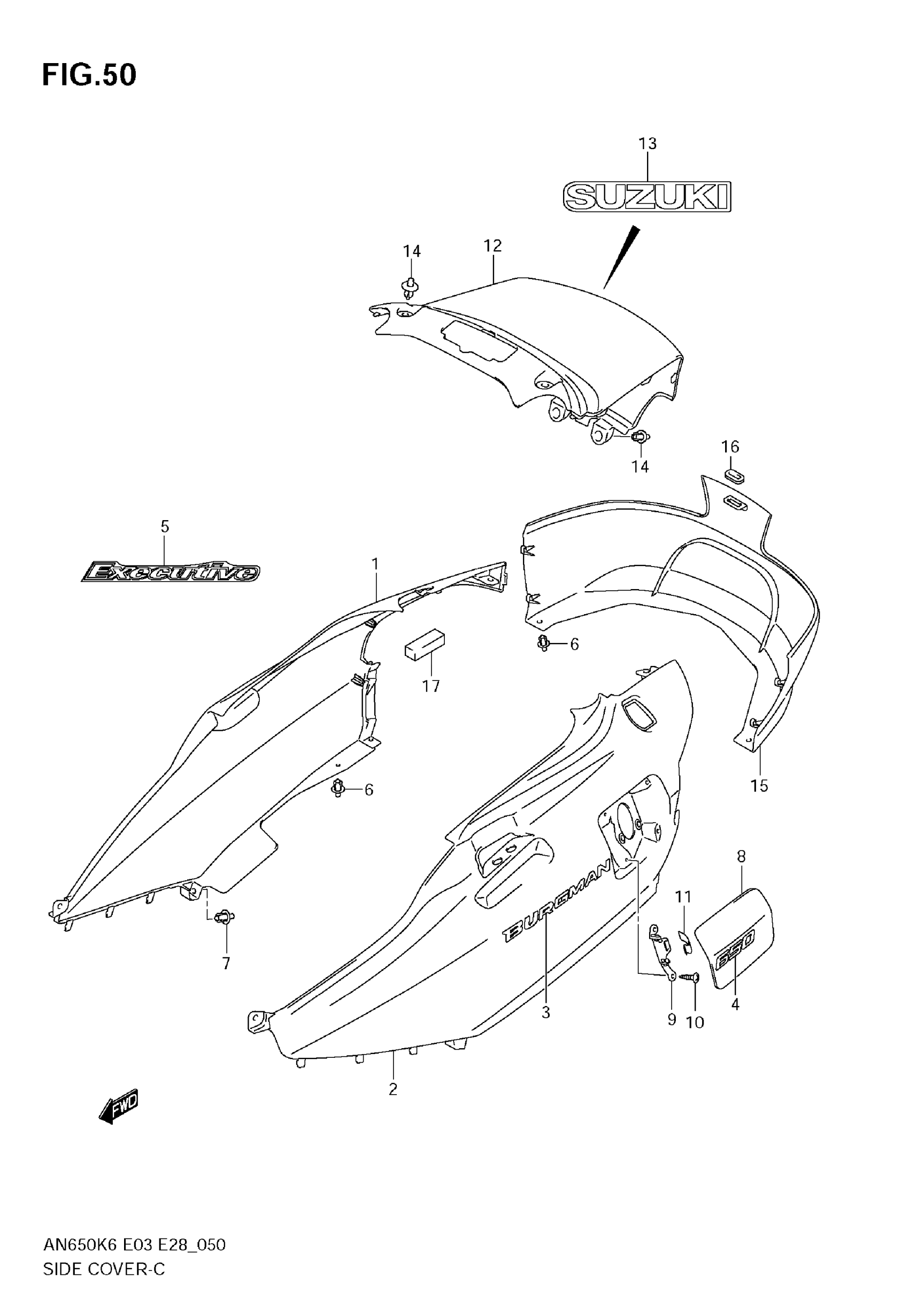

Suzuki AN650 (2009) SIDE COVER (AN650AK6/K7/AK7) Diagram

#

Description
Price

1

COVER, SIDE RH (GRAY) | E28 This part replaces 47111-10G11-YHF.

47111-10G20-YHF

Unavailable

1

COVER, SIDE RH (GRAY) | MODEL K6 This part replaces 47111-10G11-YHG.

47111-10G20-YHG

$390.80

1

COVER, SIDE RH (BLUE) | E28

47111-10G11-YKZ

Unavailable

1

COVER, SIDE RH (GRAY) | E28

47111-10G20-YHG

$390.80

1

COVER, SIDE RH (GRAY) | E28

47111-10G20-YHF

Unavailable

1

COVER, SIDE RH (RED) | MODEL K7

47111-10G20-YHL

Unavailable

2

COVER, SIDE LH (GRAY) | E28

47211-10G31-YHF

Unavailable

2

COVER, SIDE LH (GRAY) | MODEL K6

47211-10G31-YHG

Unavailable

2

COVER, SIDE LH (BLUE) | E28

47211-10G31-YKZ

Unavailable

2

COVER,SIDE,L | MODEL K7 This part replaces 47211-10G31-YHL.

47211-10G31

Unavailable

3

EMBLEM, SIDE COVER

68131-10G10

$61.93

4

EMBLEM, "650"

68131-10GA0

$28.27

5

EMBLEM, "EXECUTIVE" | E28

68165-10GB0-DAY

Unavailable

5

EMBLEM, "EXECUTIVE" | FOR YHG

68165-10GB0-DAZ

$14.77

5

EMBLEM, "EXECUTIVE" | E28

68165-10GB0-DBA

Unavailable

5

EMBLEM, "EXECUTIVE" | FOR YHL

68165-10GB0-ECB

Unavailable

6

CLIP (BLACK)

09409-06314-5PK

$2.78

7

CLIP (BLACK)

09409-08308-5ES

$1.97

8

LID, FUEL (GRAY) | E28

47381-10G11-YHF

$47.07

8

LID, FUEL (GRAY) | MODEL K6

47381-10G11-YHG

$45.37

8

LID, FUEL (BLUE) | E28

47381-10G11-YKZ

Unavailable

8

LID, FUEL (RED) | MODEL K7

47381-10G11-YHL

Unavailable

9

HINGE

47382-10G10

$8.65

10

SCREW | MODEL K6 This part replaces 03541-05123.

03541-0512A

$1.49

10

SCREW | MODEL K7

03541-0512B

$1.78

11

SPRING, LID This part replaces 47388-10G00.

47388-10G01

$5.11

12

COVER, FRAME CENTER (GRAY) | E28

47311-10G11-YHF

Unavailable

12

COVER, FRAME CENTER (GRAY) | MODEL K6

47311-10G11-YHG

$95.40

12

COVER, FRAME CENTER (BLUE) | E28

47311-10G11-YKZ

Unavailable

12

COVER,FRAME CEN | MODEL K7 This part replaces 47311-10G11-YHL.

47311-10G11

$28.38

13

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

14

CLIP (BLACK)

09409-08308-5ES

$1.97

15

COVER, FRAME LOWER (GRAY) | E28

47321-10G00-YHF

$139.60

15

COVER, FRAME LOWER (GRAY) | MODEL K6

47321-10G00-YHG

$137.03

15

COVER, FRAME LOWER (BLUE) | E28

47321-10G00-YKZ

Unavailable

15

COVER, FRAME LOWER (RED) | MODEL K7

47321-10G00-YHL

Unavailable

16

CUSHION This part replaces 09320-04008.

09320-04012

$2.91

17

CUSHION, FRAME COVER

47115-10G00

$4.27
