Description

Price

1

SHAFT, DRIVE

24131-10G00

$158.73

2

GEAR, FINAL DRIVEN | NT:40

24371-10G00

$149.92

3

BUSH, FINAL DRIVEN GEAR

24632-10G00

$43.65

4

DOG, OUTPUT CAM This part replaces 24922-10G00.

24922-26J00

$54.13

5

STOPPER, CAM SPRING

24923-10G00

$47.48

6

HOUSING, OIL SEAL

24943-10G00

Unavailable

7

BOLT, DRIVE SHAFT HOUSING | 8X20

09106-08161

$3.70

8

NUT This part replaces 09140-16001.

09140-16005

$3.75

9

WASHER, DRIVE SHAFT | 16X29X4

09160-16029

$6.35

10

BEARING, DRIVE SHAFT LH | 25X52X13

09262-25136

$45.80

11

BEARING, DRIVE SHAFT RH | 30X55X13

09262-30113

$49.77

12

O RING (D:2.4,ID:44.7)

09280-45004

$3.68

13

SEAL,OIL (25X45X5) | 25X45X5

09283-25076

$10.19

14

SPRING, DAMPER CAM

09440-45004

$28.90

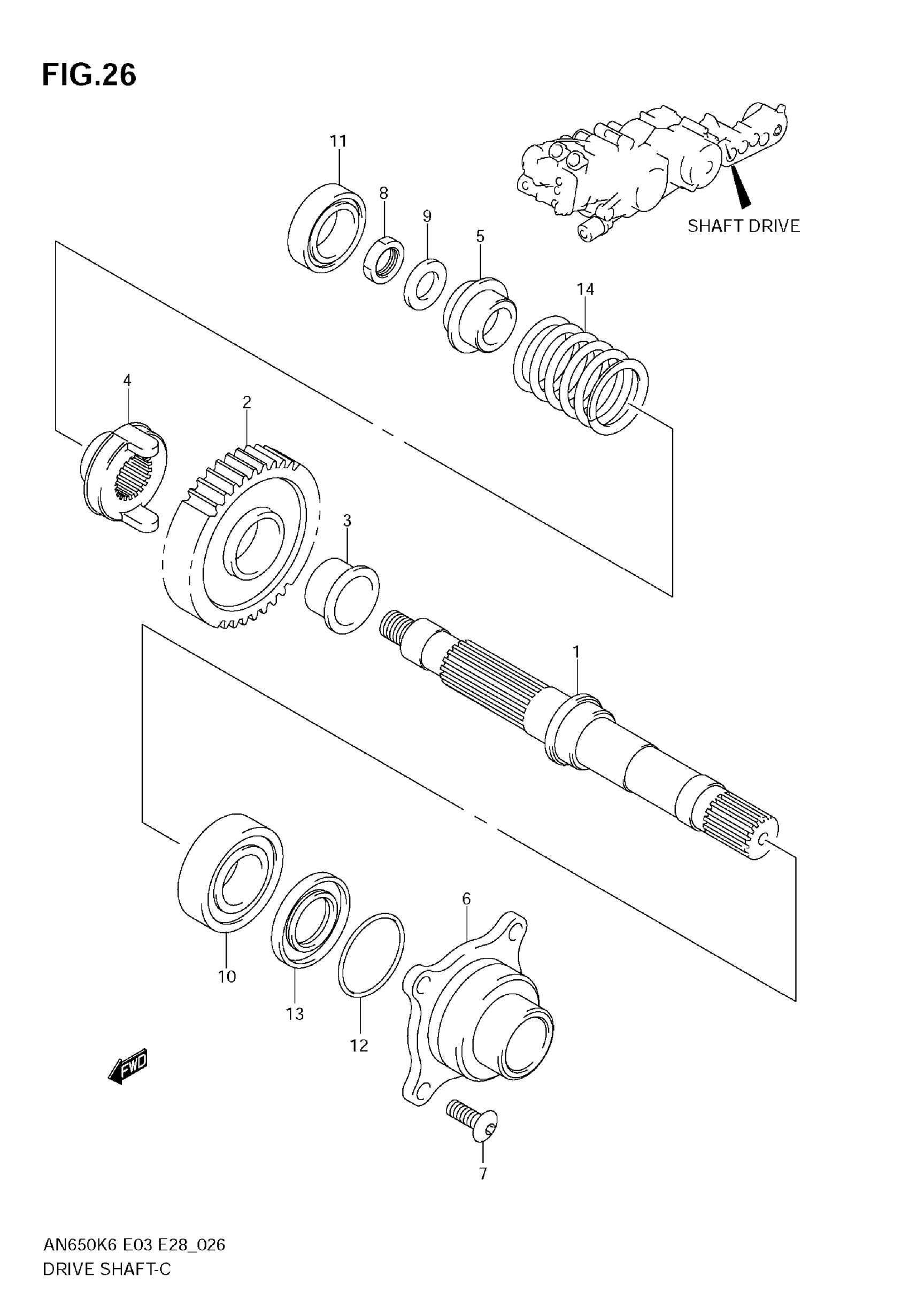

Suzuki AN650 (2009) SHAFT DRIVE Diagram
