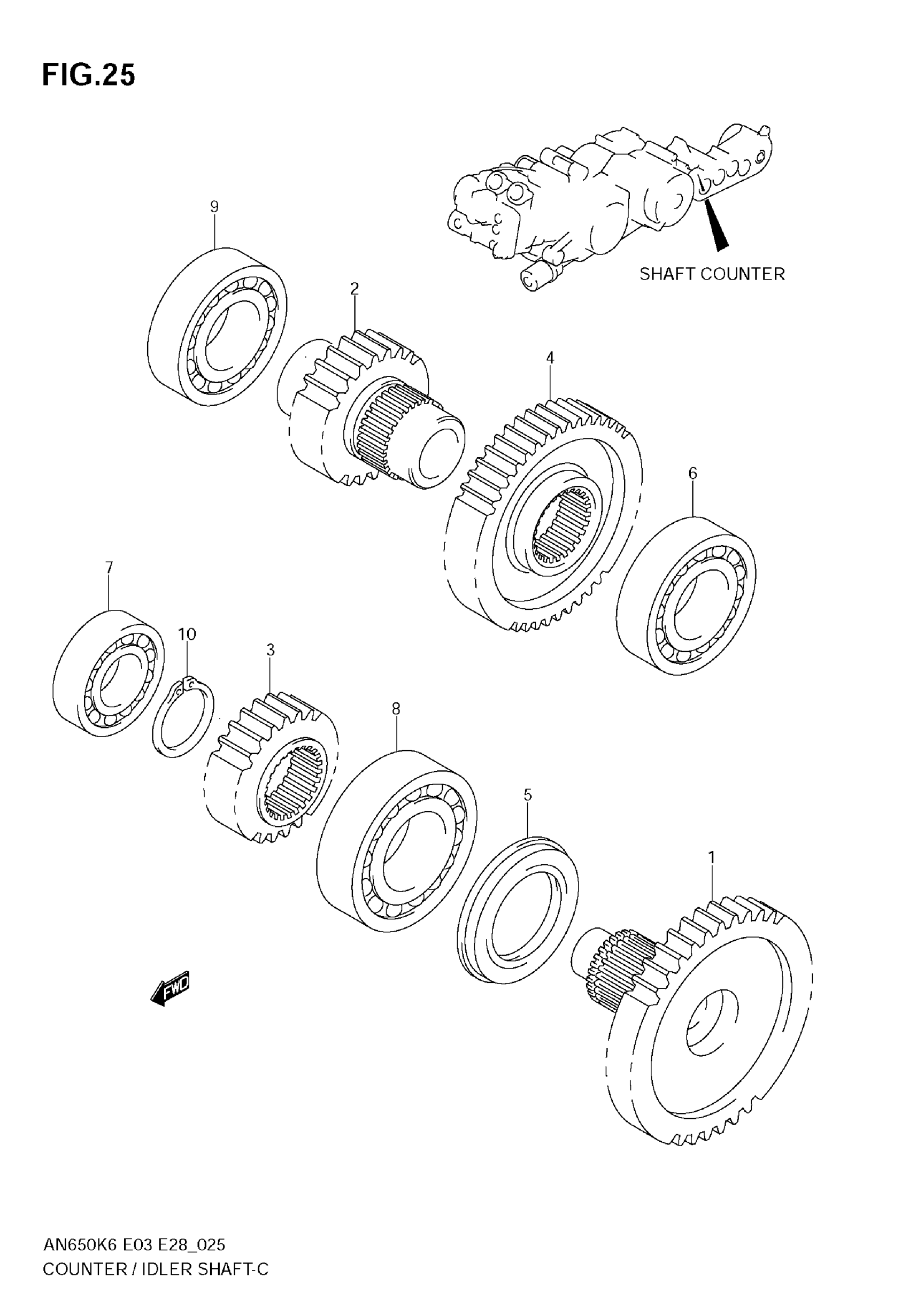

Suzuki AN650 (2009) SHAFT COUNTER/IDLER Diagram

#

Description

Price

1

SHAFT, COUNTER | MODEL K6,NT:39

24121-10G20

Unavailable

1

SHAFT, COUNTER | MODEL K7/K8/K9,NT:39

24121-10G30

$189.27

2

SHAFT, IDLE | NT:22

24151-10G20

$119.18

3

GEAR, IDLER DRIVE | NT:25

24331-10G00

$80.38

4

GEAR, IDLER DRIVEN | NT:43

24381-10G00

$118.08

5

SEAL, COUNTER SHAFT LH

09283-35015

$19.38

6

BEARING, IDLE SHAFT LH | 30X55X13

09262-30113

$49.77

7

BEARING, COUNTER SHAFT RH | 20X47X14

09262-20069

$23.28

8

BEARING, COUNTER SHAFT LH

08113-62060

$34.25

9

BEARING, IDLE SHAFT RH

08113-62060

$34.25

10

CIRCLIP This part replaces 08331-3128A.

08331-31289

$2.19
