2009 Suzuki AN650 Seat Rail Diagram

← All diagrams

Find the part on the Seat Rail diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

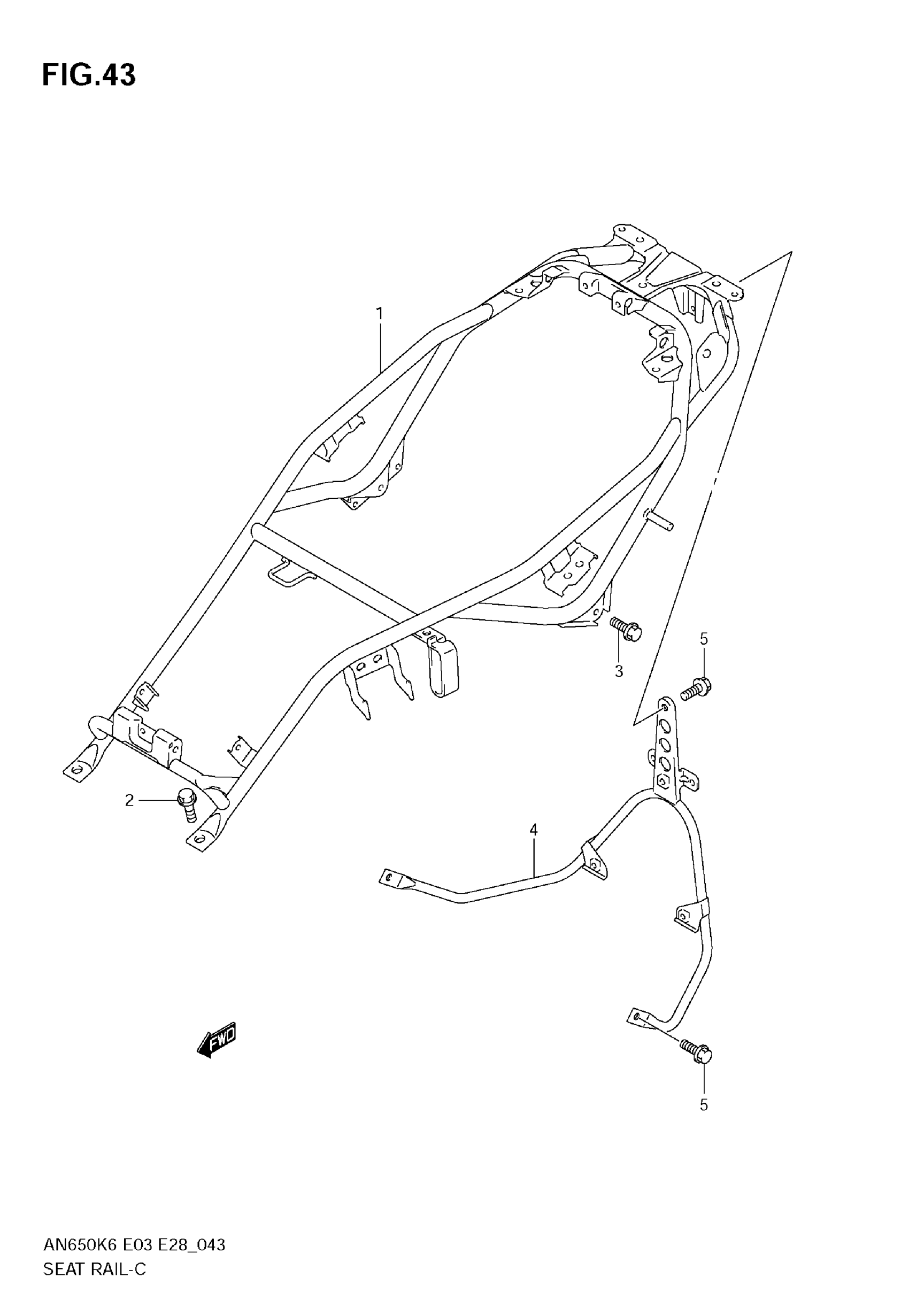

2009 Suzuki AN650 Seat Rail Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RAIL, SEAT | MODEL K6/K7 This part replaces 41200-10G12.

41200-10G13

1
Out of stock

1

RAIL, SEAT | MODEL K8/K9

41200-10G13

1
Out of stock

2

BOLT (8X16) | MODEL K6 This part replaces 01550-08163.

01550-0816A

2
Out of stock

2

BOLT, FRONT | MODEL K7/K8/K9

01560-0816B

—
Out of stock

3

BOLT, REAR

09106-10062

2
Out of stock

4

BRACE, REAR FRAME

41580-10G01

1
Out of stock

5

BOLT

01550-0612B

3
Out of stock
