Partiron

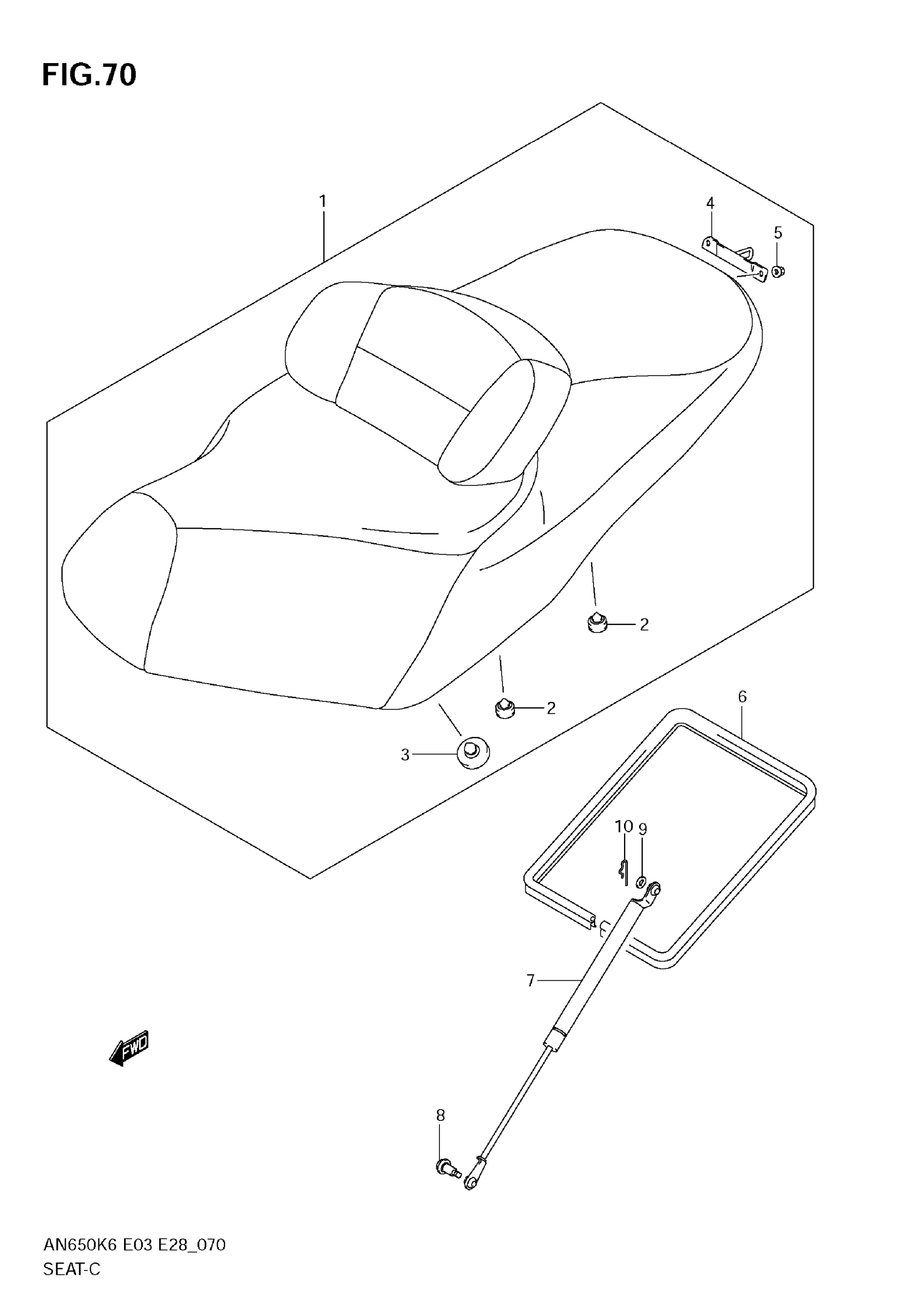

Suzuki AN650 (2009) SEAT Diagram

#

Description
Price

1

SEAT ASSY | AN650 This part replaces 45100-10G32-FC8.

45100-10G33-FC8

$1,319.30

1

SEAT ASSY (BLACK) | AN650AK6/AK7/AK8 This part replaces 45100-10G32-BYA.

45100-10G33-BYA

Unavailable

1

SEAT ASSY (BLACK) | AN650AK9:E3,E33 This part replaces 45100-10G32-BYA.

45100-10G33-BYA

Unavailable

1

SEAT ASSY | AN650AK9:E28; Includes Item(s) 2 - 5

45100-10G70-BYA

Unavailable

2

CUSHION

09321-10002

$2.22

3

CUSHION, FRONT

09321-12001

$5.72

4

STRIKER, SEAT LOCK

45210-10G00

$27.23

5

NUT

09159-06085

Unavailable

6

MOLDING, SEAT | MODEL K6 This part replaces 45211-10G00.

45211-10G10

Unavailable

6

MOLDING, SEAT | MODEL K7/K8/K9

45211-10G10

Unavailable

7

DAMPER ASSY,SEA This part replaces 45270-10G00.

45270-10G01

$89.95

8

BOLT, SEAT DAMPER LOWER | MODEL K6

09111-06079

$5.11

8

BOLT, SEAT DAMPER LOWER | MODEL K7/K8/K9

09111-06097

Unavailable

9

WASHER

08322-0108B

$2.34

10

PIN

09385-08003

$1.72
