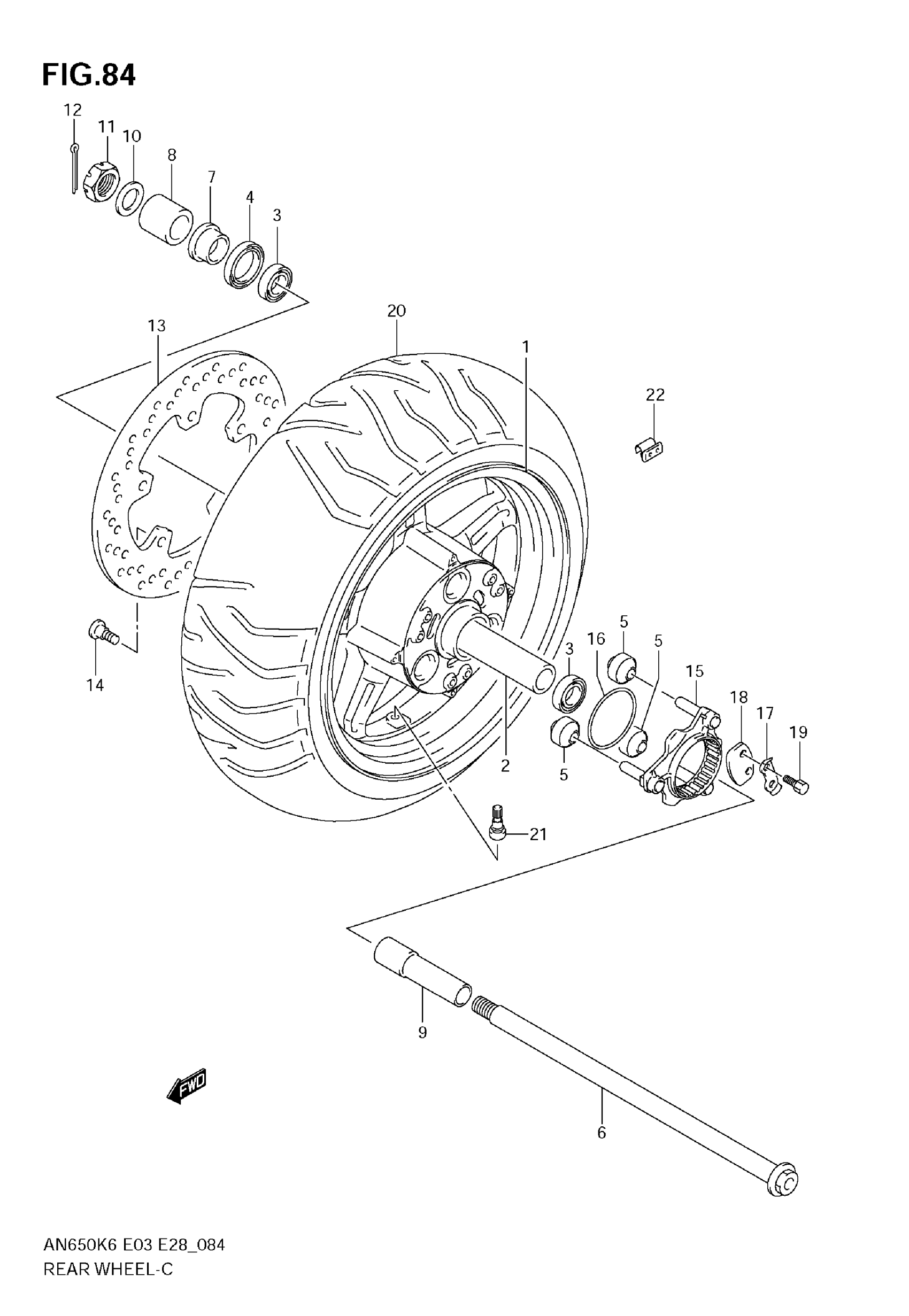

Suzuki AN650 (2009) REAR WHEEL (AN650K6) Diagram

#

Description
Price

1

WHEEL, REAR (14M/CXMT4.50) (SILVER)

64111-10G10-YD8

$974.40

2

SPACER, REAR HUB BEARING

64731-10G00

$40.98

3

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

4

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

5

BUSH, REAR HUB

09319-12062

$16.00

6

AXLE, REAR

64711-10G10

Unavailable

7

SPACER, RR AXLE RH

64741-10F00

$20.76

8

SPACER, REAR AXLE RH NO.1

64751-10G10

$15.75

9

SPACER, REAR AXLE LH

64772-10G00

Unavailable

10

WASHER

08322-0118B

$2.70

11

NUT

08314-40187

$5.64

12

PIN, COTTER

04111-4040A

$1.49

13

DISC, REAR BRAKE

69211-10G10

$283.60

14

BOLT, DISC

09106-08160

$3.57

15

JOINT ASSY, REAR HUB DRIVEN

64680-10G20

Unavailable

16

O RING, DRIVEN JOINT

09280-65003

$3.72

17

WASHER, JOINT

09169-06030

$3.15

18

WASHER, THRUST

64677-10G00

Unavailable

19

BOLT, DRIVEN JOINT WASHER

09119-06049

$1.56

20

TIRE, REAR, 160/60R14M/C 65H (BRIDGESTONE) | TH01 R RADIAL

65110-10G00

$337.17

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

22

BALANCER, WHEEL (10G)

43222-73H10

$5.82

22

BALANCER, WHEEL (20G)

43224-73H10

$5.50

22

BALANCER, WHEEL (30G)

43226-73H10

$6.42
