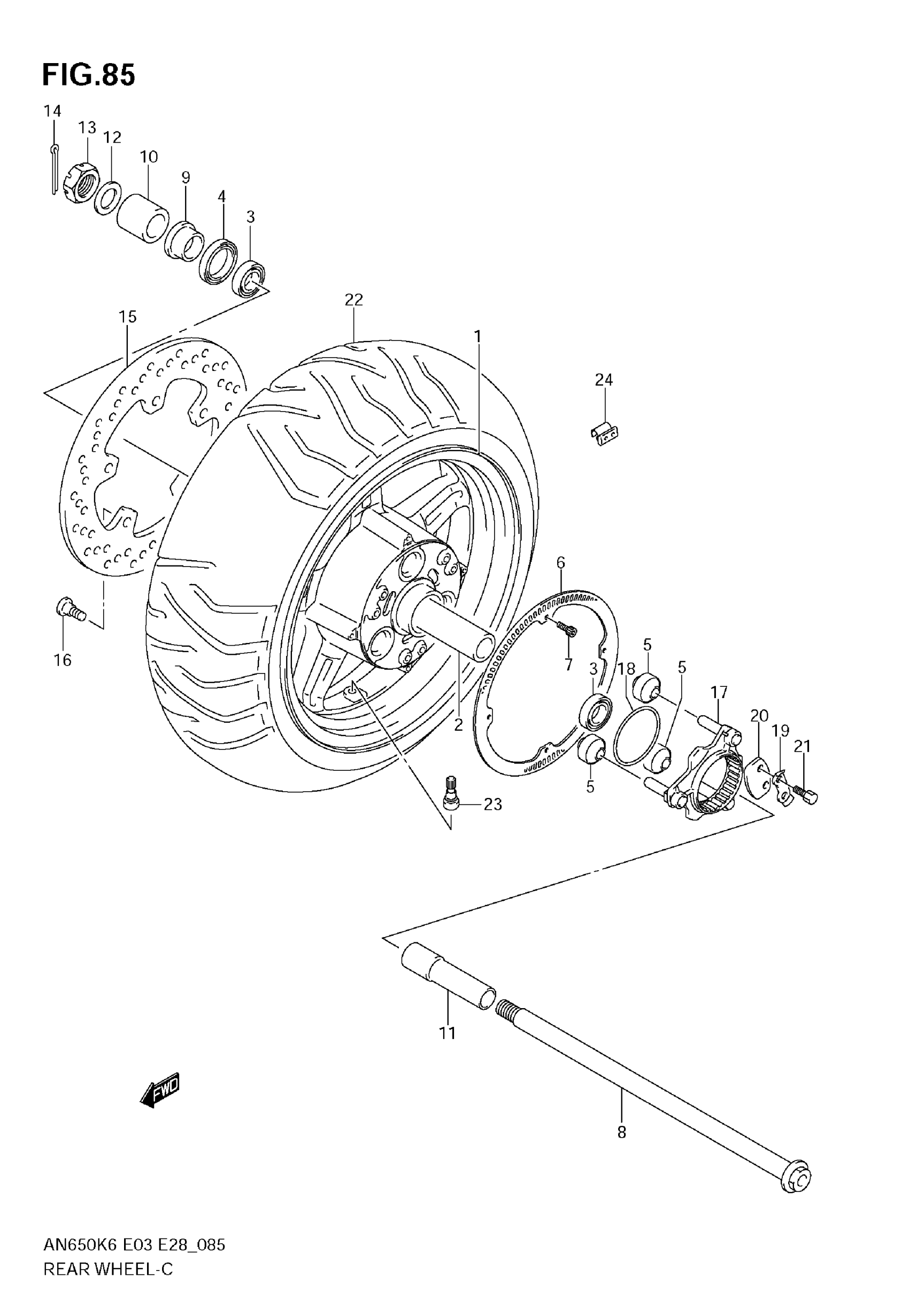

Suzuki AN650 (2009) REAR WHEEL (AN650AK6) Diagram

#

Description
Price

1

WHEEL, REAR (14M/CXMT4.50) (SILVER)

64111-10G20-YD8

$1,094.05

2

SPACER, REAR HUB BEARING

64731-10G00

$46.25

3

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

4

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.27

5

BUSH, REAR HUB

09319-12062

$17.38

6

RING, SPEED SENSOR RR

64162-10G00

$266.03

7

BOLT

07130-05127

$3.42

8

AXLE, REAR

64711-10G10

Unavailable

9

SPACER, RR AXLE RH

64741-10F00

$19.54

10

SPACER, REAR AXLE RH NO.1

64751-10G10

$17.78

11

SPACER, REAR AXLE LH

64772-10G00

Unavailable

12

WASHER

08322-0118B

$2.95

13

NUT

08314-40187

$5.09

14

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

15

DISC, REAR BRAKE

69211-10G10

$315.58

16

BOLT, DISC

09106-08160

$3.22

17

JOINT ASSY, REAR HUB DRIVEN

64680-10G20

Unavailable

18

O RING, DRIVEN JOINT

09280-65003

$4.03

19

WASHER, JOINT

09169-06030

$3.42

20

WASHER, THRUST

64677-10G00

Unavailable

21

BOLT, DRIVEN JOINT WASHER

09119-06049

$1.63

22

TIRE, REAR, 160/60R14M/C 65H (BRIDGESTONE) | TH01 R RADIAL

65110-10G00

$371.58

23

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

24

BALANCER, WHEEL (10G)

43222-73H10

$6.57

24

BALANCER, WHEEL (20G)

43224-73H10

$4.02

24

BALANCER, WHEEL (30G)

43226-73H10

$4.69
