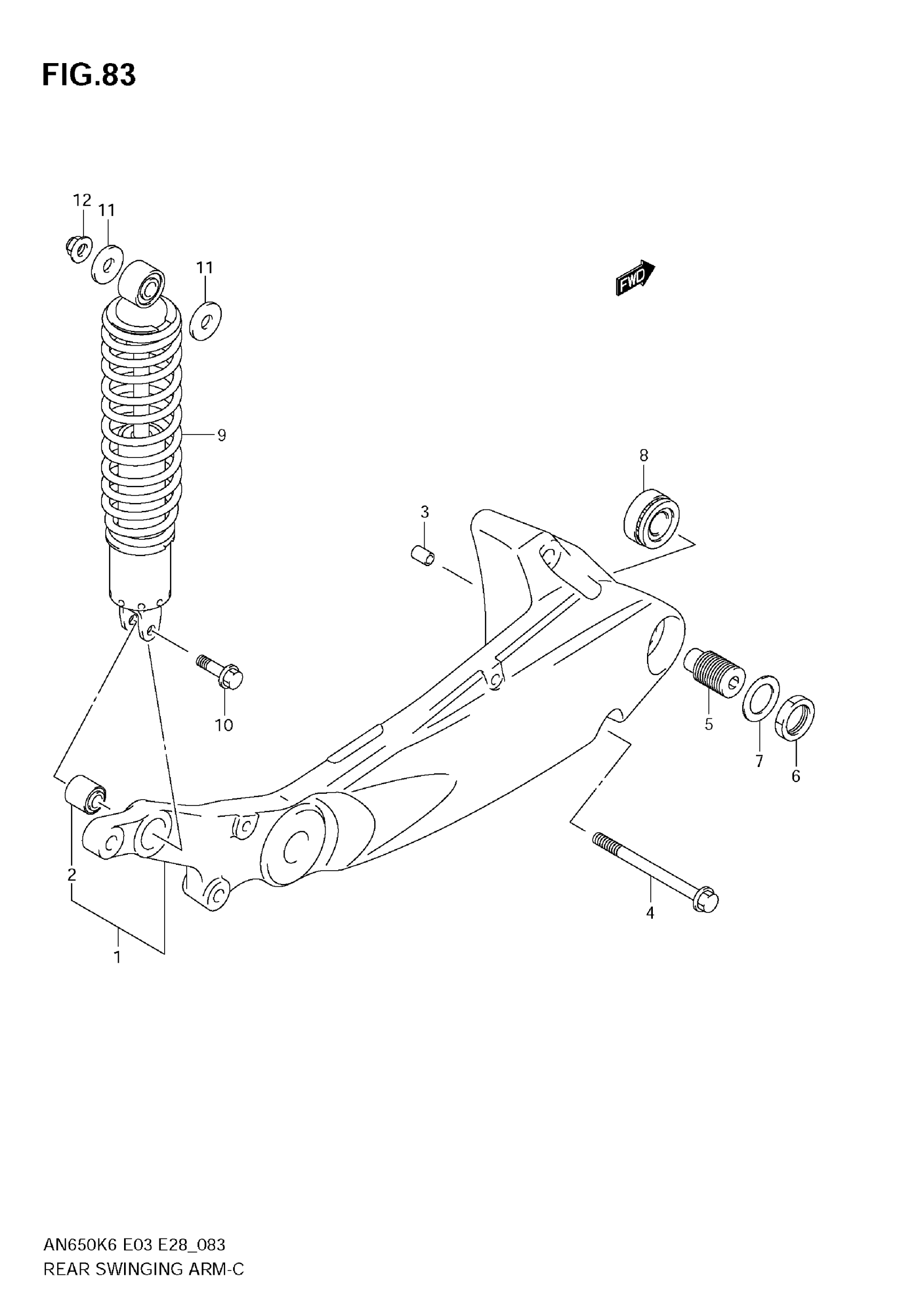

Suzuki AN650 (2009) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL K6/K7/K8

61000-10G10-12Z

Unavailable

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL K9; Includes Item(s) 2

61000-10G20-YD8

Unavailable

2

BUSH

09319-10032

$9.27

3

PIN,CRANKCASE

11319-33E50

$5.32

4

BOLT, JOINT

09103-10299

Unavailable

5

BOLT, PIVOT RH

61213-24A00

Unavailable

6

NUT, PIVOT LOCK

09140-24007

$3.89

7

WASHER

09160-24034

$2.38

8

BEARING, PIVOT RH

09265-17012

$69.07

9

ABSORBER ASSY,R This part replaces 62100-10G10-019.

62100-10G11-019

$340.40

10

BOLT, LOWER

62313-40B00

$4.52

11

WASHER, UPPER OUTER

09160-10501

$2.33

12

NUT, UPPER | MODEL K6

08319-31107

$2.73

12

NUT, UPPER | MODEL K7/K8/K9

08319-3110A

$2.73
