2009 Suzuki AN650 Rear Fender Diagram

← All diagrams

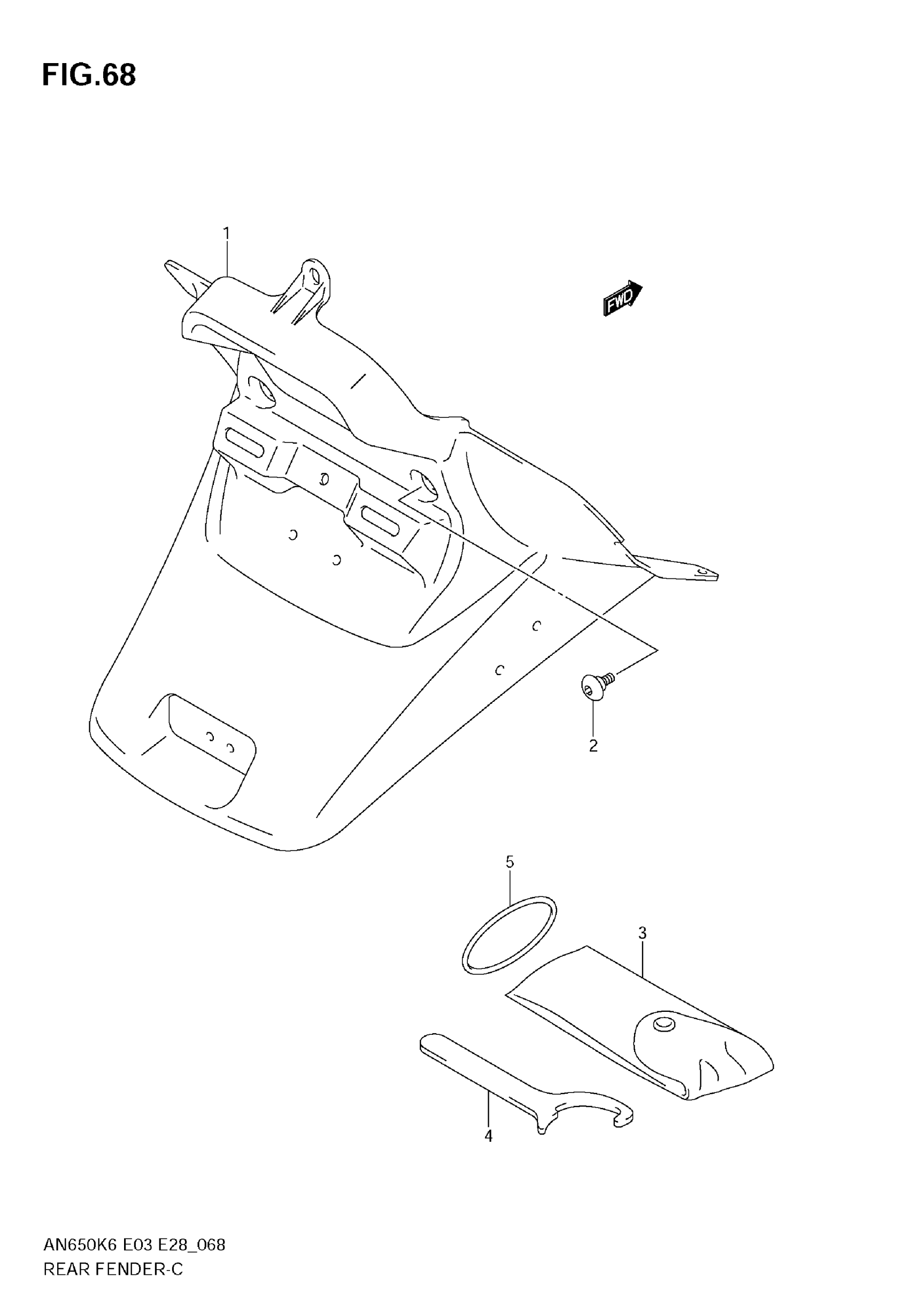

Find the part on the Rear Fender diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki AN650 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (GRAY)

63111-10G10-Y0J

1

$123.77

In stock

2

BOLT

09139-06129

3

$3.13

In stock

3

1

$63.23

In stock

4

CLAMP,WRENCH

09822-00003

1
Out of stock

5

BAND, TOOL

09280-70004

1
Out of stock
