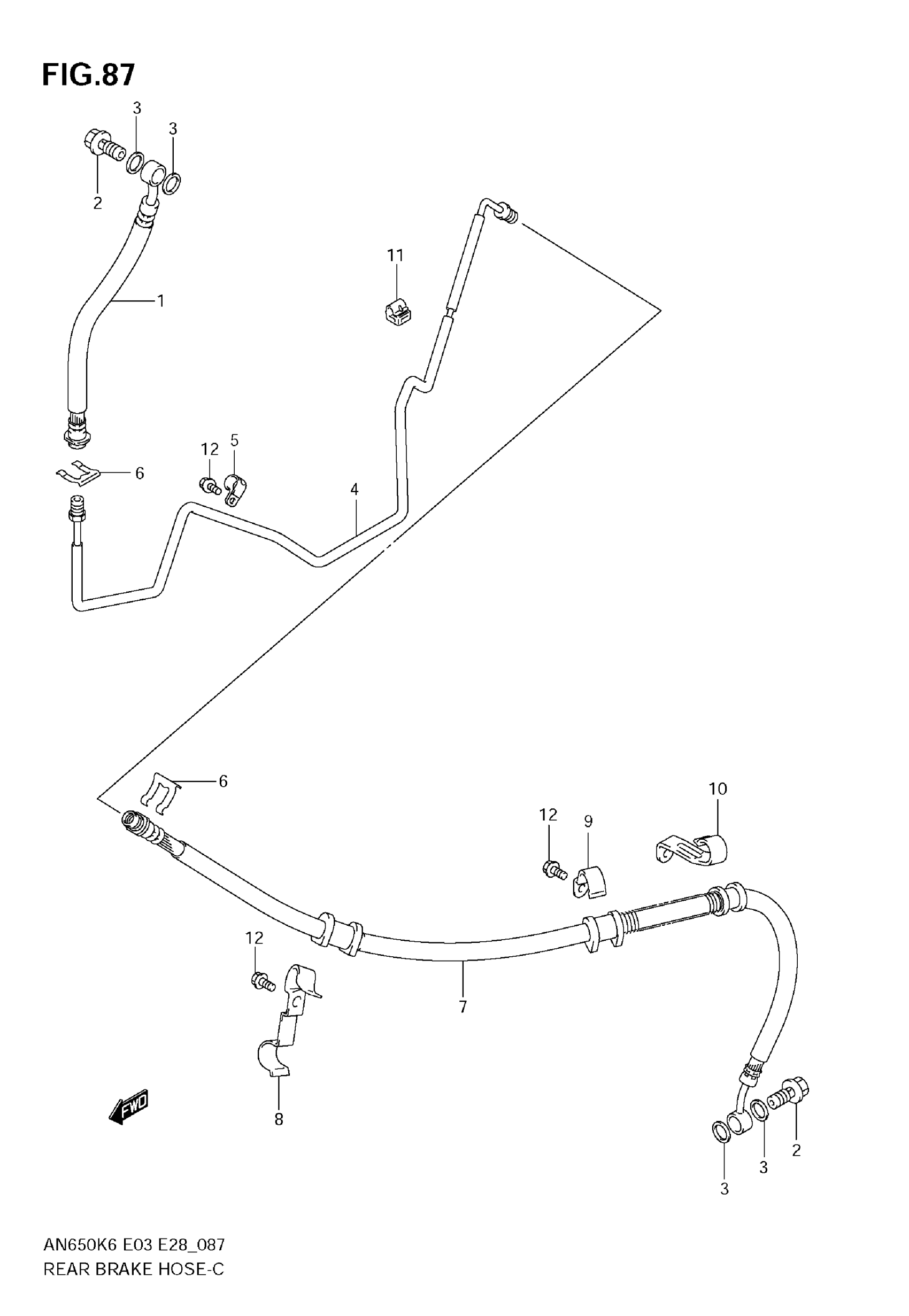

Suzuki AN650 (2009) REAR BRAKE HOSE (AN650K6/K7/K8/K9) Diagram

#

Description

Price

1

HOSE COMP,RR BR This part replaces 69240-10G11.

69240-10G12

$89.43

2

BOLT (10X1.25X22)

09360-10062

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

PIPE, REAR BRAKE

69250-10G00

$48.78

5

CLAMP

09403-07401

Unavailable

6

E RING | MODEL K6/K7/K8

09383-13003

$2.30

6

E RING | MODEL K9 This part replaces 09383-13001.

09383-13003

$2.30

7

HOSE | MODEL K6/K7/K8 This part replaces 69480-10G01.

69480-10G02

$59.20

7

HOSE, REAR BRAKE NO.2 | MODEL K9

69480-10G10

Unavailable

8

CLAMP, REAR BRAKE HOSE NO.1 | MODEL K6/K7/K8

69261-10G00

Unavailable

9

CLAMP, REAR BRAKE HOSE NO.2 | MODEL K6/K7/K8

69266-10G00

Unavailable

10

CLAMP, REAR BRAKE HOSE NO.3 | MODEL K6/K7/K8

69268-10G00

Unavailable

11

CLAMP, REAR BRAKE PIPE NO.2

09403-05406

$2.53

12

BOLT | MODEL K6 This part replaces 01547-06123.

01547-0612B

$1.49

12

BOLT | MODEL K7/K8/K9

01547-0612A

$2.03
