Description

Price

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

2

HOSE, RADIATOR INLET

17851-10G00

$42.45

3

HOSE, RADIATOR OUTLET

17852-10G00

$23.63

4

CLAMP, WATER HOSE

09402-32512

$12.85

5

CLAMP, WaTER HOSE

09402-38512

$11.72

6

HOSE, WATER AIR VENT

17857-10G00

$16.78

7

CLIP (ID:10.5,H:8)

09401-10409

$2.26

8

TANK ASSY, RESERVOIR | Includes Item(s) 9

17910-10G00

$63.90

9

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

10

CUSHION

09320-06504

$4.96

11

BOLT

09116-06168

$2.50

12

HOSE, OVER FLOW

17981-19F00

$14.70

13

HOSE,RESERVOIR TANK INLET This part replaces 17981-10G00.

17981-10G01

$12.67

14

CLIP

09401-08411

$1.78

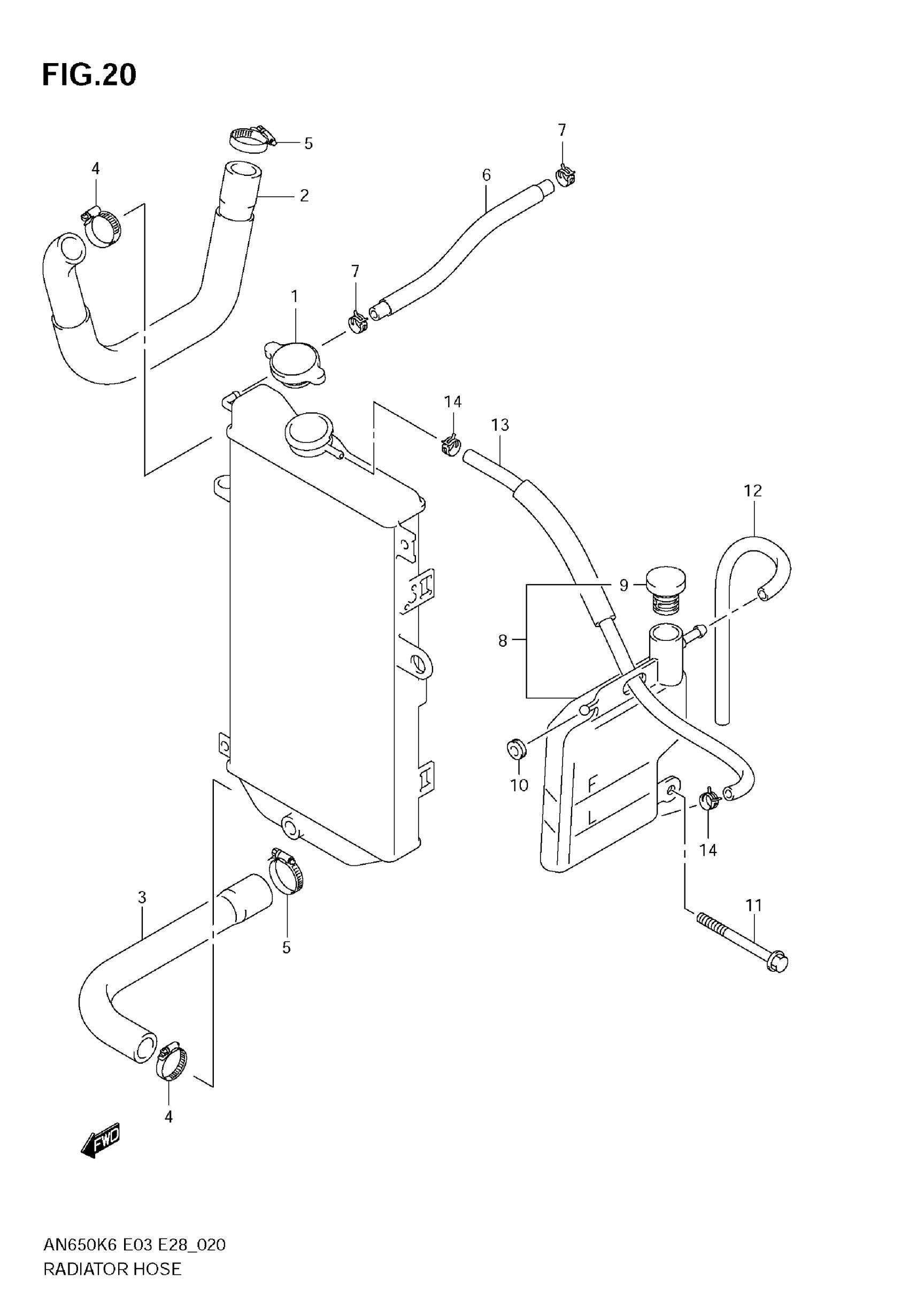

Suzuki AN650 (2009) RADIATOR HOSE Diagram
