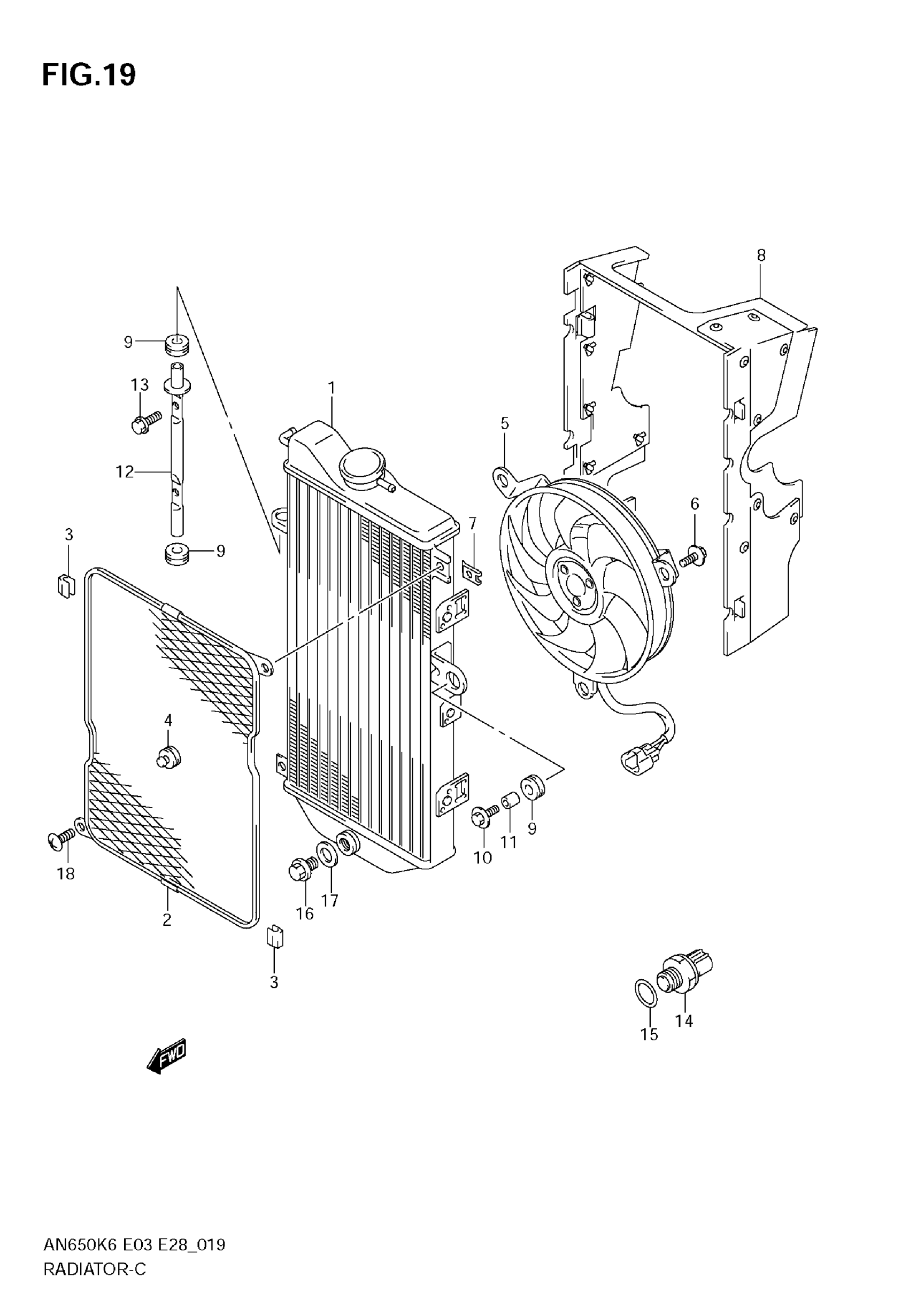

Suzuki AN650 (2009) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-10G00

$1,084.98

2

GUARD,RADIATOR | Includes Item(s) 3 This part replaces 17750-10G00.

17750-10G01

$71.07

3

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

4

CUSHION, RADIATOR GUARD

17768-33410

Unavailable

5

FAN ASSY, RADIATOR

17800-10G00

$685.68

6

BOLT

17711-40F00

$5.58

7

NUT, FAN ASSY

17712-40F00

$4.68

8

SHIELD, RADIATOR HEAT This part replaces 17760-10G00.

17760-26J00

Unavailable

9

CUSHION

09320-10015

$2.54

10

BOLT

09116-06167

$2.19

11

SPACER

09180-06310

$1.91

12

BRACKET, RADIATOR

17740-10G00

Unavailable

13

BOLT

01550-0610B

$2.42

14

SWITCH COMP,FAN | Includes Item(s) 15 This part replaces 17680-50F10.

17680-50F11

$78.18

15

O RING

17689-50F00

$2.53

16

BOLT, DRAIN

01550-0610B

$2.42

17

GASKET, DRAIN BOLT

09168-06026

$3.10

18

SCREW

02142-0610B

$2.15
