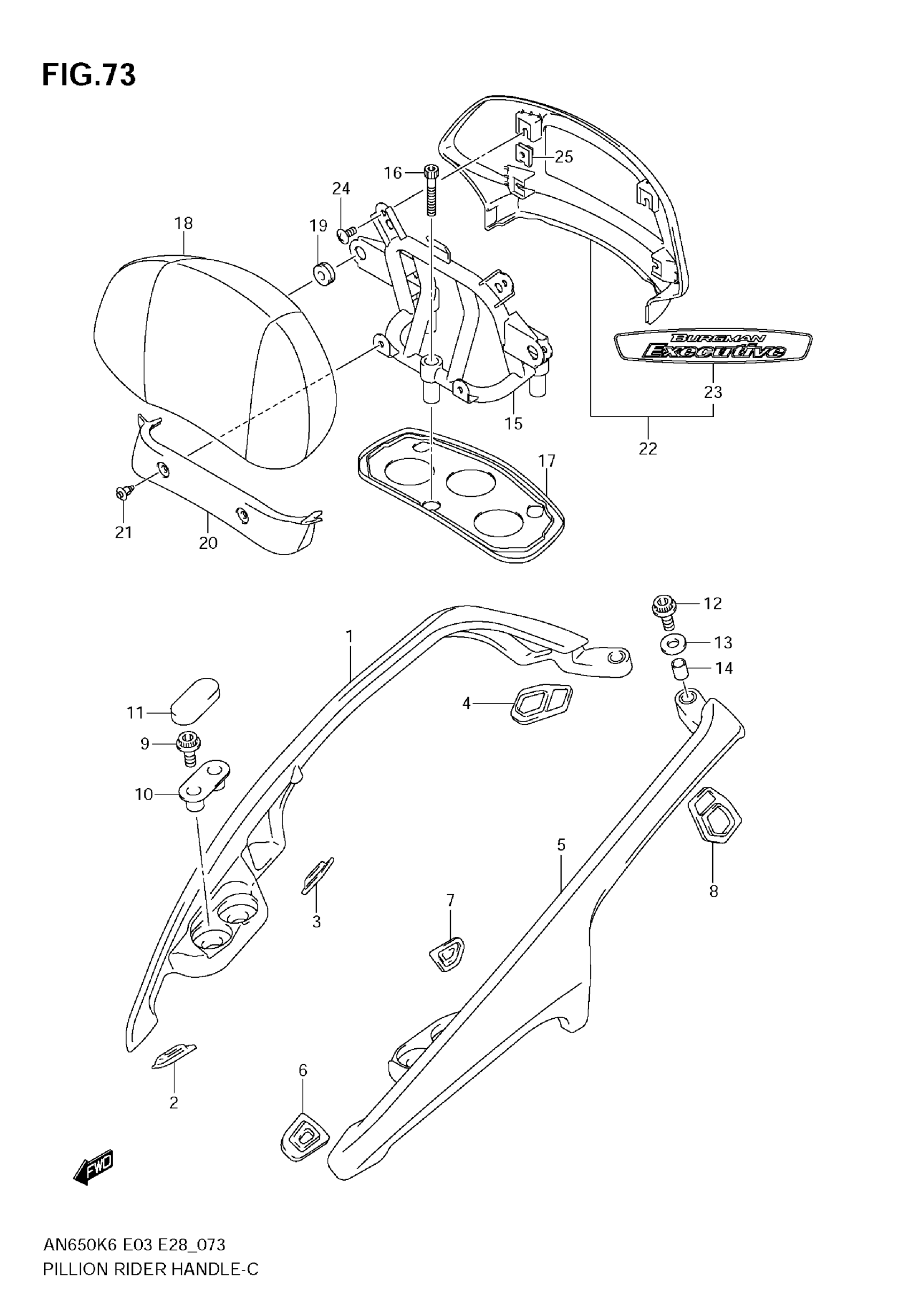

Suzuki AN650 (2009) PILLION RIDER HANDLE (AN650AK6/AK7/AK8/AK9) Diagram

#

Description
Price

1

HANDLE,PILLION | E28 This part replaces 46210-10G03-YHF.

46210-10G04-YHF

Unavailable

1

HANDLE,PILLION | MODEL K6/K7/K8/K9 This part replaces 46210-10G03-YHG.

46210-10G04-YHG

Unavailable

1

HANDLE, PILLION RIDER, RH (BLUE) | E28

46210-10G03-YKZ

Unavailable

1

HANDLE,PILLION | MODEL K7 This part replaces 46210-10G03-YHL.

46210-10G04-YHL

$276.02

1

HANDLE,PILLION | MODEL K8/K9 This part replaces 46210-10G03-YAY.

46210-10G04-YAY

Unavailable

1

HANDLE, PILLION RIDER, RH (BLUE) | MODEL K8

46210-10G03-YBA

Unavailable

1

HANDLE, PILLION RIDER, RH (WHITE) | MODEL K9; Includes Item(s) 2 - 4 This part replaces 46210-10G03-YPA.

46210-10G04-YPA

$646.93

2

CUSHION, PILLION HDL FR RH This part replaces 46261-10G00.

46261-10G10

$5.15

3

CUSHION, PILLION HDL CTR RH This part replaces 46271-10G00.

46271-10G10

$7.50

4

CUSHION, PILLION HDL RR RH

46281-10G01

Unavailable

5

HANDLE,PILLION | E28 This part replaces 46230-10G02-YHF.

46230-10G03-YHF

Unavailable

5

HANDLE,PILLION | MODEL K6/K7/K8/K9 This part replaces 46230-10G02-YHG.

46230-10G03-YHG

Unavailable

5

HANDLE, PILLION RIDER, LH (BLUE) | E28

46230-10G02-YKZ

Unavailable

5

HANDLE COMP,PIL | MODEL K7 This part replaces 46230-10G02-YHL.

46230-10G03-YHL

Unavailable

5

HANDLE,PILLION | MODEL K8/K9 This part replaces 46230-10G02-YAY.

46230-10G03-YAY

Unavailable

5

HANDLE, PILLION RIDER, LH (BLUE) | MODEL K8

46230-10G02-YBA

Unavailable

5

HANDLE, PILLION RIDER, LH (WHITE) | MODEL K9; Includes Item(s) 6 - 8 This part replaces 46230-10G02-YPA.

46230-10G03-YPA

$494.07

6

CUSHION, PILLION HDL FR LH This part replaces 46262-10G00.

46262-10G10

$7.28

7

CUSHION, PILLION HDL CTR LH This part replaces 46272-10G00.

46272-10G10

$6.20

8

CUSHION, PILLION HDL RR LH

46282-10G01

Unavailable

9

BOLT

09106-08151

$3.70

10

WASHER, PILLION HDL BOLT

46290-10G01

Unavailable

11

CAP, PILLION HDL BOLT

46251-10G00

Unavailable

12

BOLT

09106-08151

$3.70

13

WASHER

09160-08127

$2.12

14

SPACER, 8.4X12X13

09180-08138

$2.63

15

BRACKET, PILLION RIDER HANDLE

46240-10G10

Unavailable

16

BOLT

07130-0845B

$3.99

17

CUSHION, PILLION HANDLE COVER

46252-10G00

Unavailable

18

BACKREST ASSY P This part replaces 46220-10G30-BYA.

46220-10G31-BYA

$264.07

19

CUSHION

09320-08049

$3.26

20

COVER, PILLION HDL FR (GRAY) | E28

46215-10G20-YHF

Unavailable

20

COVER, PILLION HDL FR (GRAY) | MODEL K6/K7/K8/K9

46215-10G20-YHG

Unavailable

20

COVER, PILLION HDL FR (BLUE) | E28

46215-10G20-YKZ

Unavailable

20

COVER, PILLION HDL FR (RED) | MODEL K7

46215-10G20-YHL

Unavailable

20

COVER, PILLION HDL FR (BLACK) | MODEL K8/K9

46215-10G20-YAY

Unavailable

20

COVER, PILLION HDL FR (BLUE) | MODEL K8

46215-10G20-YBA

Unavailable

20

COVER, PILLION HDL FR (WHITE) | MODEL K9

46215-10G20-YPA

Unavailable

21

CLIP (BLACK)

09409-06314-5PK

$2.78

22

COVER, PILLION HDL RR (GRAY) | E28

46201-10GD0-YHF

Unavailable

22

COVER, PILLION HDL RR (GRAY) | MODEL K6/K7/K8

46201-10GD0-YHG

Unavailable

22

COVER, PILLION HDL RR (BLUE) | E28

46201-10GD0-YKZ

Unavailable

22

COVER, PILLION HDL RR (RED) | MODEL K7

46201-10GD0-YHL

Unavailable

22

COVER,PILLION H | MODEL K8 This part replaces 46201-10GD0-YAY.

46216-10G20

$36.27

22

COVER, PILLION HDL RR (BLUE) | MODEL K8

46201-10GD0-YBA

Unavailable

23

EMBLEM, PILLION RIDER HDL RR

68281-10GC0-YKD

$55.22

24

SCREW | MODEL K6 This part replaces 02142-06123.

02142-0612A

$1.49

24

SCREW | MODEL K7/K8/K9

02142-0612B

$2.05

25

NUT

09148-06018

$3.16
