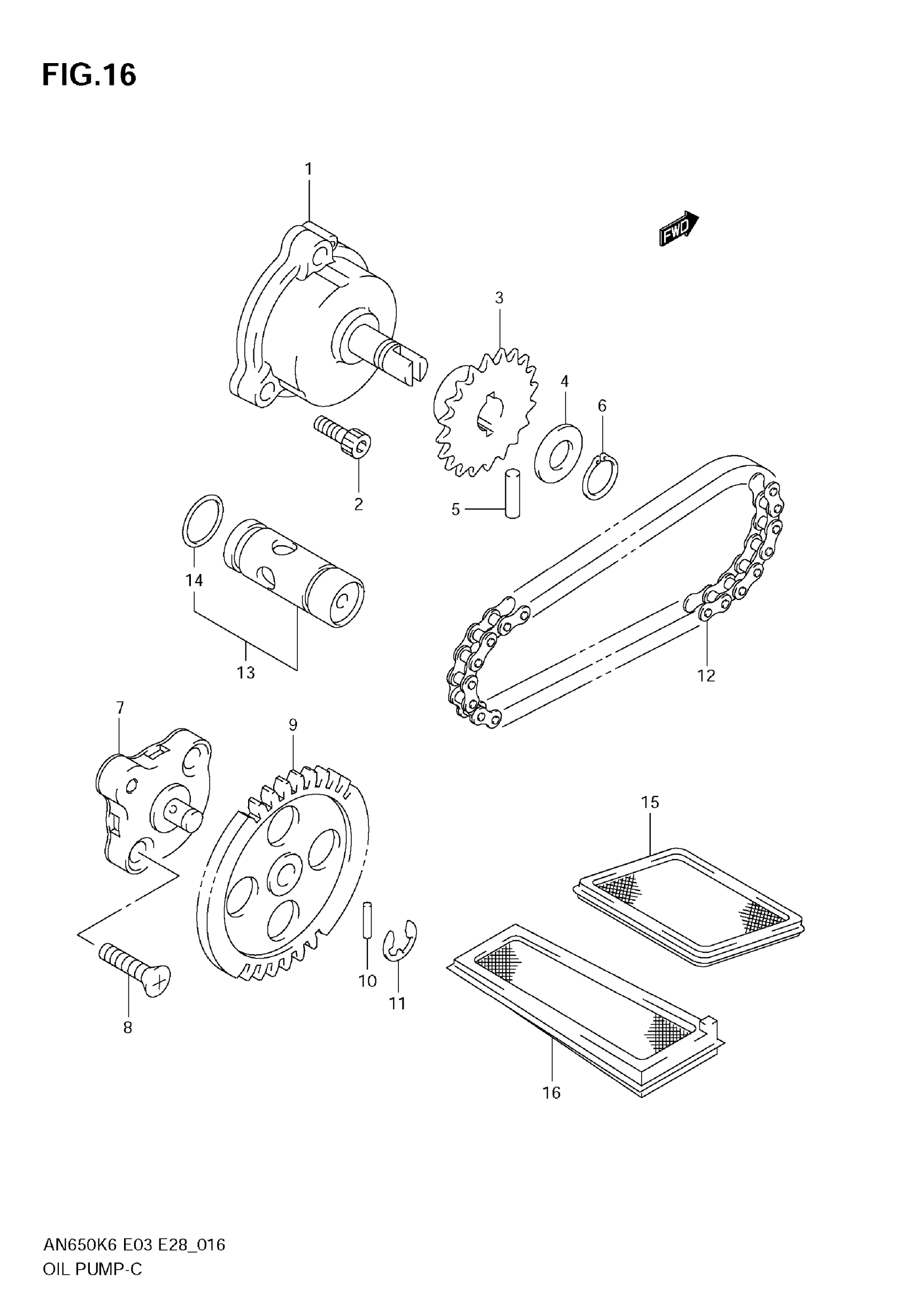

Suzuki AN650 (2009) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL NO.1

16400-10G00

Unavailable

2

BOLT

07130-0625B

$3.04

3

SPROCKET, DRIVEN NO.1

16331-10G00

Unavailable

4

WASHER

09181-10158

$1.97

5

PIN

09261-04009

$1.56

6

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

7

PUMP ASSY, OIL NO.2

16400-10G10

Unavailable

8

SCREW

02122-0625B

$1.88

9

GEAR, PUMP DRIVEN NO.2

16331-10G10

Unavailable

10

PIN

16421-20E00

Unavailable

11

E RING

16423-20E00

Unavailable

12

CHAIN, OIL PUMP DRIVE

16310-10G00

Unavailable

13

VALVE ASSY, OIL RELIEF | Includes Item(s) 14

16440-10G00

Unavailable

14

O RING (D:1.9,ID:13.0)

09280-13004

$2.17

15

STRAINER, ENGINE OIL NO.1

16520-10G00

Unavailable

16

STRAINER, ENGINE OIL NO.2

16530-10G00

Unavailable
