2009 Suzuki AN650 OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

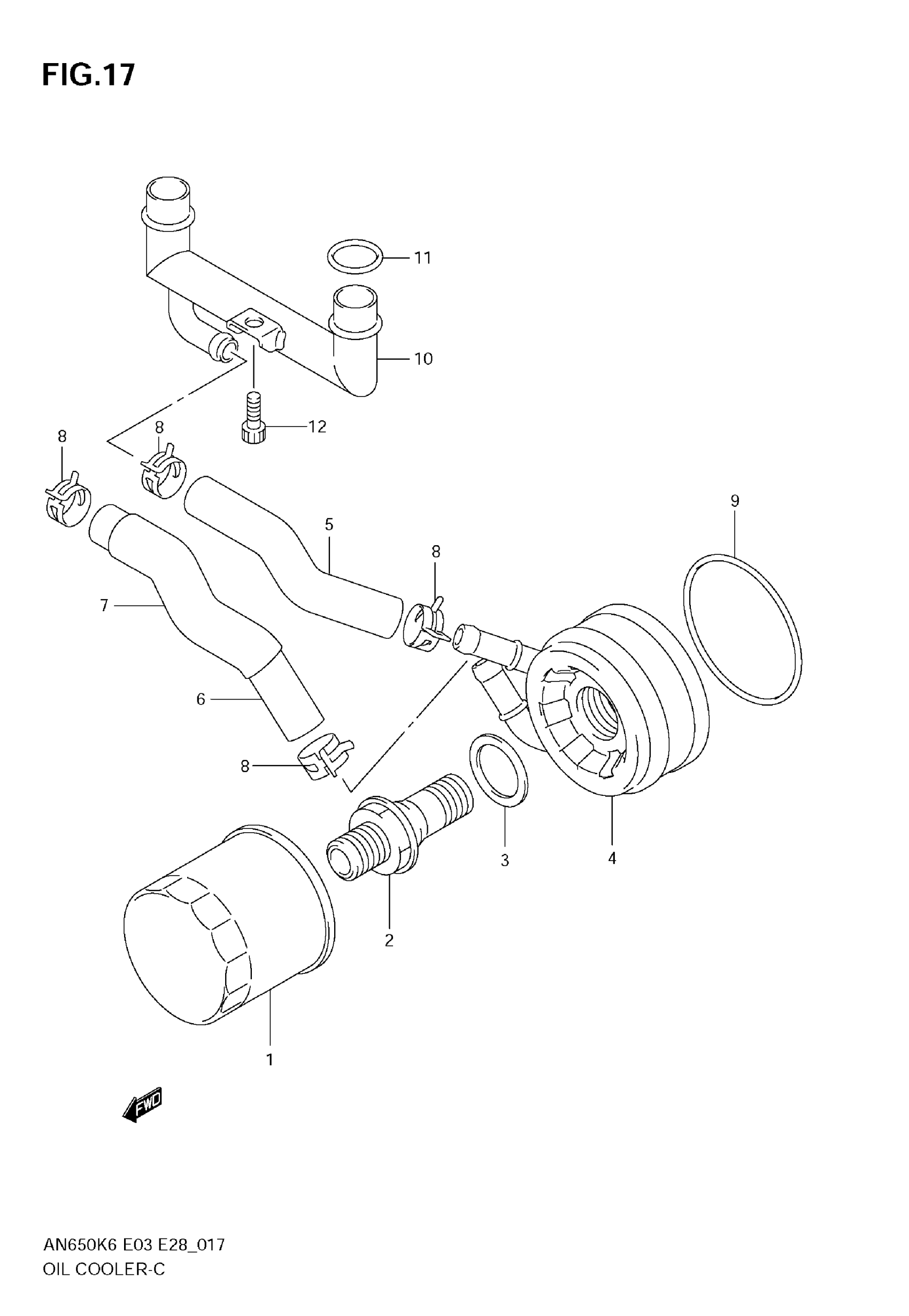

2009 Suzuki AN650 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

1
Out of stock

2

BOLT,OIL COOLER UNION

16591-02F00

1
Out of stock

3

WASHER, UNION

09181-25160

1

$3.03

In stock

4

COOLER ASSY, OIL

16600-10G00

1
Out of stock

5

HOSE, OIL COOLER IN

16461-10G00

1
Out of stock

6

HOSE, OIL COOLER OUT

16471-10G00

1
Out of stock

7

PROTECTOR, HOSE HEAT

16479-10G00

1
Out of stock

8

CLIP, HOSE

09401-16407

4
Out of stock

9

O RING

09280-64003

1
Out of stock

10

PIPE, WATER

17880-10G00

1
Out of stock

11

O RING

09280-18009

2
Out of stock

12

BOLT

09106-06075

1
Out of stock
