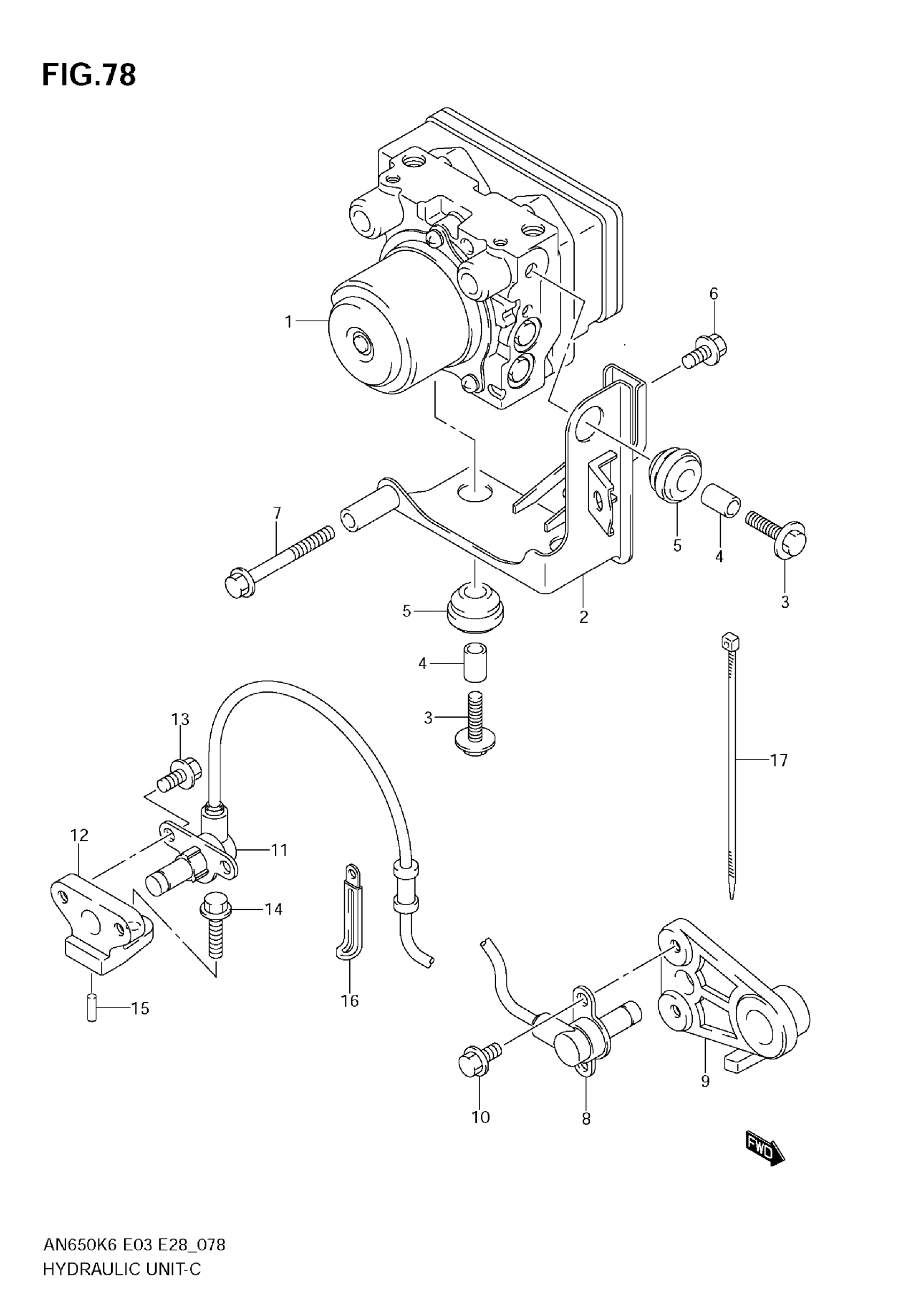

Suzuki AN650 (2009) HYDRAULIC UNIT (AN650AK6/AK7/AK8/AK9) Diagram

#

Description
Price

1

UNIT ASSY,HYDRA | MODEL K6/K7/K8 This part replaces 55610-10G01.

55610-10G03

$2,557.50

1

UNIT ASSY,HYDRA | MODEL K9 This part replaces 55610-10G02.

55610-10G03

$2,557.50

2

HOLDER, HYDRAULIC UNIT ABS

55660-10G00

Unavailable

3

BOLT, UNIT MOUNTING

55661-10G00

Unavailable

4

SPACER

55662-10G00

Unavailable

5

RUBBER

55663-10G00

Unavailable

6

BOLT, HYDRAULIC UNIT NO.1

01550-0612A

$1.97

7

BOLT, HYDRAULIC UNIT NO.2

01550-0655A

Unavailable

8

SENSOR, FR WHEEL ABS

55710-10G00

$287.20

9

BRACKET, SENSOR FR

55720-10G00

Unavailable

10

BOLT

01547-0612A

$2.03

11

SENSOR, RR WHEEL ABS

65710-10G00

$274.80

12

BRACKET, SENSOR RR

65721-10G00

Unavailable

13

BOLT

01547-0612A

$2.03

14

BOLT, SENSOR RR

09103-06240

$3.08

15

PIN (4X13.8)

04221-04089

$1.49

16

CLAMP, RR SENSOR

09404-06429

$1.83

17

CLAMP, SENSOR

09407-14407

$3.57
