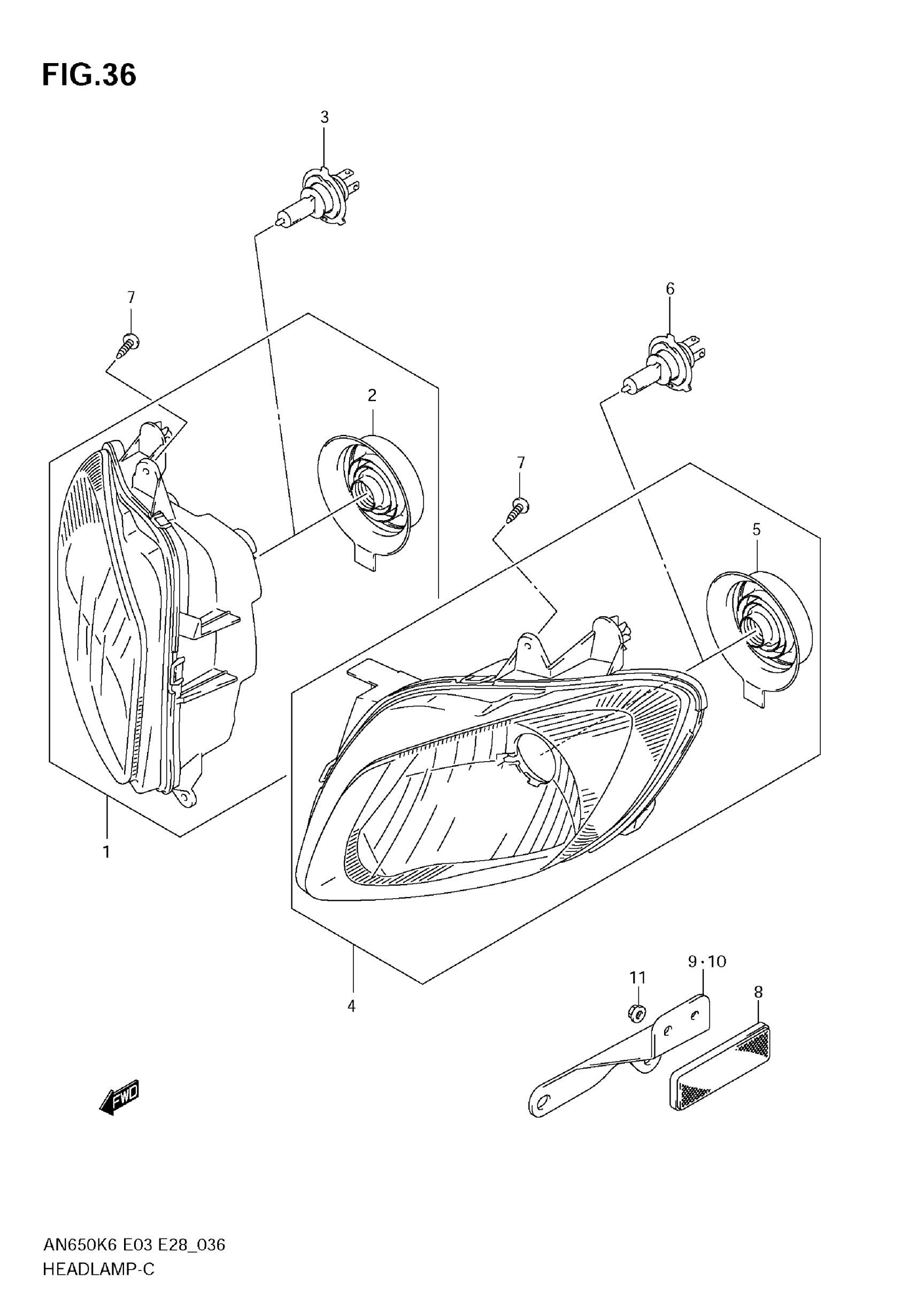

Suzuki AN650 (2009) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY, RH | Includes Item(s) 2

35100-10G30-999

$341.08

2

COVER SOCKET

35173-42E00

Unavailable

3

BULB (12V60/55W,H4)

09471-12060

$25.15

4

HEADLAMP ASSY, LH | Includes Item(s) 5

35300-10G31-999

$341.08

5

COVER SOCKET

35173-42E00

Unavailable

6

BULB (12V60/55W,H4)

09471-12060

$25.15

7

SCREW

03541-0516B

$1.78

8

REFLEX REFLECTOR ASSY, FR

35950-43431

$17.83

9

BRACKET, FR SIDE, RH

35956-10G00

Unavailable

10

BRACKET, FR SIDE, LH

35957-10G00

Unavailable

11

NUT, FR SIDE

08316-1005B

$2.50
