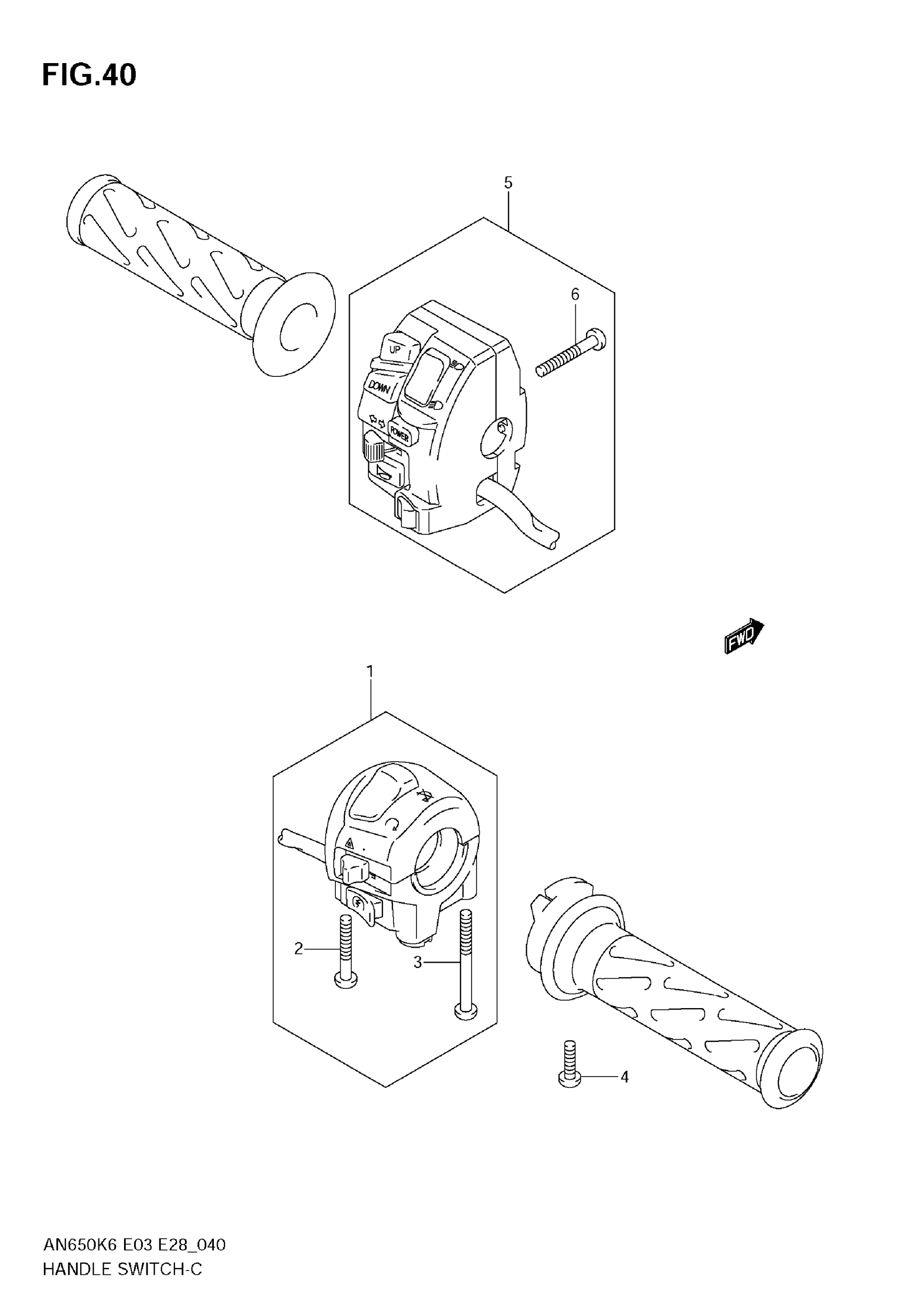

Suzuki AN650 (2009) HANDLE SWITCH (AN650K6/K7/K8/K9) Diagram

#

Description

Price

1

SWITCH ASSY,HAN | Includes Item(s) 2 - 3 This part replaces 37200-10G40.

37200-10G41

$167.18

2

SCREW

02112-0530B

$1.49

3

SCREW

02112-0550B

$2.39

4

SCREW, THROTTLE CABLE

02112-0510B

$2.08

5

SWITCH ASSY, HANDLE, LH | Includes Item(s) 6

37400-10G10

$246.03

6

SCREW

02112-0535B

$2.23
