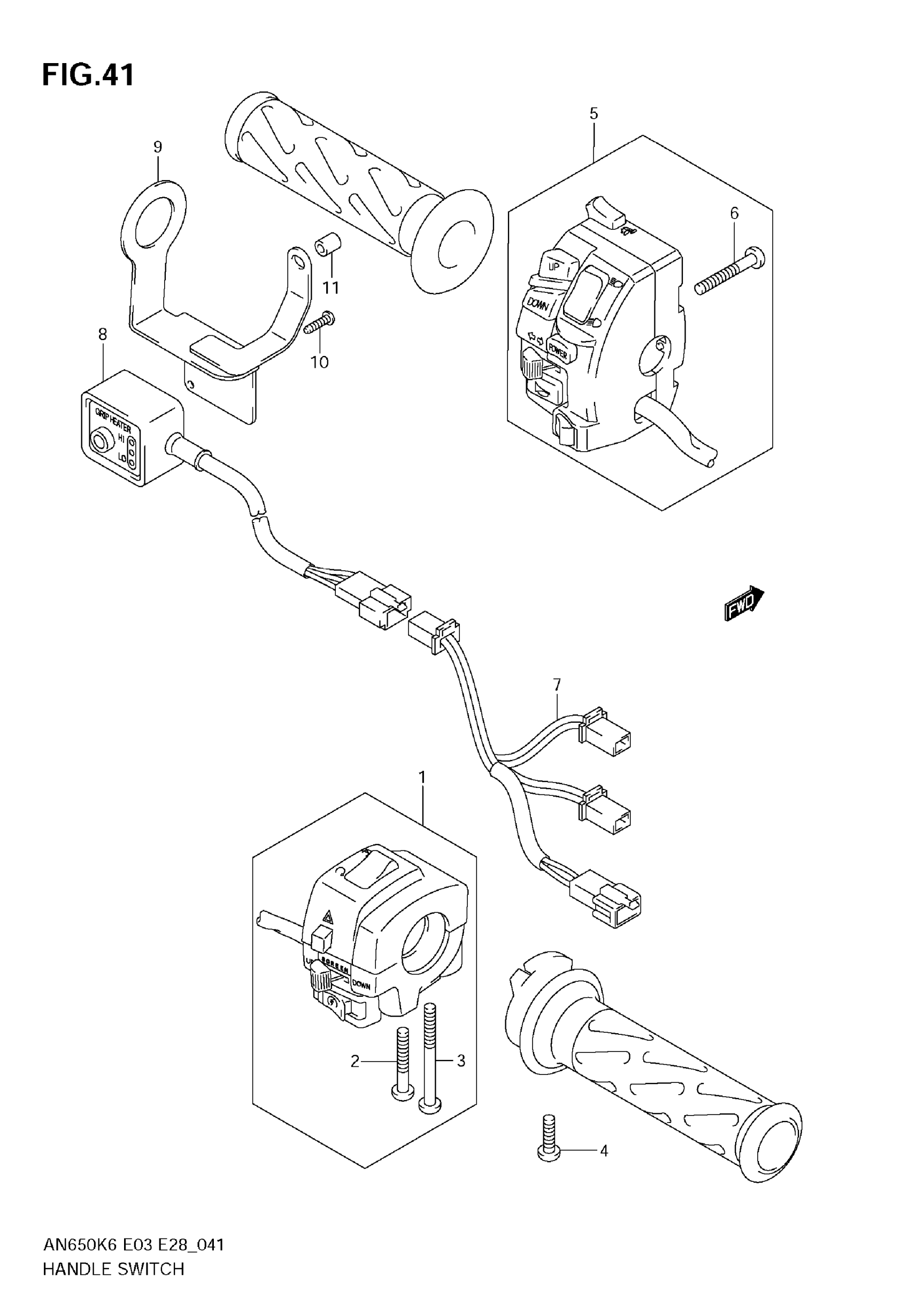

Suzuki AN650 (2009) HANDLE SWITCH (AN650AK6/AK7/AK8/AK9) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE, RH | Includes Item(s) 2 - 3

37200-10G60

$201.52

2

SCREW

02112-0530B

$1.49

3

SCREW

02112-0550B

$2.39

4

SCREW, THROTTLE CABLE

02112-0510B

$2.08

5

SWITCH ASSY,HAN | Includes Item(s) 6 This part replaces 37400-10G20.

37400-10G21

$298.05

6

SCREW

02112-0535B

$2.23

7

WIRE, GRIP HEATER LEAD | AN650AK9 E28

36855-05H00

Unavailable

8

SWITCH ASSY, GRIP HEATER | AN650AK9 E28

37270-05H10

Unavailable

9

BRACKET, GRIP HEATER | AN650AK9 E28

37271-10G20

Unavailable

10

SCREW (3X14) | AN650AK9 E28

37272-36G00

Unavailable

11

SPACER (5.5X9.5X10) | AN650AK9 E28

09180-05301

$2.42
