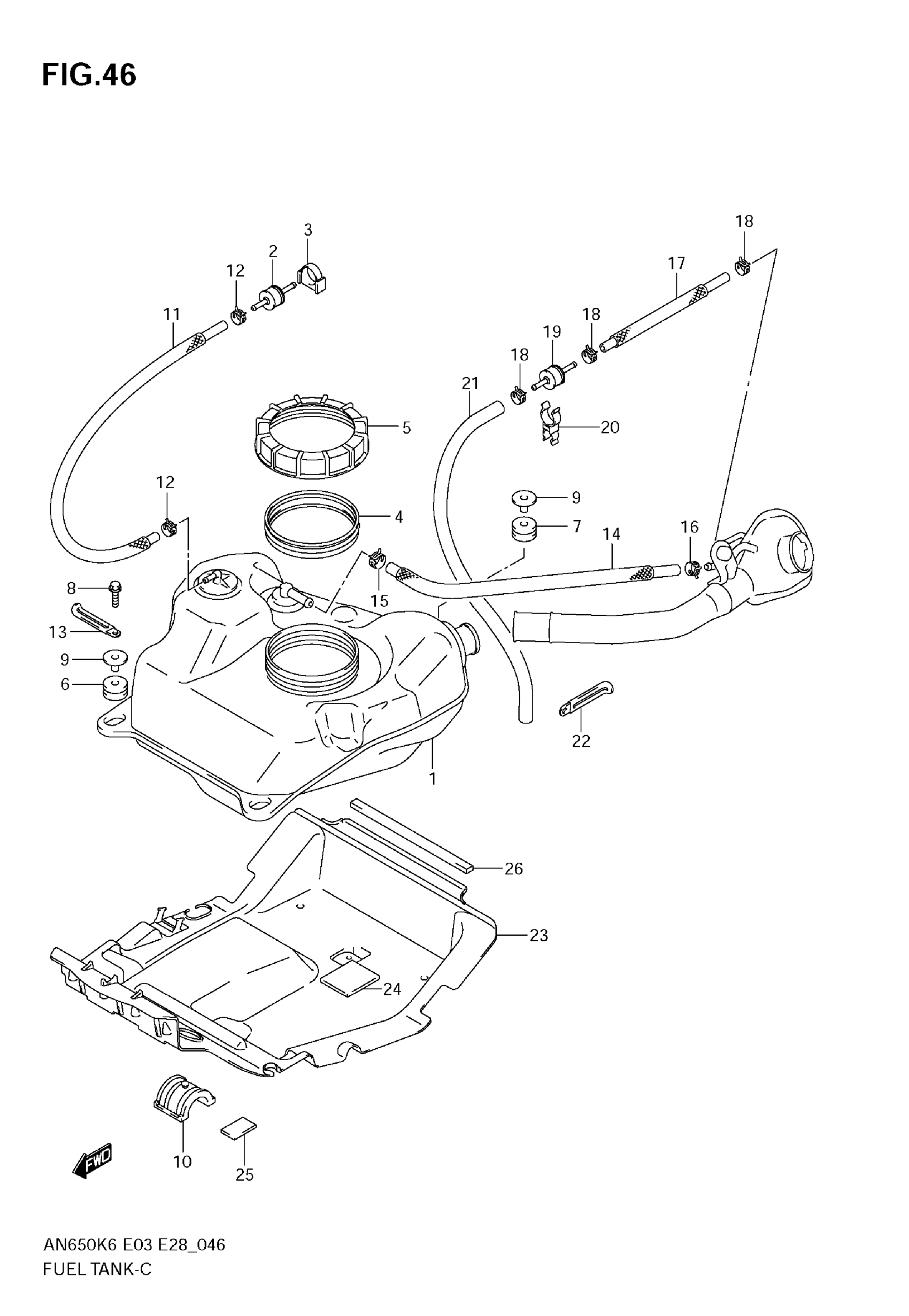

Suzuki AN650 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL | MODEL K6/K7 E3,E28 This part replaces 44110-10G00.

44110-10G40

$531.33

1

TANK, FUEL | MODEL K6/K7 E33

44110-10G20

Unavailable

1

TANK, FUEL | MODEL K8/K9

44110-10G30

Unavailable

2

VALVE,2 WAY CHECK

85451-75100

$46.78

3

CUSHION

44884-10G00

Unavailable

4

PACKING,FUEL PU This part replaces 44596-10G00.

44596-10G01

$15.38

5

RETAINER, FUEL PUMP

44597-10G00

$35.72

6

CUSHION, FRONT

44511-10G00

Unavailable

7

CUSHION, REAR

44511-10G10

Unavailable

8

BOLT

02162-0625B

$2.10

9

WASHER,FUEL TANK

44512-10G00

Unavailable

10

CUSHION, LOWER

44541-10G00

Unavailable

11

HOSE, TANK & VALVE | MODEL K6/K7 E3,E28

44434-10G00

Unavailable

11

HOSE, TANK & VALVE | MODEL K6/K7 E33

44434-10G10

Unavailable

11

HOSE, TANK & VALVE | MODEL K8/K9

44434-10GA0

Unavailable

12

CLIP (ID:9.4,H:8)

09401-09403

$2.03

13

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

14

HOSE, AIR VENT

44424-10G10

$66.40

15

CLIP, TANK

09401-20405

$4.08

16

CLIP

09401-18404

$1.90

17

HOSE, CHECK VALVE | MODEL K6/K7

44425-10G00

Unavailable

17

HOSE, CHECK VALVE | MODEL K8/K9

44425-10GA0

Unavailable

18

CLIP (ID:9.4,H:8)

09401-09403

$2.03

19

VALVE, CHECK

44240-10G00

Unavailable

20

CLAMP

09408-00140

Unavailable

21

HOSE, VALVE

44426-10G00

Unavailable

22

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

23

COVER, FUEL TANK LOWER This part replaces 44271-10G00.

44271-10G10

$93.63

24

CUSHION, NO.1

44542-10G00

Unavailable

25

CUSHION, NO.2

44543-10G00

$5.56

26

CUSHION, LOWER COVER

44276-10G00

Unavailable
