2009 Suzuki AN650 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

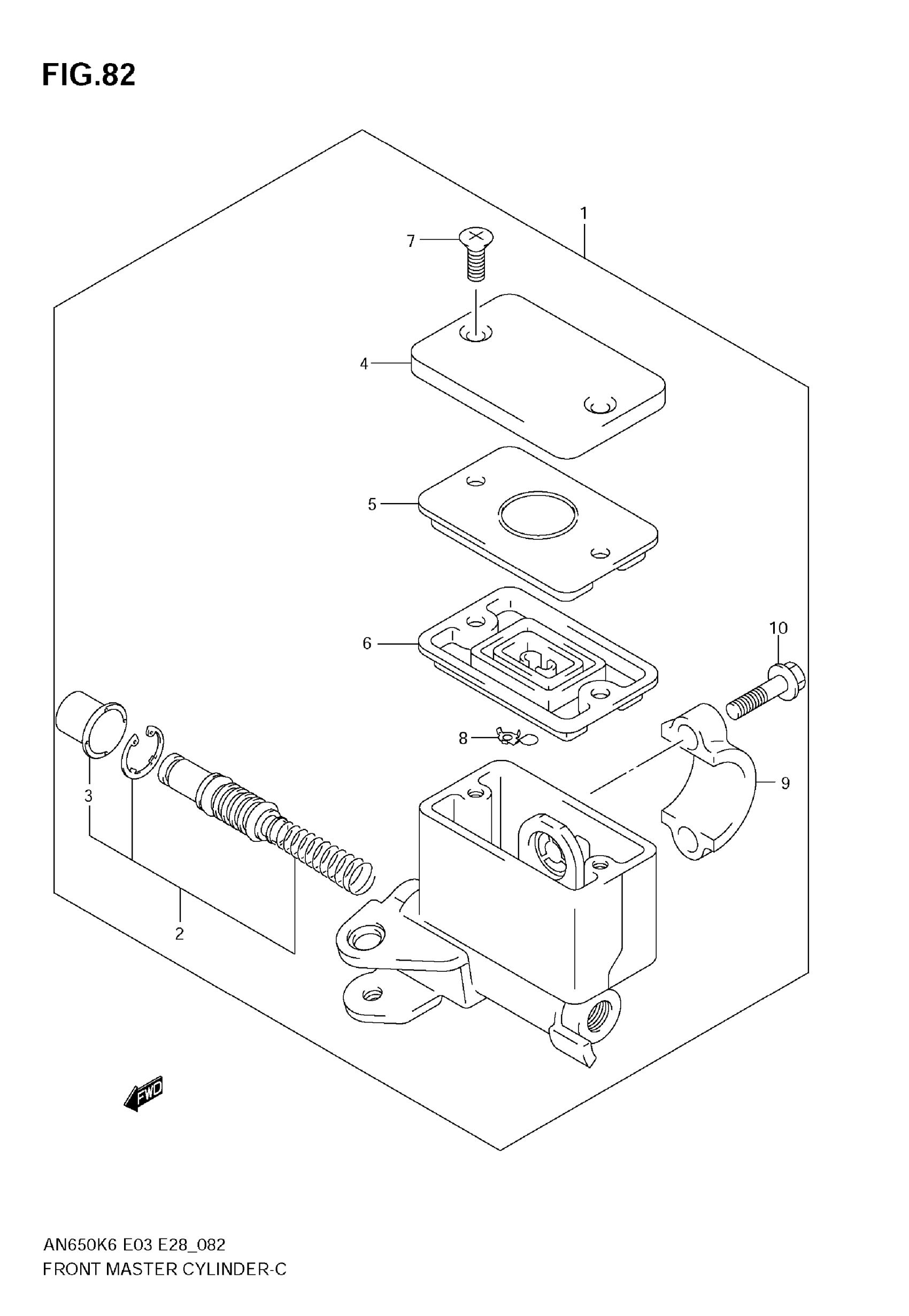

2009 Suzuki AN650 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-10G00

1
Out of stock

2

PISTON/CUP SET

59600-04810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

CAP

59669-10G00

1
Out of stock

5

PLATE, DIAPHRAGM

59668-41C00

1
Out of stock

6

DIAPHRAGM

59667-49460

1
Out of stock

7

SCREW

69689-49300

2
Out of stock

8

PROTECTOR

59664-32F00

1
Out of stock

9

.HOLDER

59671-36500

1
Out of stock

10

BOLT

59675-02FA0

2
Out of stock
