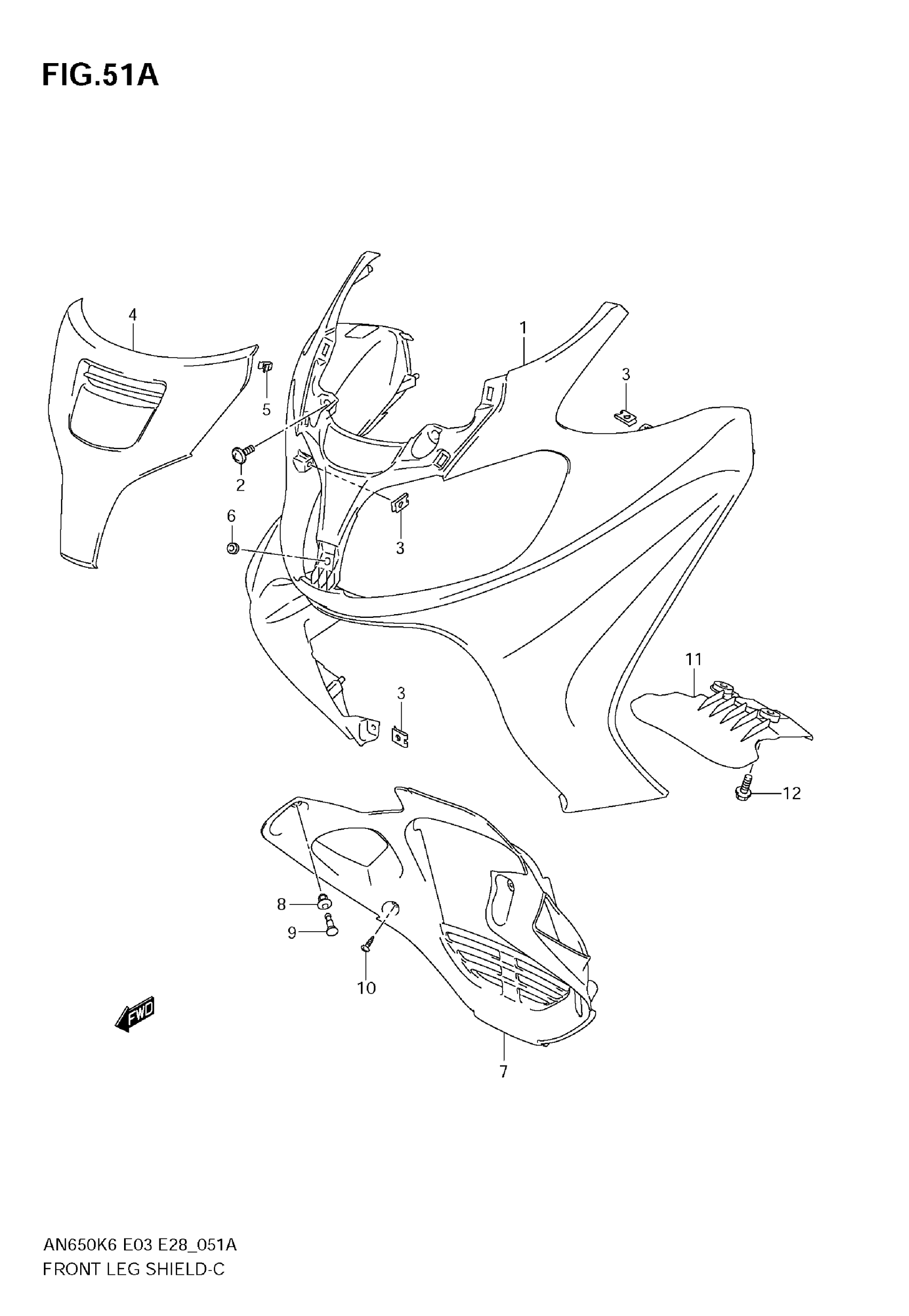

Suzuki AN650 (2009) FRONT LEG SHIELD (AN650K8) Diagram

SHIELD, LEG FRONT (BLACK)

48111-10G00-YAY

$757.25

SHIELD, LEG FRONT (GOLD)

48111-10G00-YLC

Unavailable

SCREW

09136-06157

$2.83

NUT

09148-05038

$1.97

COVER, FRONT LEG (WHITE)

48130-10G00-YAY

Unavailable

COVER, FRONT LEG (GRAY) | Includes Item(s) 5

48130-10G00-YLC

Unavailable

CLIP

09409-08326

$2.48

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

SHIELD, LEG LOWER (GRAY)

48137-10G01-Y0J

$123.73

GROMMET

09409-08329

$2.40

PLUNGER

09409-08330

$2.38

SCREW

09132-05053

$2.28

COVER, LOWER BRACKET

94458-10G00

$22.08

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60
