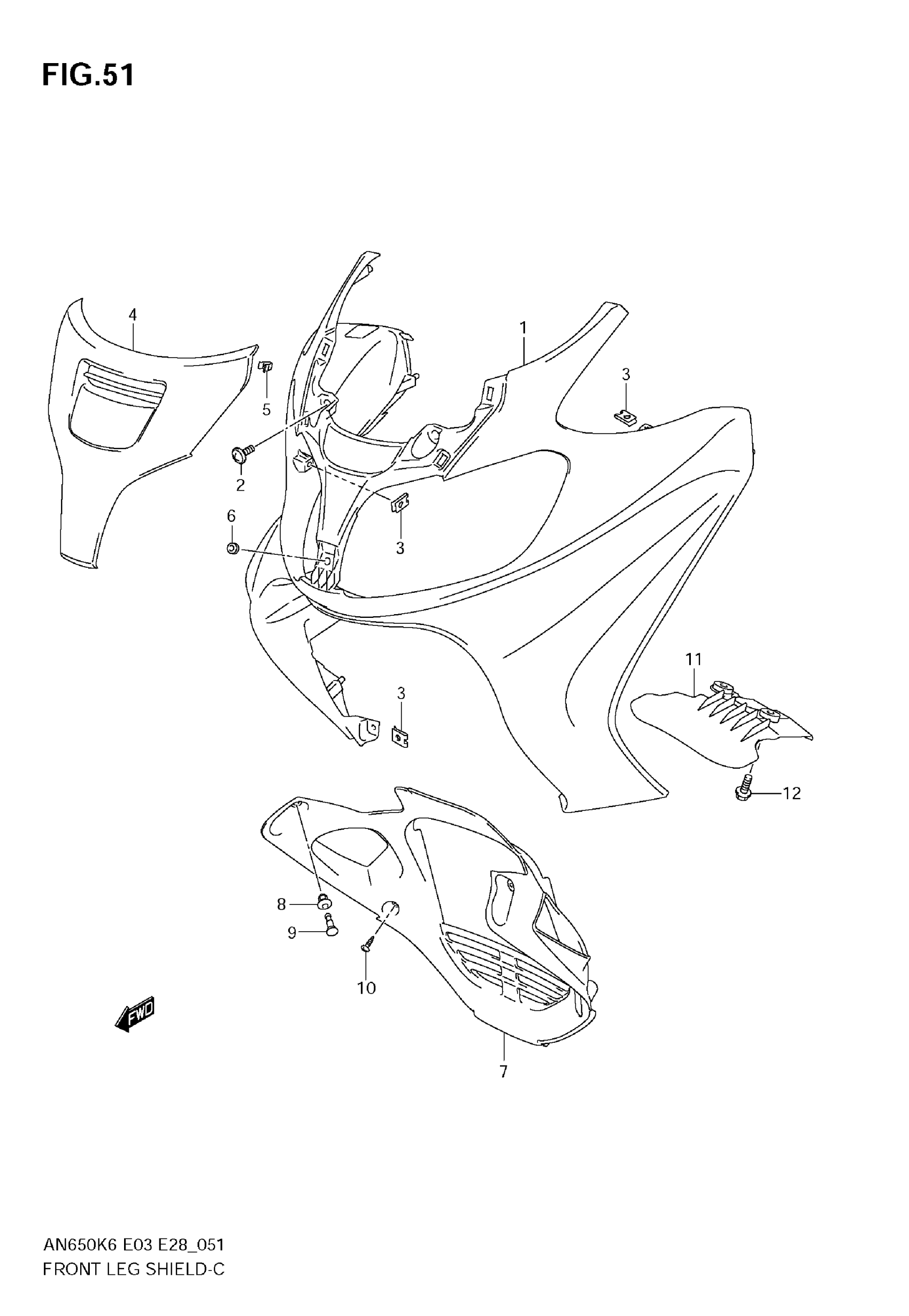

Suzuki AN650 (2009) FRONT LEG SHIELD (AN650K6/K7) Diagram

#

Description
Price

1

SHIELD, LEG FRONT (WHITE)

48111-10G00-YC3

Unavailable

1

SHIELD, LEG FRONT (GRAY) | MODEL K6

48111-10G00-YHG

$490.20

1

SHIELD, LEG FRONT (GRAY) | MODEL K7

48111-10G00-YHF

Unavailable

2

SCREW | MODEL K6

09136-06061

$3.08

2

SCREW | MODEL K7

09136-06157

$3.08

3

NUT | MODEL K6

09148-05038

$1.97

3

NUT (M5) | MODEL K7

09148-05047

$2.02

4

COVER, FRONT LEG (WHITE)

48130-10G00-YC3

Unavailable

4

COVER, FRONT LEG (GRAY) | MODEL K6

48130-10G00-YHG

Unavailable

4

COVER, FRONT LEG (GRAY) | MODEL K7; Includes Item(s) 5

48130-10G00-YHF

Unavailable

5

CLIP

09409-08326

$2.45

6

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

7

SHIELD, LEG LOWER (GRAY)

48137-10G01-Y0J

$138.98

8

GROMMET

09409-08329

$2.54

9

PLUNGER

09409-08330

$2.56

10

SCREW

09132-05053

$2.26

11

COVER, LOWER BRACKET

94458-10G00

$24.92

12

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66
