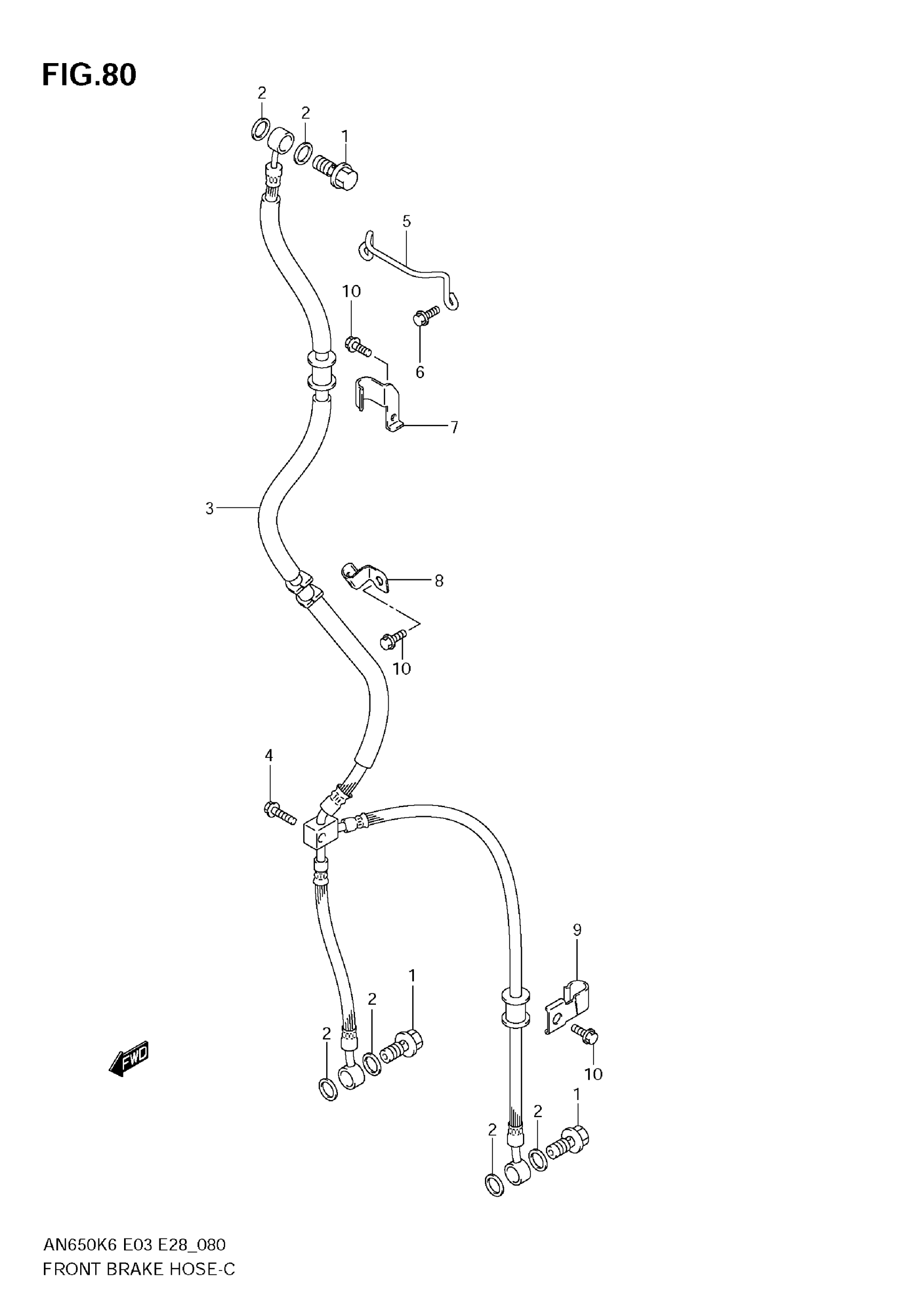

Suzuki AN650 (2009) FRONT BRAKE HOSE (AN650K6/K7/K8/K9) Diagram

#

Description

Price

1

BOLT (10X1.25X22)

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE COMP,FRT B This part replaces 59480-10G01.

59480-10G02

$186.82

4

BOLT, FINAL GEAR CASE COVER | MODEL K6 This part replaces 01547-06253.

01547-0625B

$2.45

4

BOLT, HOSE | MODEL K7/K8/K9

01547-0625B

$2.45

5

GUIDE, BRAKE HOSE

59541-10G00

Unavailable

6

BOLT | MODEL K6

01550-0612A

$1.97

6

BOLT | MODEL K7/K8/K9

01550-0612B

$2.39

7

CLAMP, FR BRAKE HOSE NO.1

59261-10G00

Unavailable

8

CLAMP, FR BRAKE HOSE NO.2

59266-35F10

Unavailable

9

CLAMP, FRONT BRAKE HOSE LH

59268-10G00

Unavailable

10

BOLT | MODEL K6 This part replaces 01547-06123.

01547-0612B

$1.49

10

BOLT | MODEL K7/K8/K9

01547-0612B

$1.49
