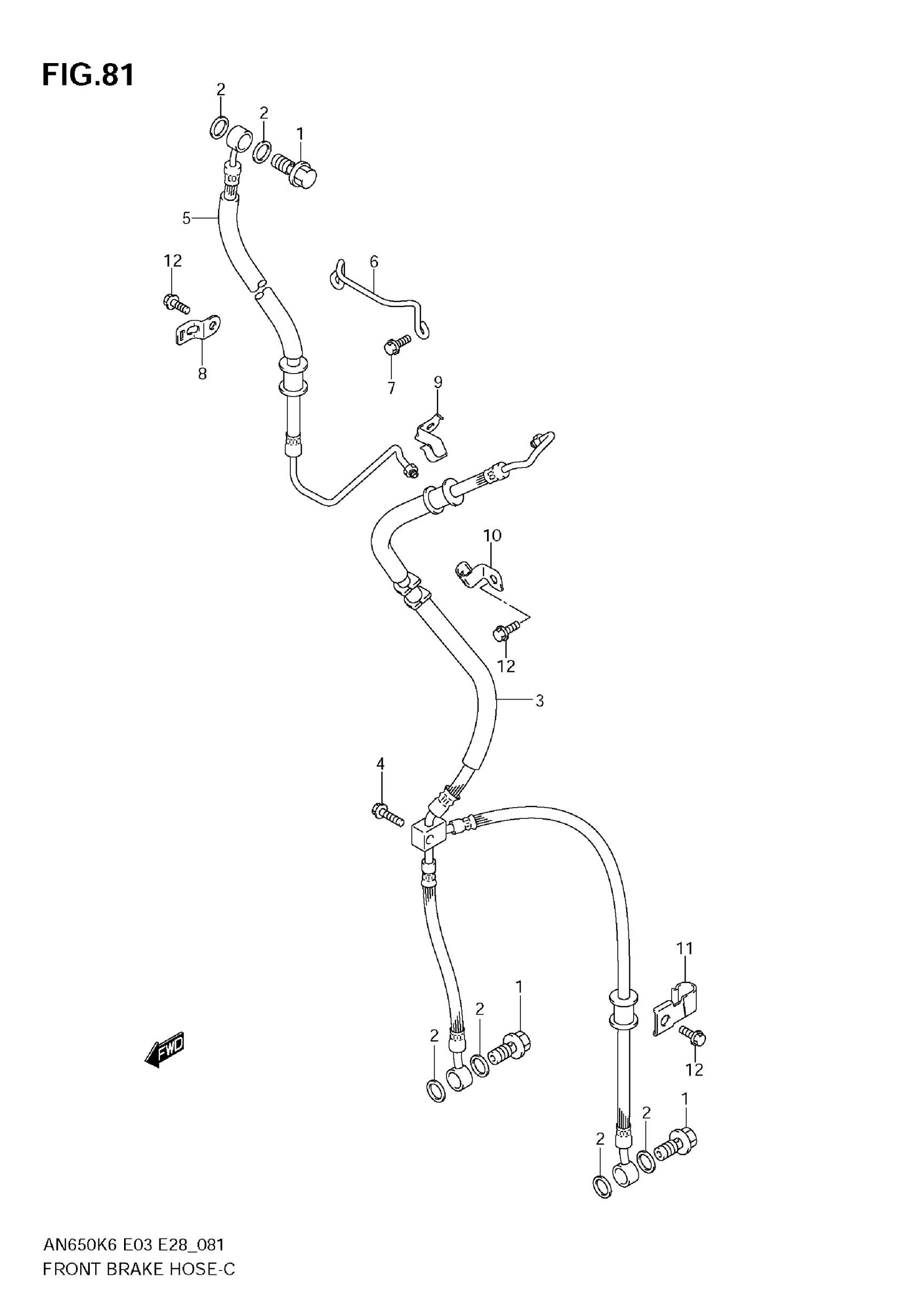

Suzuki AN650 (2009) FRONT BRAKE HOSE (AN650AK6/AK7/AK8/AK9) Diagram

#

Description

Price

1

BOLT (10X1.25X22)

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE This part replaces 59400-10G01.

59400-10G02

$207.37

4

BOLT, FINAL GEAR CASE COVER | MODEL K6 This part replaces 01547-06253.

01547-0625B

$2.45

4

BOLT, HOSE | MODEL K7/K8/K9

01547-0625B

$2.45

5

HOSE, FRONT BRAKE NO.1

59200-10G01

Unavailable

6

GUIDE, BRAKE HOSE

59541-10G00

Unavailable

7

BOLT | MODEL K6

01550-0612A

$1.97

7

BOLT | MODEL K7/K8/K9

01550-0612B

$2.39

8

PLATE, BRAKE HOSE CLAMP

59262-10G00

Unavailable

9

CLAMP, FR BRAKE HOSE NO.3

59263-10G00

Unavailable

10

CLAMP, FR BRAKE HOSE NO.2

59266-35F10

Unavailable

11

CLAMP, FRONT BRAKE HOSE LH

59268-10G00

Unavailable

12

BOLT | MODEL K6 This part replaces 01547-06123.

01547-0612B

$1.49

12

BOLT | MODEL K7/K8/K9

01547-0612B

$1.49
